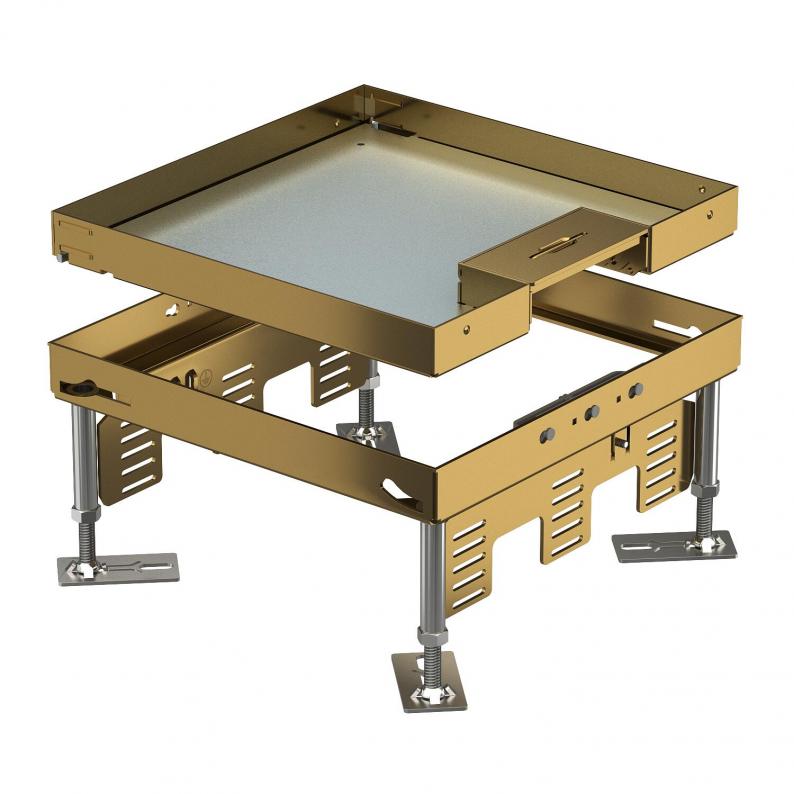

Height-adjustable cassette with cord outlet, RKSN, brass
Type RKSN2 9 MS 25
Item no. 7409214
EAN 4012195867180
Item no. / Type
Floor height, min.
Floor height, max.
Floor covering thickness
Dimension h
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette of nominal size 9 with cord outlet, for the installation of accessories in dry-cleaned floors indoors.
For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 6 Modul 45® devices.
For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 6 Modul 45® devices.
Technical data

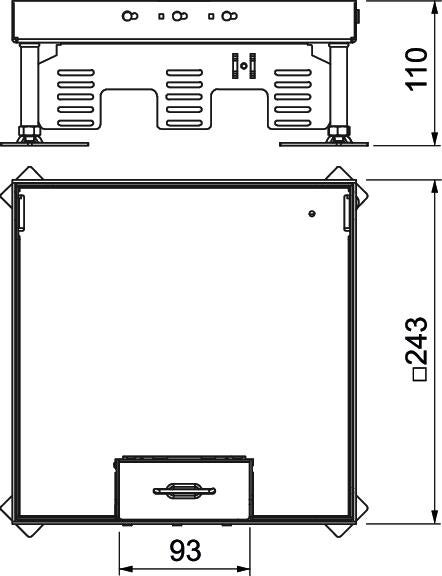

Dimensions
| Length | 243 mm |
|---|---|
| Width | 243 mm |
| Dimension h | 110 mm |
Technical data
| Floor height, min. | 110 mm |
|---|---|
| Floor height, max. | 155 mm |
| Floor covering thickness | 25 mm |
| Height-adjustment range, min. | 110 mm |
| Height-adjustment range, max. | 155 mm |
| Number of installable devices | 12 |
| Decouplable | no |
| Length of installation dimensions | 244 mm |
| Wide installation dimensions | 244 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 3 |
| Installation depth | 110 mm |
| Cable outlet version | Swivellable cord outlet |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | 9 |
| Approvals | VDE |
| Nominal size | 350 mm |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Cover version | Square |
| ROHS-conformant | Exempt |
| Dimension | 243x243mm |
| Material | Brass |
| Product series | RKSN |
Environmental Data
14,5135 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 14,5135 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 14,5135 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
UT4 45 4
7408727
Smallest selling unit: 1 piece
1piece
piece
MTU 3
7407840
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400513
Mounting lid 350, nominal size 9Type
DUG 350-3 9
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Floor height, min.
Floor height, max.
Floor covering thickness
Cable outlet version
Nominal size for device installation units
Dimension h
Item no.
RKSN2 9 MS 20
105
150
20
Swivellable cord outlet
9
105
7409212
RKSN2 9 MS 25
110
155
25
Swivellable cord outlet
9
110
7409214
Floor height, min.
Floor height, max.
Floor covering thickness
Dimension h
RKSN2 9 MS 20
Item no.
7409212
Floor height, min.
105
Floor height, max.
150
Floor covering thickness
20
Cable outlet version
Swivellable cord outlet
Nominal size for device installation units
9
Dimension h
105
RKSN2 9 MS 25
Item no.
7409214
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
25
Cable outlet version
Swivellable cord outlet
Nominal size for device installation units
9
Dimension h
110
