GAD design device installation trunking

Type GAD UEL

Item no. 6115775

EAN 4012195914075

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6115775 / GAD UEL

Length

2000 mm

Smallest selling unit: 2 m

Description

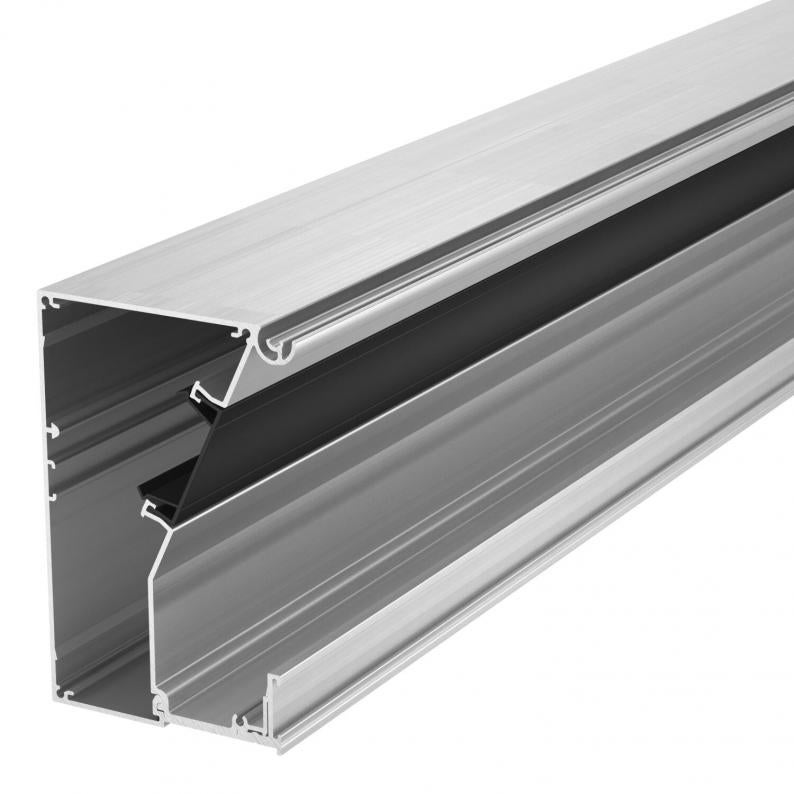

Base to create design device installation trunking of the GAD series. 45 mm system opening for acceptance of Modul 45 switch and connection devices and appropriate PVC and aluminium covers of the Rapid 45 series. The trunking base can be completed with trunking covers in the "Swing", "Soft" or "Style" design. The GAD OTA cover adapters are essential and must be planned on the trunking section with a max. spacing of 50 cm. A GAD OTD spacer must be placed between the trunking covers. In the as-delivered state, the 45 mm system is closed off with a black trunking cover.

Technical data

Dimensions

Length	2000 mm
Width	140 mm
Height	114 mm

Technical data

Mounting perforation in base	no
Usable cross-section	5880 mm²
Halogen-free	yes
Number of insertable partitions	1
Cable retaining clip	no
Protective film	yes
Duct connector	no
Symmetrical	no
Rectangular shape	yes
Number of covers	1
Rear panel version (inner side)	Continuous C profile
Cover mounting type	Internal
Cover supplied	yes
Cover width	45 mm
Dimension	114x140x2000
Surface	Anodised
Material	Aluminium
Colour	aluminium
Antibacterial treatment	no
Product series	GAD

Environmental Data

38,4047 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate

CO2 Footprint (GWP) Cradle-to-Gate	38,4047 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	38,4047 kg CO₂e
Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Declared Unit (LCA)	Metres
Declared Unit Quantity (LCA)	1
