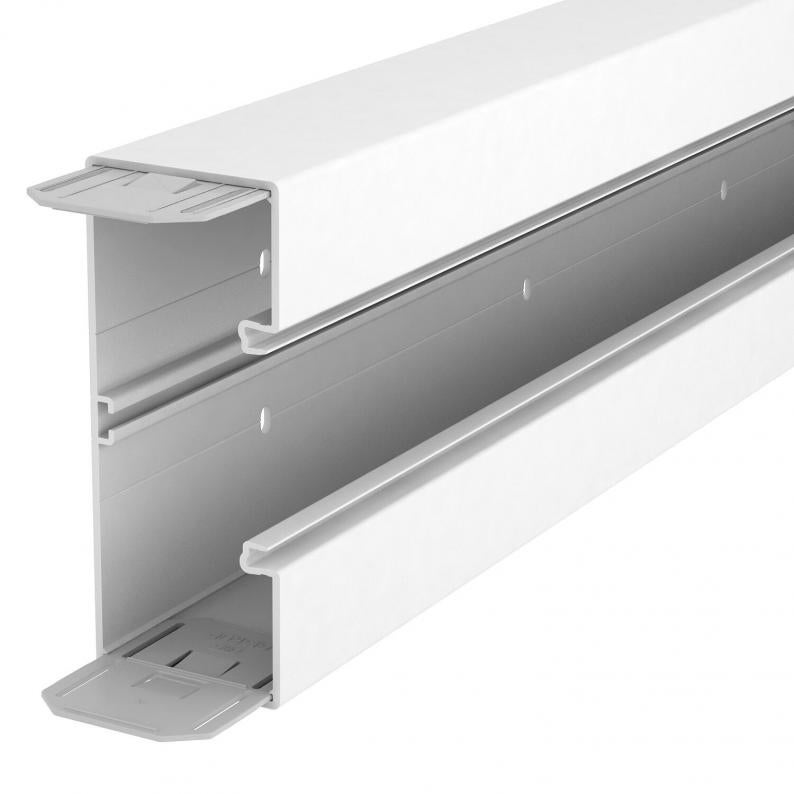

Device installation trunking Rapid 80, trunking width 170, trunking height 70, halogen-free

Device installation trunking Rapid 80, trunking width 170, trunking height 70, halogen-free

Type GKH-70170RW
Item no. 6114300
EAN 4012196451180
Show all variants
Item no. / Type
6114300 / GKH-70170RW
Length
2000 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 2 m

m

Description

GKH device installation trunking made of halogen-free PC/ABS, suitable for direct wall mounting or on wall panels. Fastening takes place using the perforation in the trunking. The GKH device installation trunking possesses a C profile on the floor to accept a plastic partition. All the switch programmes with a support ring and support clamp design as well as Modul 45 installation devices can be installed in the accessory mounting boxes of series 71GD.... The system opening is 76.5 mm. On each trunking length, a coupling pair is pre-assembled on one side.


The cover must be ordered separately.
Covers must be ordered separately.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • GEK-K device installation trunking, trunking depth 70 mm
  • Wall mounting
  • Bracket mounting
  • Track width 80 mm
  • Devices
  • Protective contact socket
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width170 mm
Height70 mm

Technical data

Mounting perforation in baseyes
Usable cross-section10100 mm²
Halogen-freeyes
Number of insertable partitions1
Cable retaining clipno
Protective filmyes
Duct connectoryes
Protection ratingIP30
Symmetricalyes
Rectangular shapeyes
Number of covers1
Rear panel version (inner side)Continuous C profile
Cover mounting typeInternal
Protection rating IK codeIK08
Cover suppliedno
ROHS-conformantyes
Base perforationWith base perforation
Cover width76,5 mm
Permitted temperature range, min.-15 °C
Permitted temperature range, max.90 °C
Dimension70x170x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesRapid 80®

Environmental Data

8,7003 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate8,7003 kg CO2e / 1 Meter
CO₂ Footprint (GWP)8,7003 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1
