Device installation trunking Rapid 80, trunking width 130, trunking height 70, halogen-free

Device installation trunking Rapid 80, trunking width 130, trunking height 70, halogen-free

Type GKH-70130RW
Item no. 6114200
EAN 4012196450824
Show all variants
Item no. / Type
6114200 / GKH-70130RW
Length
2000 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 2 m

m

Description

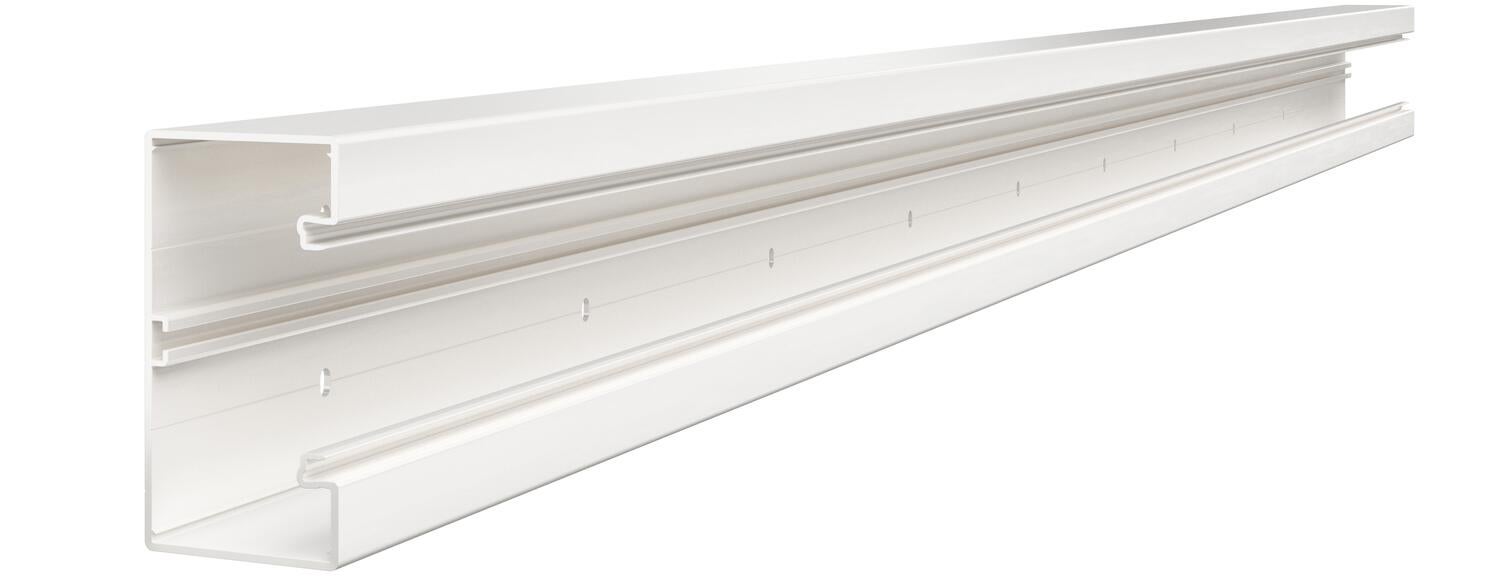

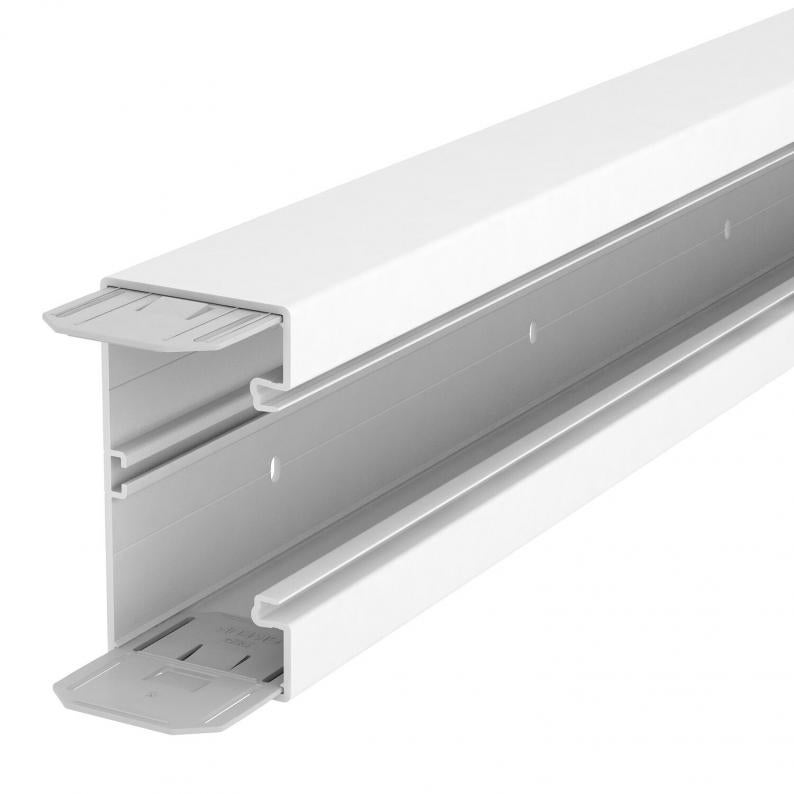

GKH device installation trunking made of halogen-free PC/ABS, suitable for direct wall mounting or on wall brackets. Fastening takes place using the perforation in the trunking. The GKH device installation trunking possesses a C profile on the floor to accept a plastic partition. All the switch programmes with a support ring and support clamp design as well as Modul 45 installation devices can be installed in the accessory mounting boxes of series 71GD.... The system opening is 76.5 mm. On each trunking length, a coupling pair is pre-assembled on one side.

The cover must be ordered separately.
Covers must be ordered separately.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • GEK-K device installation trunking, trunking depth 70 mm
  • Wall mounting
  • Bracket mounting
  • Track width 80 mm
  • Devices
  • Protective contact socket
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

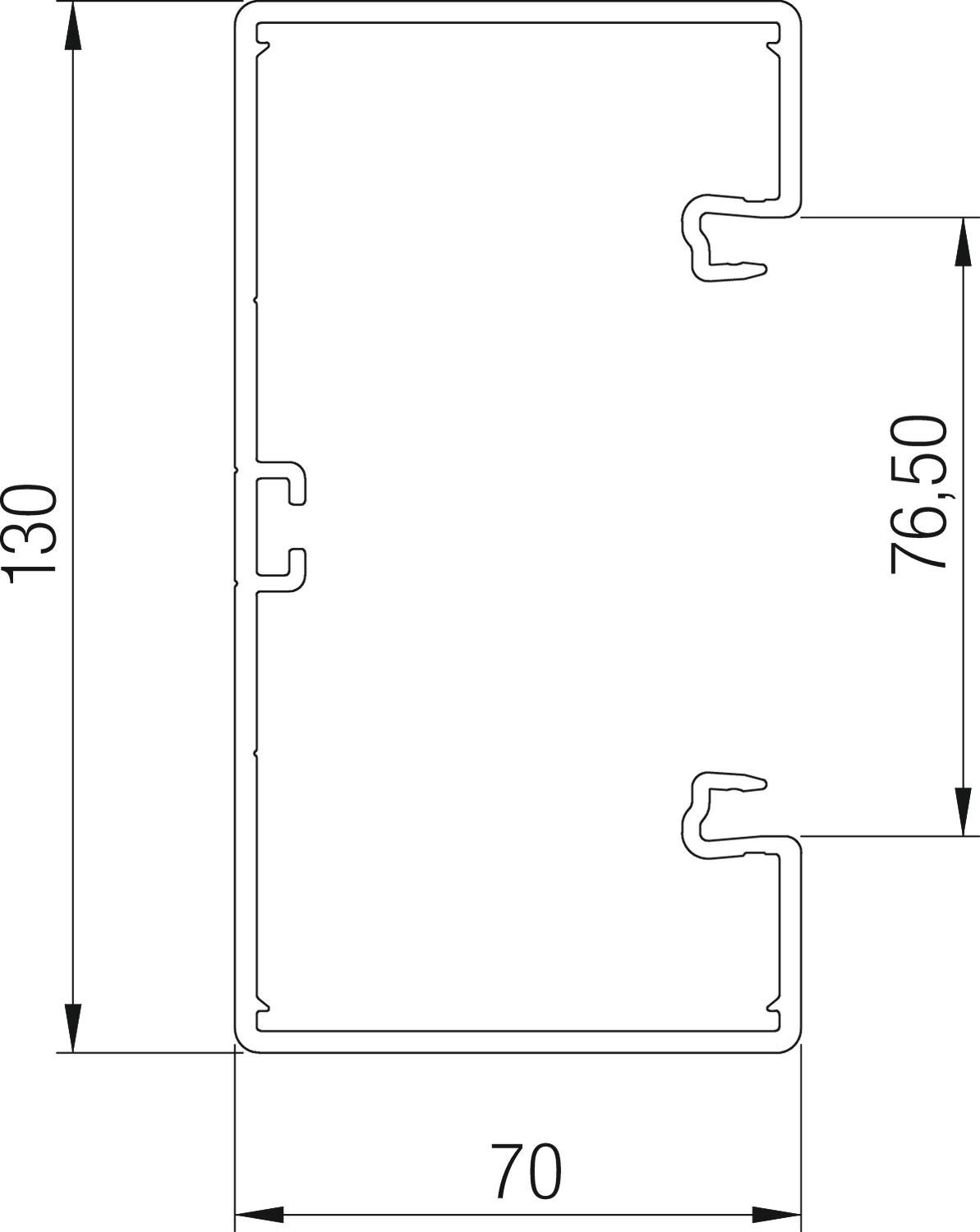

Dimensions

Length2000 mm
Width130 mm
Height70 mm

Technical data

Mounting perforation in baseyes
Usable cross-section7600 mm²
Halogen-freeyes
Number of insertable partitions1
Cable retaining clipno
Protective filmyes
Duct connectoryes
Protection ratingIP30
Symmetricalyes
Rectangular shapeyes
Number of covers1
Rear panel version (inner side)Continuous C profile
Cover mounting typeInternal
Protection rating IK codeIK08
Cover suppliedno
ROHS-conformantyes
Base perforationWith base perforation
Cover width76,5 mm
Permitted temperature range, min.-15 °C
Permitted temperature range, max.90 °C
Dimension70x130x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesRapid 80®

Environmental Data

7,2213 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate7,2213 kg CO2e / 1 Meter
CO₂ Footprint (GWP)7,2213 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Type
71GD6

Smallest selling unit: 5 piece

piece

Type
71GD7-2

Smallest selling unit: 2 piece

piece

Item no. 6288790

7ZE strain relief
Type
7ZE

Smallest selling unit: 50 piece

piece
