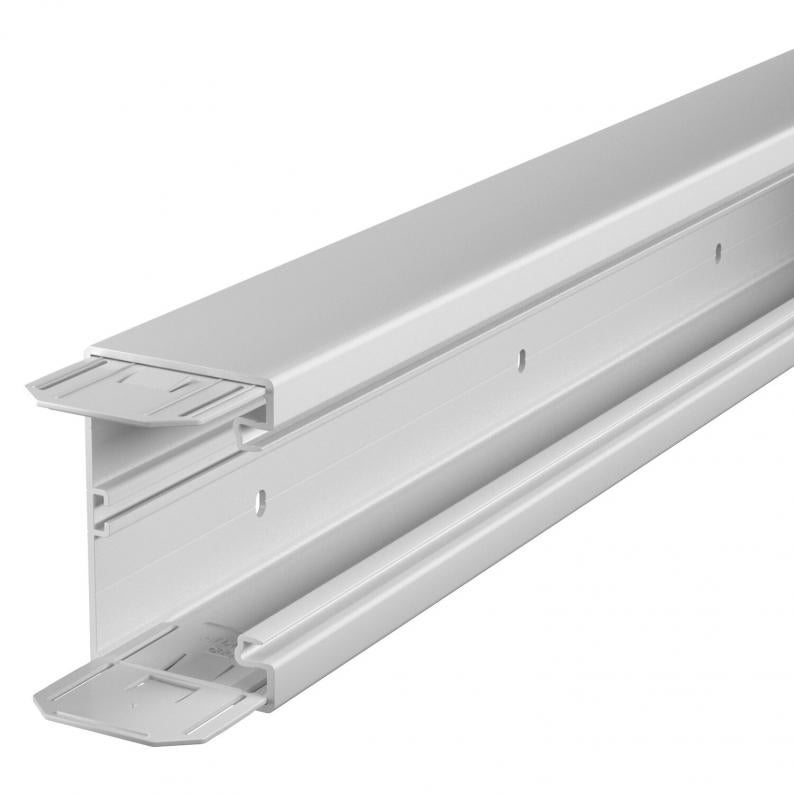

Device installation trunking Rapid 80, trunking width 110, trunking height 70

Device installation trunking Rapid 80, trunking width 110, trunking height 70

Type GK-70110LGR
Item no. 6274302
EAN 4012195656340
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

GK device installation trunking, made of lead-free PVC, suitable for installing directly on the wall or on wall panels. Fastening takes place using the perforation in the trunking. The GK device installation trunking possesses a C profile on the floor to accept a plastic partition. All the switch programmes with a support ring and support clamp design as well as Modul 45 installation devices can be installed in the accessory mounting boxes of series 71GD.... The system opening is 76.5 mm. On each trunking length, a coupling pair is pre-assembled on one side. The cover must be ordered separately.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • GEK-K device installation trunking, trunking depth 70 mm
  • Wall mounting
  • Bracket mounting
  • Track width 80 mm
  • Devices
  • Protective contact socket
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width110 mm
Height70 mm

Technical data

Mounting perforation in baseyes
Usable cross-section6400 mm²
Halogen-freeno
Number of insertable partitions1
Cable retaining clipno
Protective filmyes
Duct connectoryes
Protection ratingIP30
Symmetricalyes
Rectangular shapeyes
Number of covers1
Rear panel version (inner side)Continuous C profile
Cover mounting typeInternal
Protection rating IK codeIK08
Cover suppliedno
ROHS-conformantyes
Base perforationWith base perforation
Cover width76,5 mm
Permitted temperature range, min.-15 °C
Permitted temperature range, max.60 °C
Dimension70x110x2000
MaterialPolyvinylchloride
ColourLight grey; RAL 7035
Antibacterial treatmentno
Product seriesRapid 80®

Environmental Data

2,6864 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate2,6864 kg CO2e / 1 Meter
CO₂ Footprint (GWP)2,6864 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Type
71GD6

Smallest selling unit: 5 piece

piece

Type
71GD7-2

Smallest selling unit: 2 piece

piece

Item no. 6288790

7ZE strain relief
Type
7ZE

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
GK-70110RW
Item no.
6274300
Length
2000
Colour
Pure white; RAL 9010
GK-70110CW
Item no.
6274301
Length
2000
Colour
Cream; RAL 9001
GK-70110LGR
Item no.
6274302
Length
2000
Colour
Light grey; RAL 7035
GK-70110GR
Item no.
6274306
Length
2000
Colour
Stone grey; RAL 7030
