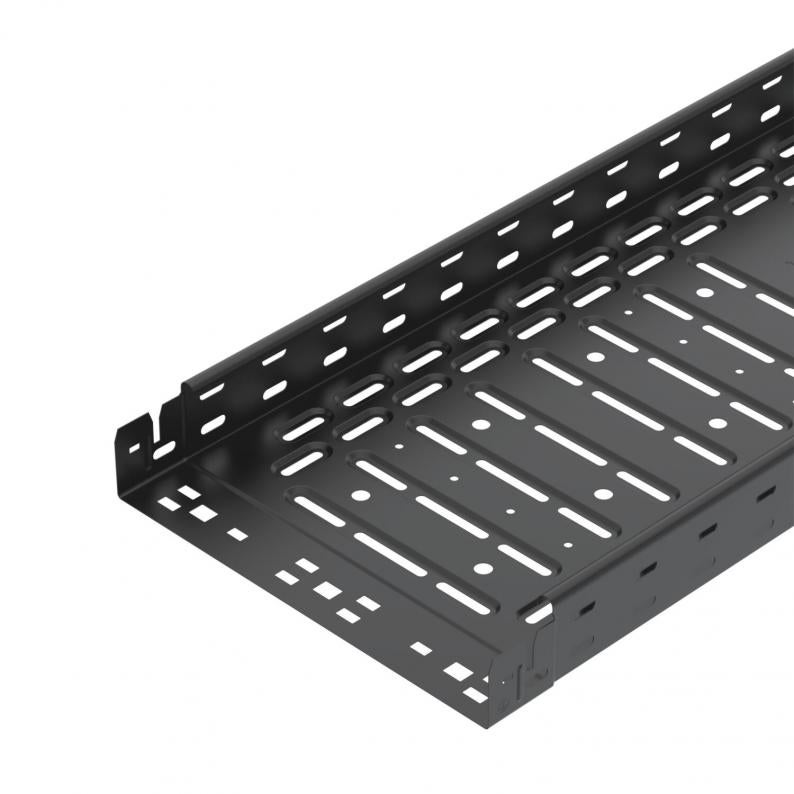

Cable tray RKS-Magic® 60 FS black
Type RKSM 630 FSK SW
|Item no. 6048265
|EAN 4012196556052
Item no. / Type
Length
Width
Height
Plate thickness
Smallest selling unit: 6 m
6m
m
Description
Cable tray with integrated quick-fastening system. Strip-galvanised surface, visible areas powder-coated in jet black (RAL 9005). Continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components. With 11 mm perforation in the base for direct threaded rod suspension. Usable length 3,000 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data
Dimensions
| Length | 3050 mm |
|---|---|
| Width | 300 mm |
| Height | 60 mm |
| Dimension y | 250 mm |
| Dimension B | 300 mm |
| Dimension x | 200 mm |
| Dimension W | 300 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 178 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,75 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 17800 mm² |
| With cover | no |
| Dimension | 60 x 300 |
| ROHS-conformant | yes |
| Dimension | 60x300x3050 |
| Surface | PES135 - Polyester |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
| Load test type according to IEC 61537 | Type II |
| Usable length | 3000 mm |
| Type of connector, cable support system | Click fastening |
| Product series | BlackLine, RKSM Series |
Loads
| Support spacing 1.0 m | 1,2 kN/m |
|---|---|
| Support spacing 1.5 m | 1 kN/m |
| Support spacing 2.0 m | 0,55 kN/m |
| Support spacing 2.5 m | 0,4 kN/m |
Environmental Data
5,7675 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Expiry date EPD | 10.07.2029 |
|---|---|
| Declaration number EPD | EPD-KTO-17.0 |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,7675 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 5,7675 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Surface
Material
Colour
Item no.
RKSM 620 FSK SW
3050
200
60
yes
0,75
PES135 - Polyester
Steel
Jet black; RAL 9005
6048253
RKSM 630 FSK SW
3050
300
60
yes
0,75
PES135 - Polyester
Steel
Jet black; RAL 9005
6048265
RKSM 640 FSK SW
3050
400
60
yes
0,9
PES135 - Polyester
Steel
Jet black; RAL 9005
6048269
RKSM 610 FSK SW
3050
100
60
yes
0,75
PES135 - Polyester
Steel
Jet black; RAL 9005
6048239
Width
Plate thickness
RKSM 620 FSK SW
Item no.
6048253
Length
3050
Width
200
Height
60
Maintain electrical functions
yes
Plate thickness
0,75
Surface
PES135 - Polyester
Material
Steel
Colour
Jet black; RAL 9005
RKSM 630 FSK SW
Item no.
6048265
Length
3050
Width
300
Height
60
Maintain electrical functions
yes
Plate thickness
0,75
Surface
PES135 - Polyester
Material
Steel
Colour
Jet black; RAL 9005
RKSM 640 FSK SW
Item no.
6048269
Length
3050
Width
400
Height
60
Maintain electrical functions
yes
Plate thickness
0,9
Surface
PES135 - Polyester
Material
Steel
Colour
Jet black; RAL 9005
RKSM 610 FSK SW
Item no.
6048239
Length
3050
Width
100
Height
60
Maintain electrical functions
yes
Plate thickness
0,75
Surface
PES135 - Polyester
Material
Steel
Colour
Jet black; RAL 9005
