Fire protection duct PYROLINE® Con D BSK I120/E90 1000 | 330 | 210 | 185 | 105

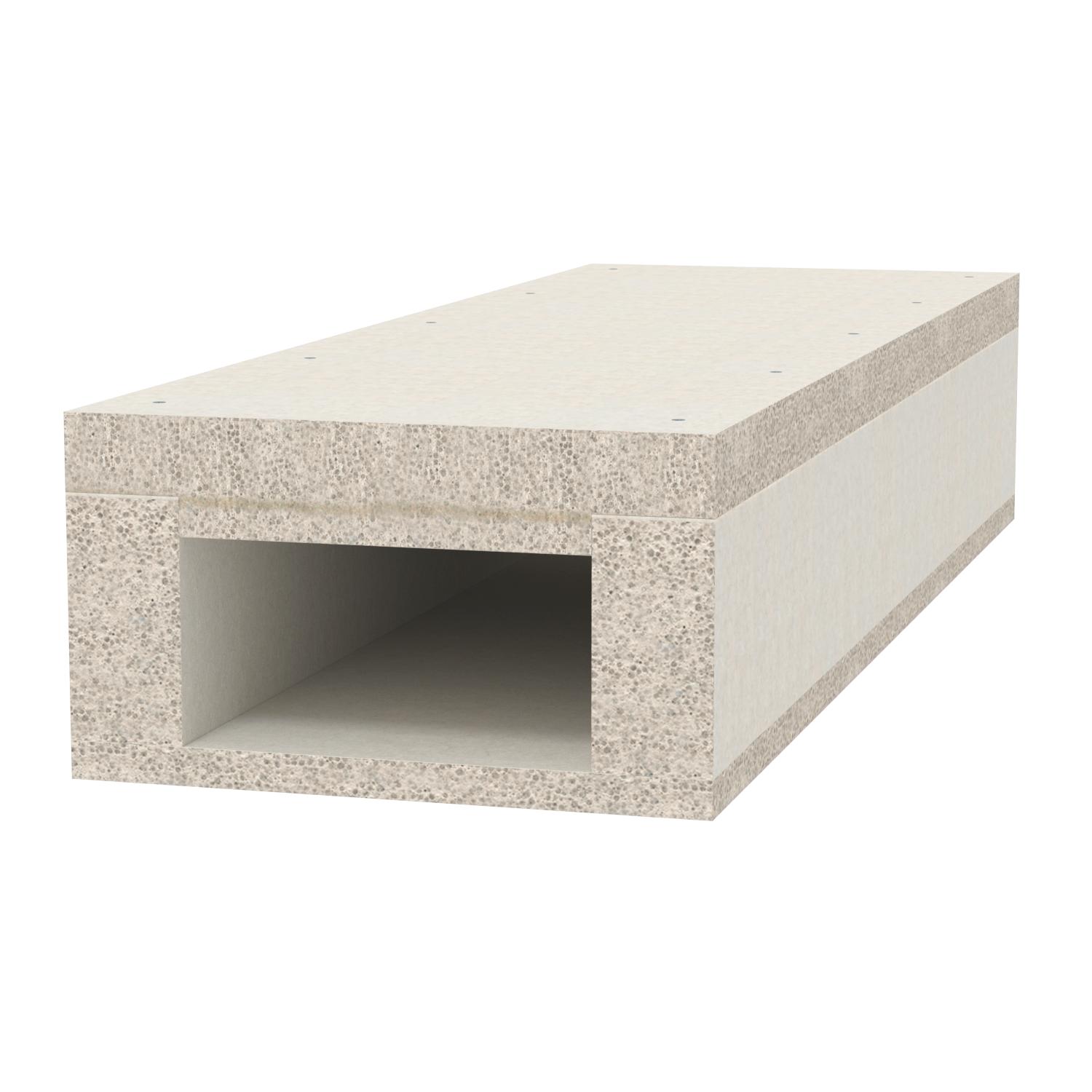

Fire protection duct PYROLINE® Con D BSK I120/E90

Item no. 7215231 | EAN 4012197308322

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I120 as I duct according to DIN 4102 Part 11 and classification E90 as E duct according to DIN 4102 Part 12.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strips.

Technical data

Technical data

Colour	Grey
Cover fastening	Screw

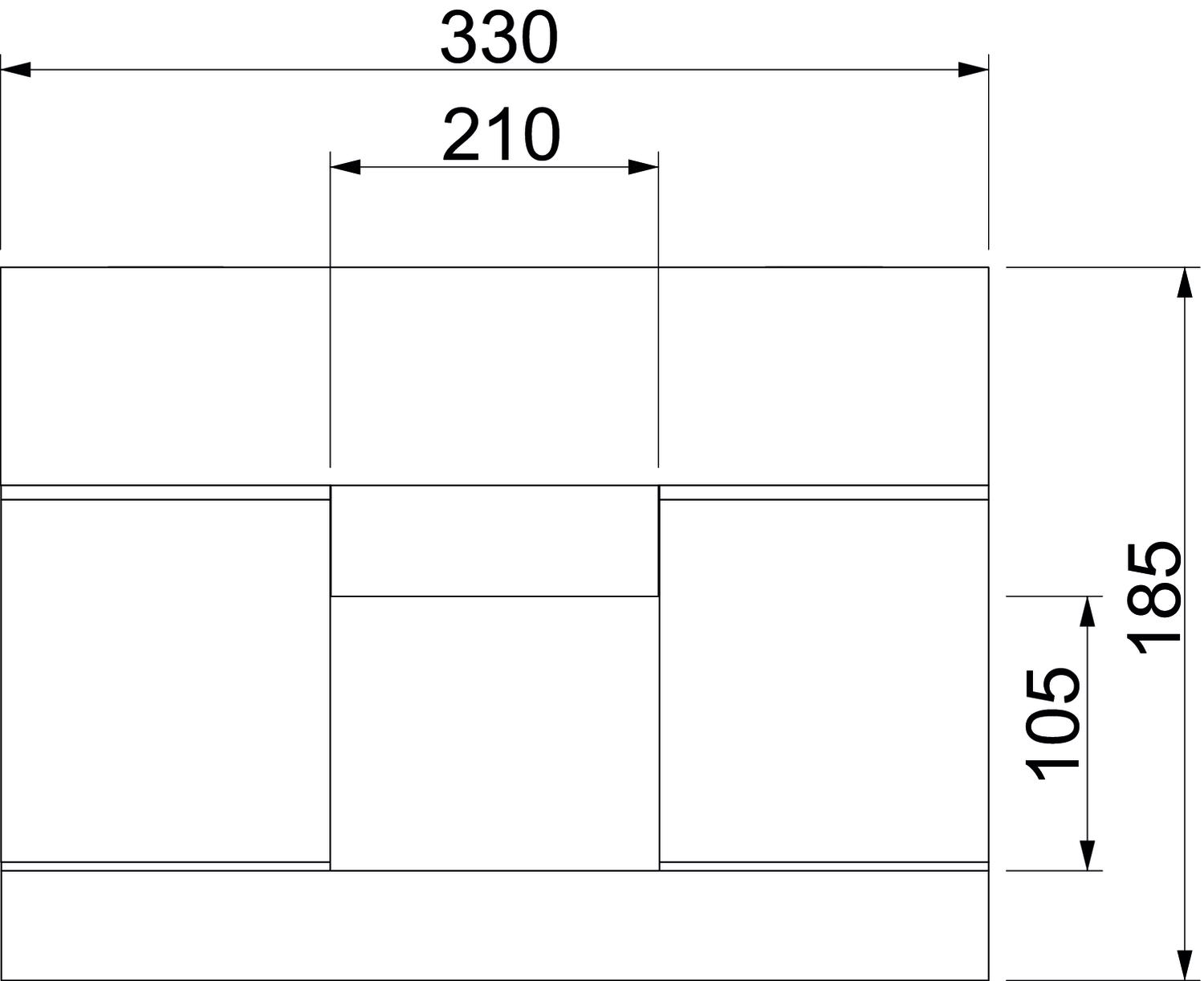

Dimension	1000x105x210
Dimension b	210 mm
Dimension B	330 mm
Dimension h	105 mm
Dimension H	185 mm
Fire resistance class E − function maintenance	90
Fire resistance class I − installation duct	120
Height	185 mm

Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	3
Partitions possible	yes
Usable cross-section	22050 mm²
Width	330 mm
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.
BSKD12-K0506	1000 mm	180 mm	60 mm	130 mm	50 mm	7215210
BSKD12-K0511	1000 mm	230 mm	110 mm	130 mm	50 mm	7215216
BSKD12-K0521	1000 mm	330 mm	210 mm	130 mm	50 mm	7215222
BSKD12-K1021	1000 mm	330 mm	210 mm	185 mm	105 mm	7215231

Accessories

System accessories

Products	Types	Item no.

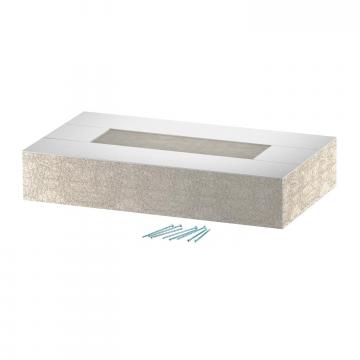

End piece for PYROLINE® Con D BSKD12-K1021 fire protection duct	BSKD12-E1021	7215277
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464
Doubler for PYROLINE® Con fire protection duct	KAD-10040	7215462
Fire protection duct mortar	KTM	7215500

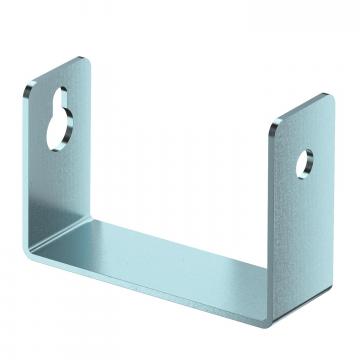

Separating bracket for wall mounting	BSKD-W1021	7215327

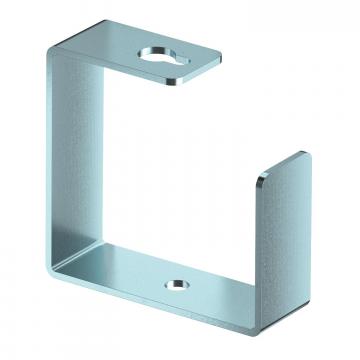

Separating clamp for ceiling mounting	BSKD-B1021	7215371
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm	LHS 60	7215292
Identification plate	KS-K DE	7214734
Identification plate for maintenance of electrical function	KS-E DE	7205423
