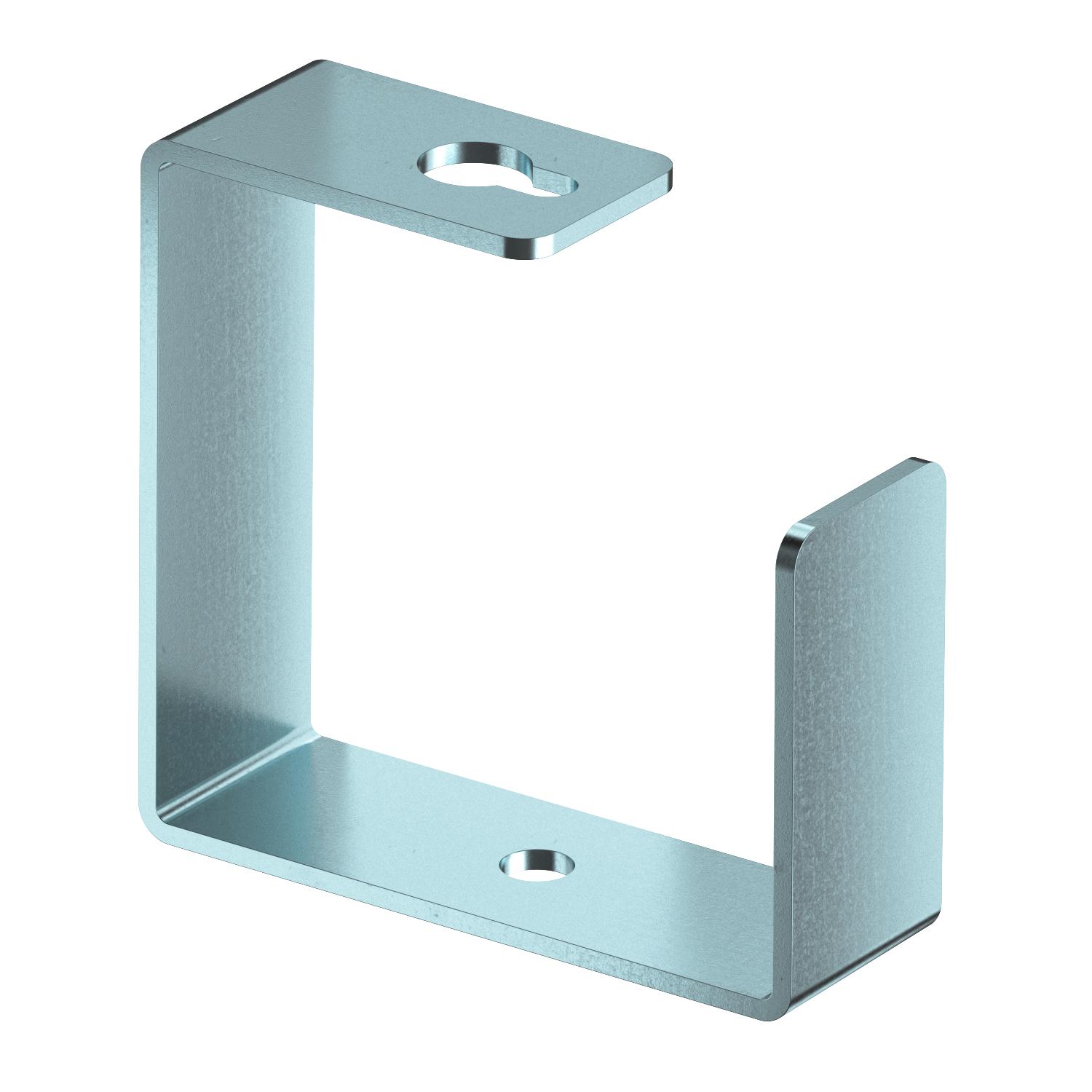

Separating clamp for ceiling mounting

Item no. 7215371 | EAN 4012197333607

Product description
Product description
Separating bracket as installation aid for cable routing when mounting the PYROLINE® fire protection duct on the ceiling, type BSKD09-K1021 and type BSKD12-K1021 Mounting of the clamp directly on the fastening anchors of the fire protection duct.
  • Fire protection duct for ceiling mounting
  • Fire resistance class I90
  • Function maintenance class E30
  • Fire resistance class I120
  • Function maintenance class E90
Technical data

Technical data

Colour zinc

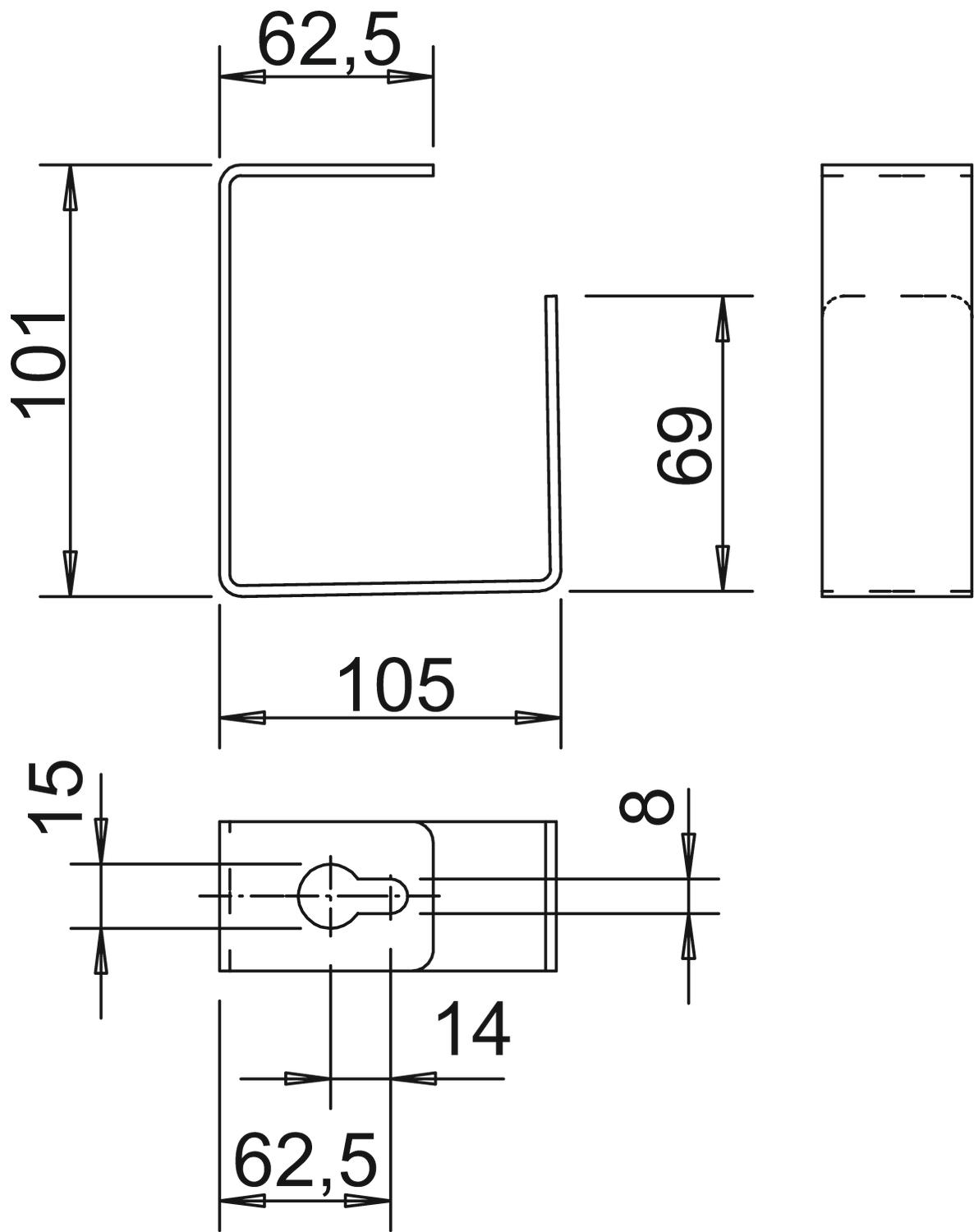

Dimension 105x101x35
Dimension A 52,5 mm
Dimension B 105 mm
Dimension b 62,5 mm
Dimension H 101 mm
Dimension h 69 mm
Duct height, internal 105 mm
Duct width, internal 210 mm
Fastening type Screw-on
Material Steel
Surface Strip galvanized
All types

All types

Types Dimension A Dimension B Dimension b Dimension H Dimension h Item no.
BSKD-B0511 27.5 mm 55 mm 37.5 mm 46 mm 18 mm 7215356
BSKD-B0521 52.5 mm 105 mm 62.5 mm 46 mm 18 mm 7215362
BSKD-B1021 52.5 mm 105 mm 62.5 mm 101 mm 69 mm 7215371
Downloads

Download

Download
Download

REACH Declaration of conformity BSKD-B1021 / 7215371 , 0.12MB , pdf
Download
RoHS Declaration of conformity BSKD-B1021 / 7215371 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
