End piece for PYROLINE® Con D BSKD12-K1021 fire protection duct
Item no. 7215277 | EAN 4012197308346
- Product description
-

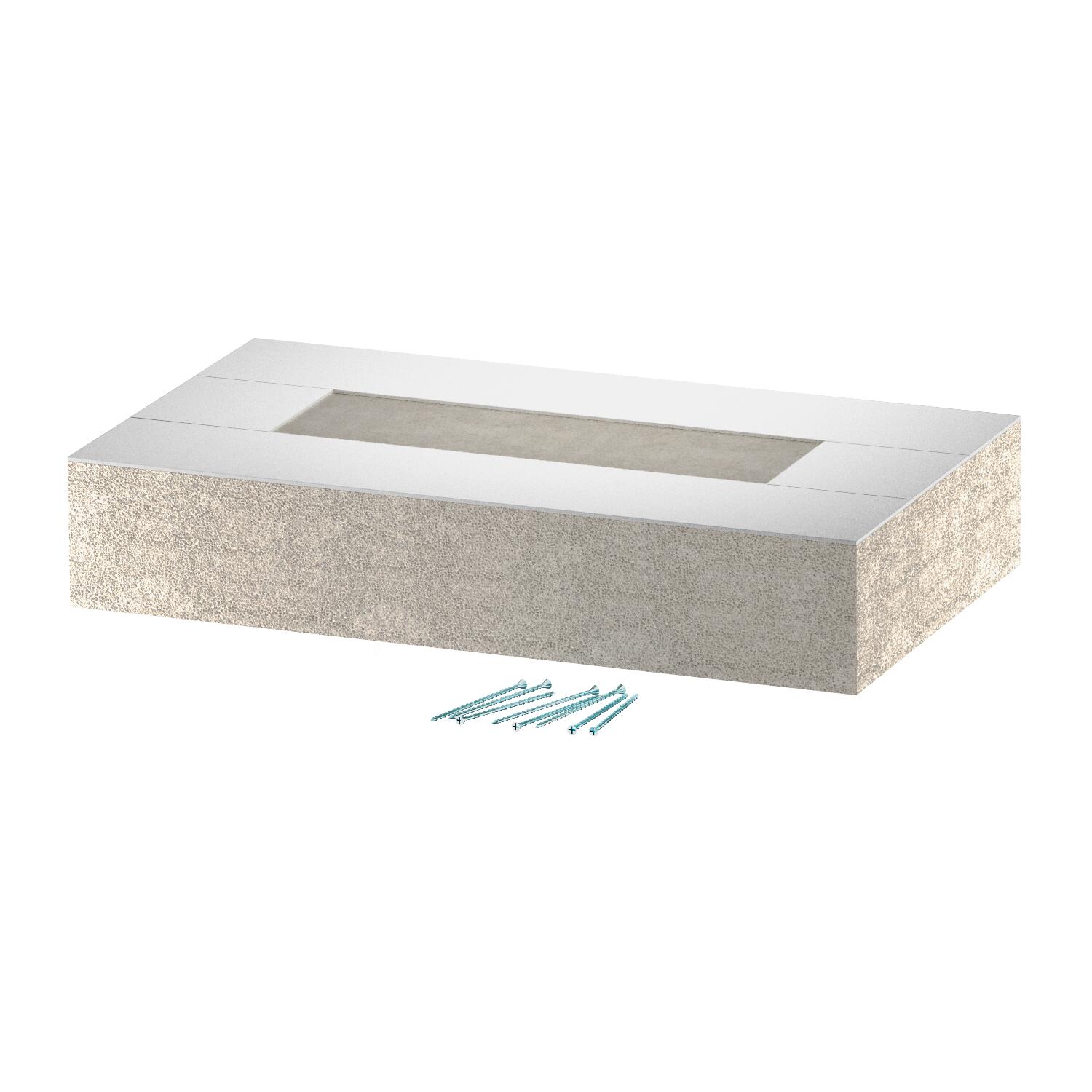

Product descriptionEnd piece for PYROLINE® Con D fire protection duct, type BSKD12-K1021, consisting of fibreglass lightweight concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and stuck-on sealing strip.
-
- Technical data
-
Technical data

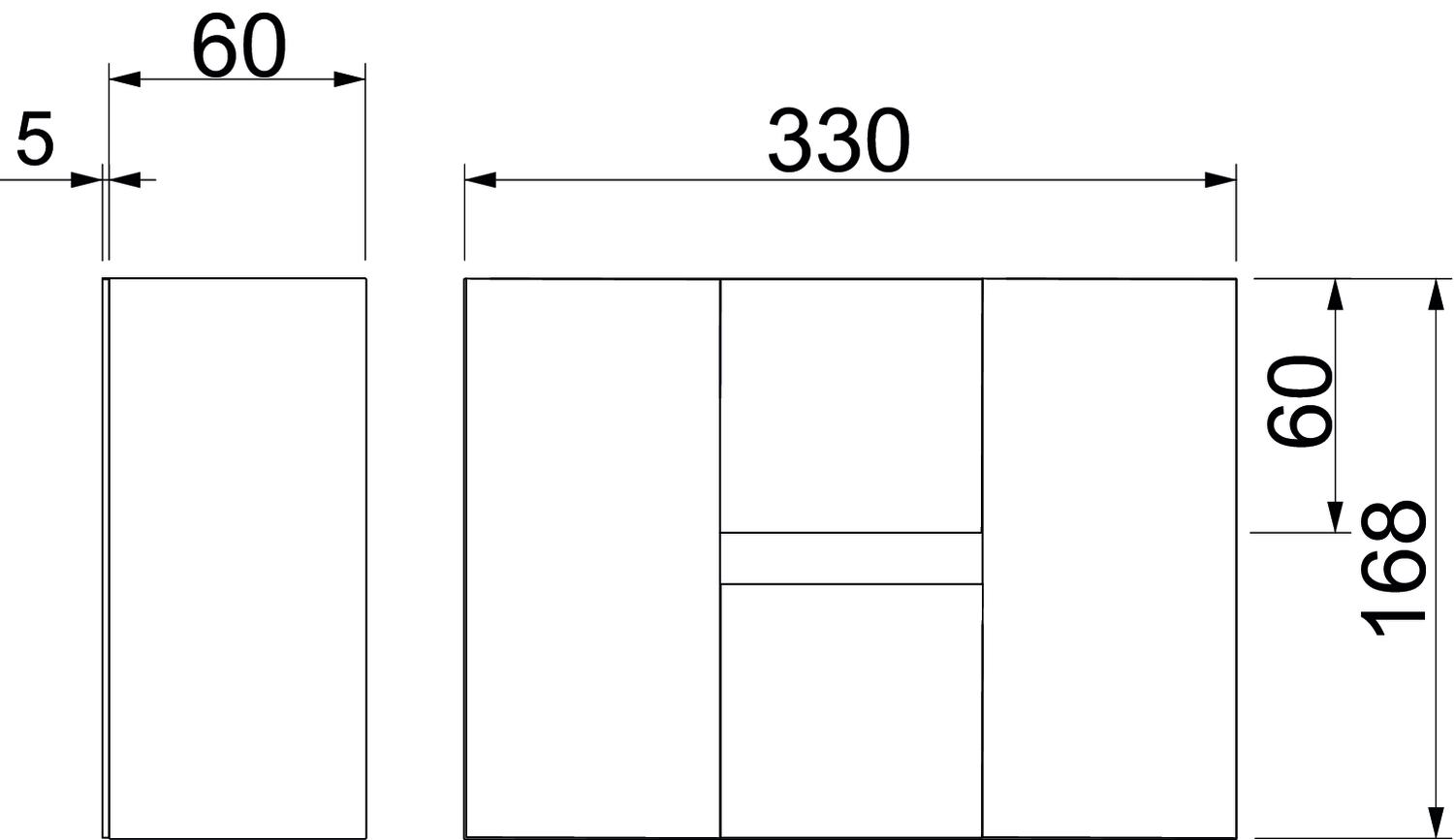

Colour Grey Dimension 105x210 Dimension A 60 mm Dimension B 330 mm Dimension H 188 mm Dimension L 60 mm Fire resistance class E − function maintenance 90 Fire resistance class I − installation duct 120 Height 168 mm Jacketing Without Length 60 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 3 Version for Left/right Width 330 mm - All types
- Downloads
-
Data sheet BSKD12-E1021 / 7215277 , 0.22MB , pdfSafety data sheet BSKD12-E1021 / 7215277 , 2.00MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
