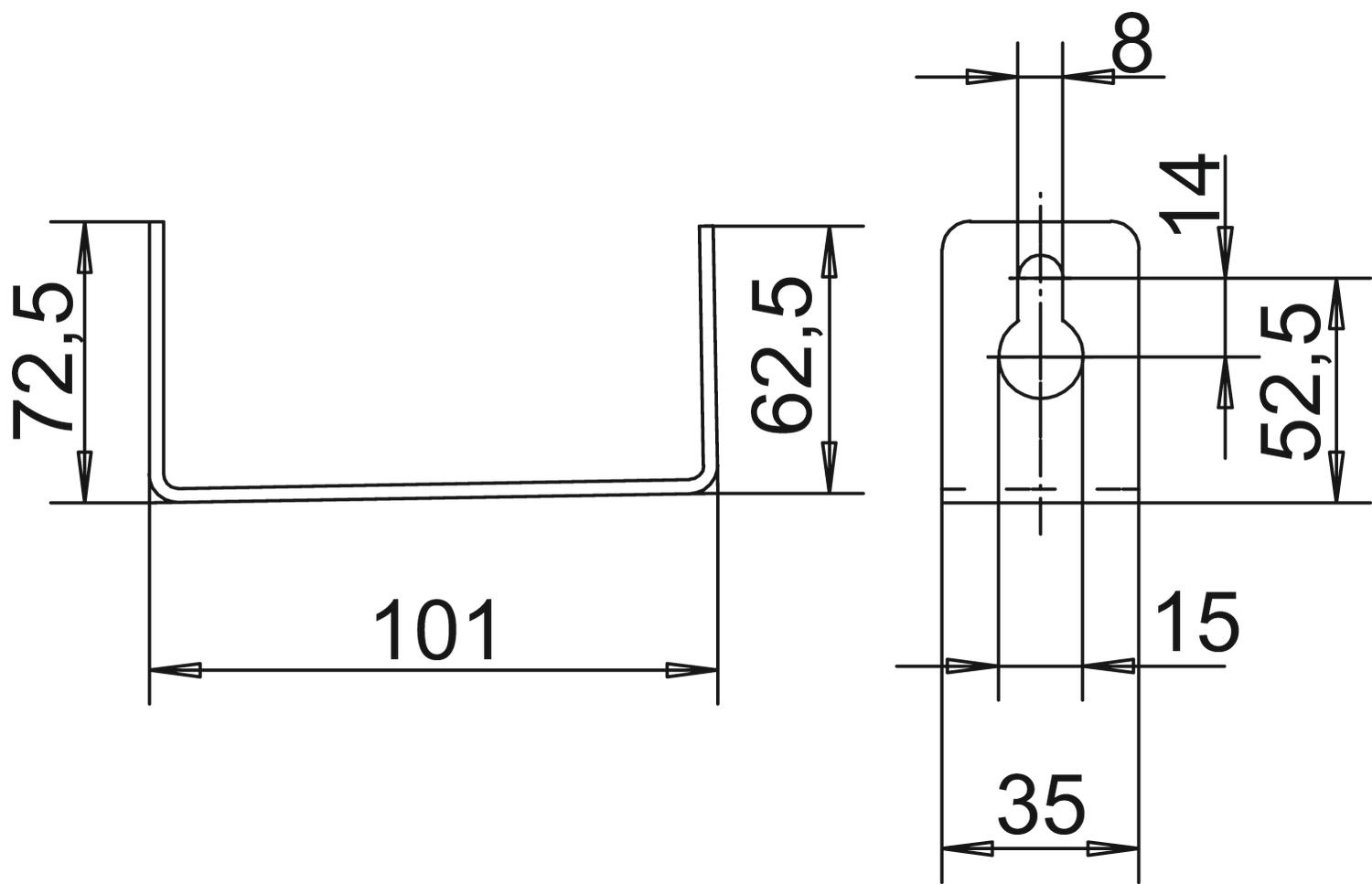

Separating bracket for wall mounting 52.5 | 101 | 62.5 | 72.5
morepic-1 morepic-2

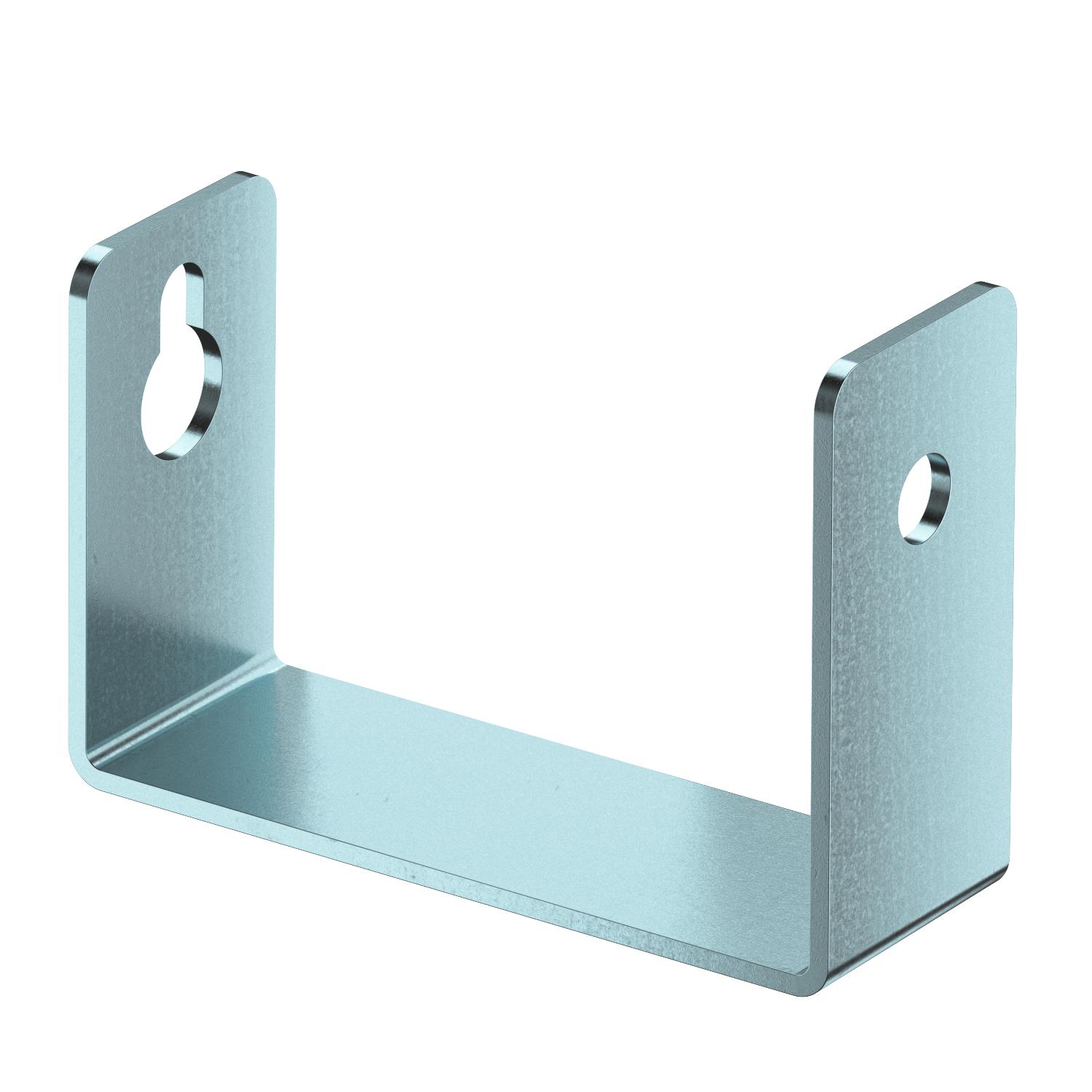

Separating bracket for wall mounting

Item no. 7215327 | EAN 4012197333591

Product description
Product description
Separating bracket as installation aid for cable routing when mounting the PYROLINE® fire protection duct on the wall, type BSKD09-K1021 and type BSKD12-K1021 Mounting of the bracket directly on the fastening anchors of the fire protection duct.
  • Fire protection duct for wall mounting
  • Fire resistance class I90
  • Function maintenance class E30
  • Fire resistance class I120
  • Function maintenance class E90
Technical data

Technical data

Colour zinc
Dimension 101x72,5x35
Dimension A 52,5 mm
Dimension B 101 mm
Dimension h 72,5 mm
Dimension H 62,5 mm
Duct height, internal 105 mm
Duct width, internal 210 mm
Fastening type Screw-on
Material Steel
Surface Strip galvanized
All types

All types

Types Dimension A Dimension B Dimension H Dimension h Item no.
BSKD-W0511 27.5 mm 46 mm 37.5 mm 22.5 mm 7215312
BSKD-W0521 52.5 mm 46 mm 62.5 mm 72.5 mm 7215318
BSKD-W1021 52.5 mm 101 mm 62.5 mm 72.5 mm 7215327
PLCD-SB0810 25 mm 76 mm 35 mm 20 mm 7215480
PLCD-SB1220 50 mm 116 mm 60 mm 65 mm 7215484
PLCD-SC0810 25 mm 50 mm 35 mm 76 mm 7215490
PLCD-SC1220 50 mm 100 mm 60 mm 116 mm 7215494
