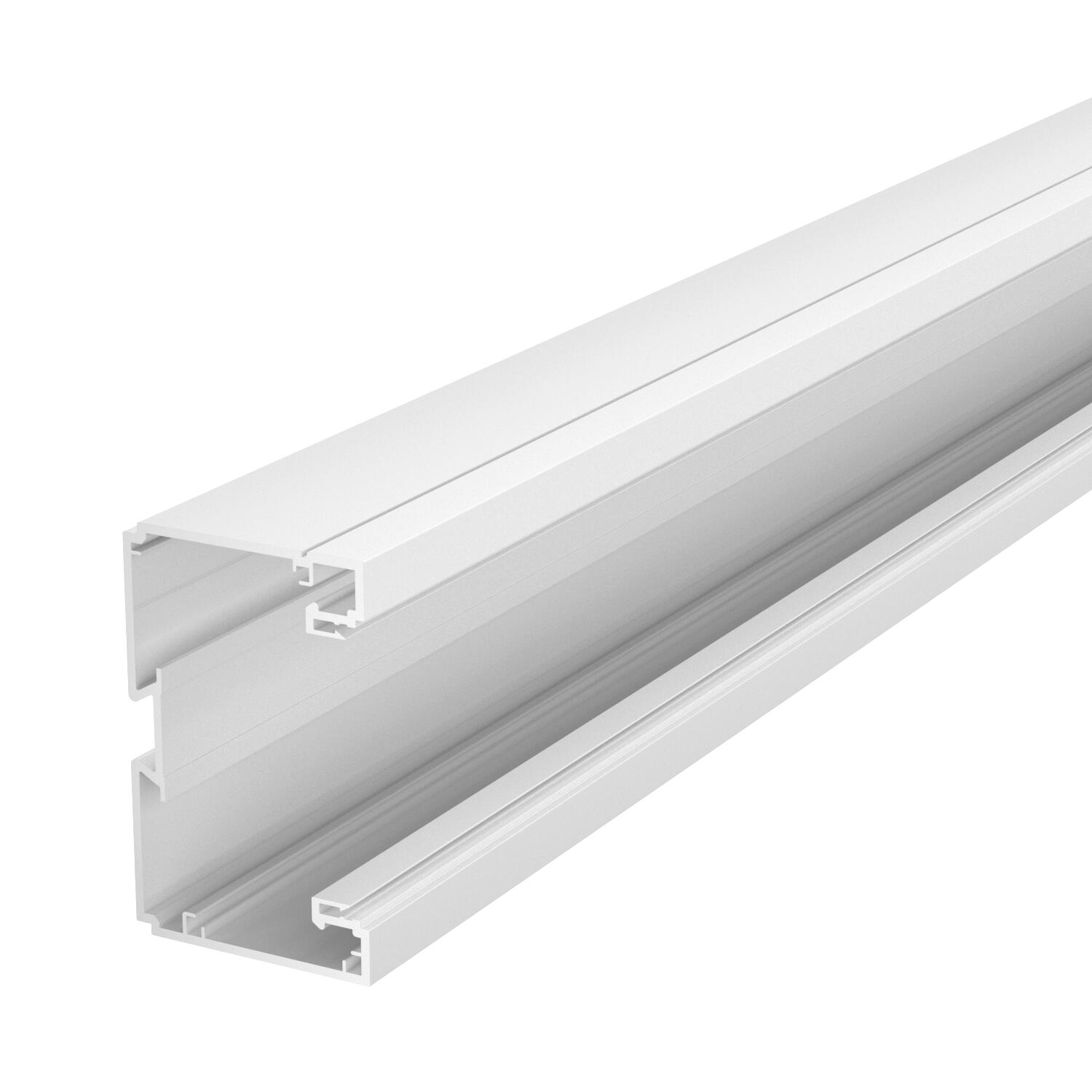

Device installation trunking Signa Base 70110 2000 | Pure white; RAL 9010

Device installation trunking Signa Base 70110

Item no. 6132722 | EAN 4012196717408

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Trunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	2,016 kg CO₂e / 1 Meter
Colour	Pure white; RAL 9010
Cover mounting type	Internal
Cover supplied	no
Cover width	79 mm
Duct connector	yes
Halogen-free	no

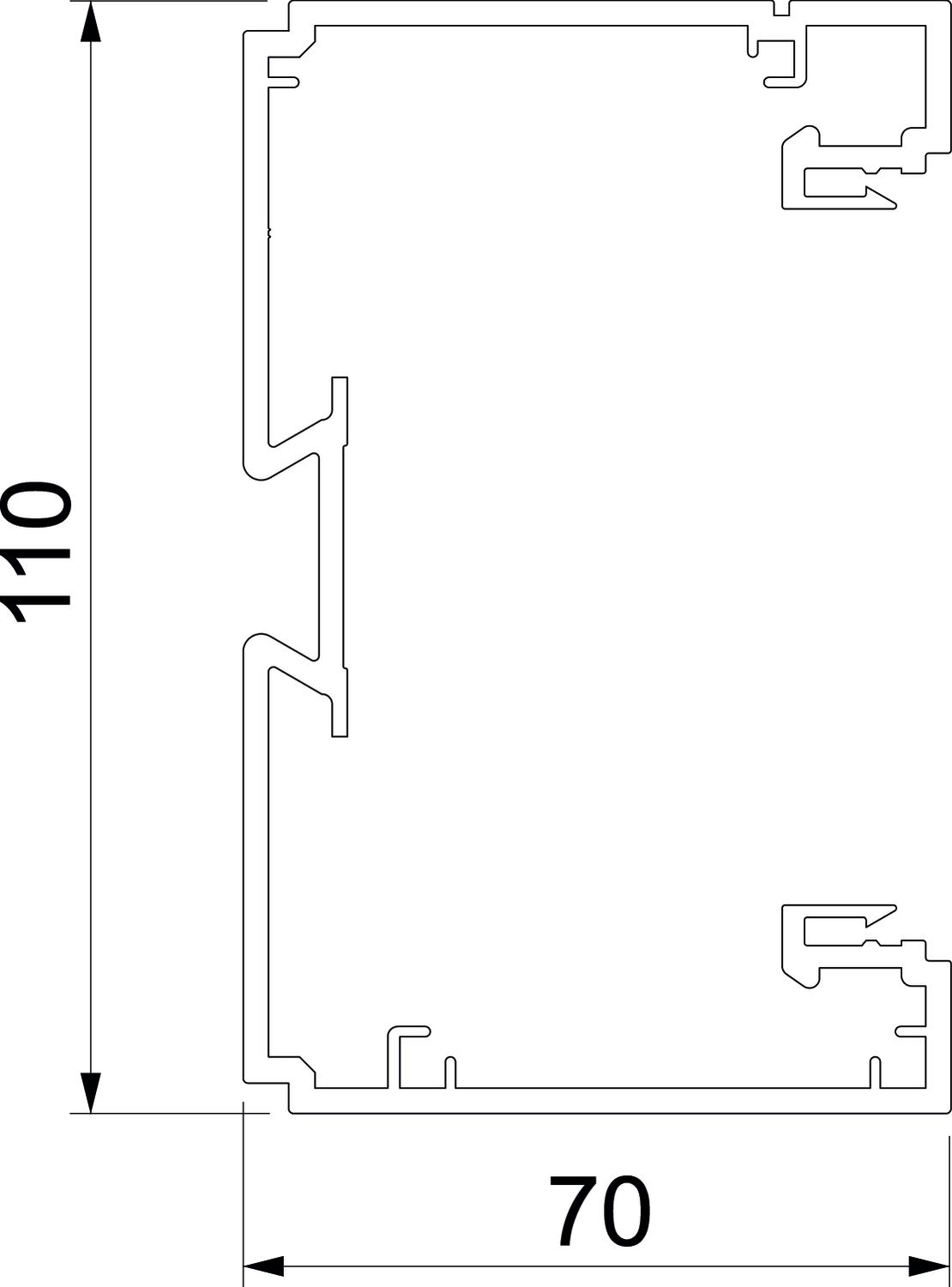

Height	70 mm
Length	2000 mm
Material	Polyvinylchloride
Mounting perforation in base	yes

Number of covers	1
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Protective film	yes
Rear panel version (inner side)	Continuous DIN rail
Rectangular shape	yes
Symmetrical	no
Usable cross-section	6036 mm²
Width	110 mm

All types

All types

Types	Length	Colour	Item no.
BRK 70110 cws	2000 mm	Cream; RAL 9001	6132721
BRK 70110 rws	2000 mm	Pure white; RAL 9010	6132722

Accessories

System accessories

Products	Types	Item no.
Accessory mounting box BRK GD, single	BRK GD gr	6133577
Accessory mounting box BRK GD2CEE, double	BRK GD 2CEE gr	6133579
Cover Signa Base OT 700802	BRK 700802 rws	6132736

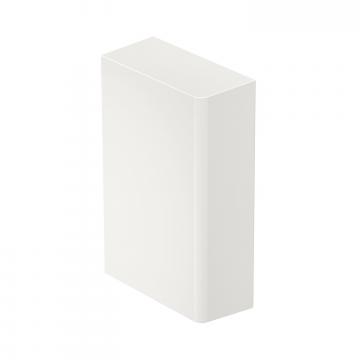

End piece Signa Base ES 70110	BRK ES70110 rws	6132776

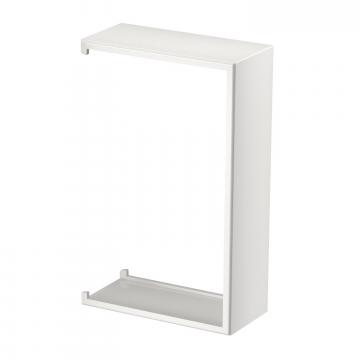

Joint cover Signa Base SSA 70110	BRK SSA70110 rws	6132788
Partition BRK TW	BRK TW	6133610

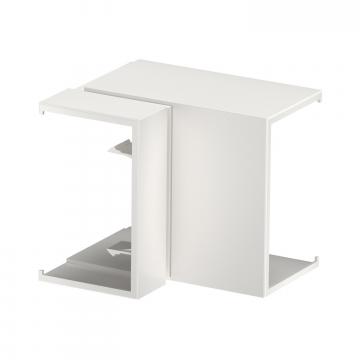

Internal corner Signa Base IE 70110	BRK IE70110 rws	6132751

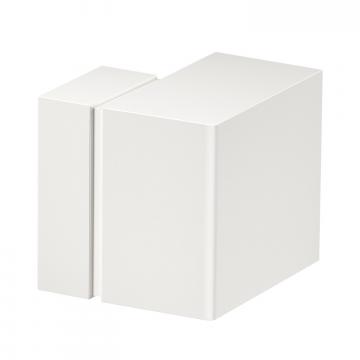

External corner Signa Base AE 70110	BRK AE70110 rws	6132741

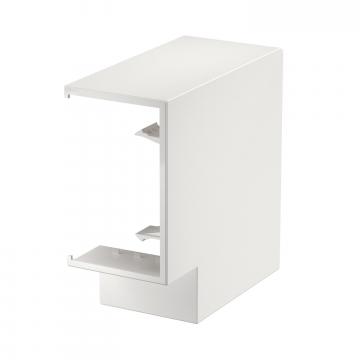

Flat angle Signa Base FW 70110	BRK FW70110 rws	6132763
Cable retaining clip Signa Base HK	SB HK	6132799
Trunking socket BRK, triple	BRK 3STD rws	6121032
Device panels BRK BL CEE	BRK BL CEE rws	6133591
CEE flange BRK CEE FL	BRK CEE FL rws	6121124
Data socket BRK GD UAE	BRK GD UAE	6121072
Data panel DB	DB 2 rws	6121075
Keystone support BRK-Key A45	BRK Key A45 rws	6121084
Keystone support BRK-Key B45	BRK Key B45 rws	6121090
