Device panels BRK BL CEE
morepic-1 morepic-2

Device panels BRK BL CEE

Item no. 6133591 | EAN 4012196716913

Product description
Product description

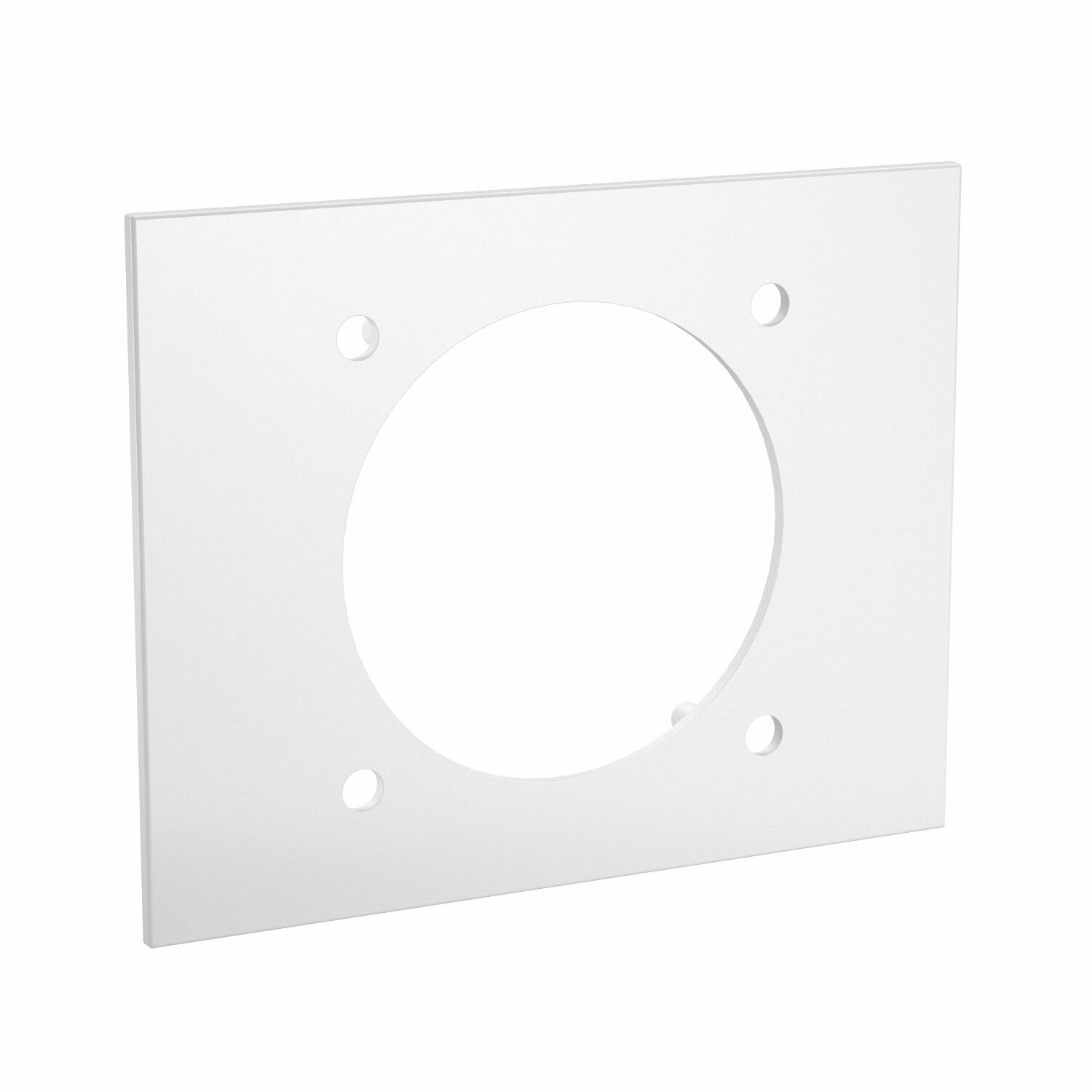

Device cover for covering CEE sockets for the Signa Base trunking system.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,1259 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Cover width 95 mm

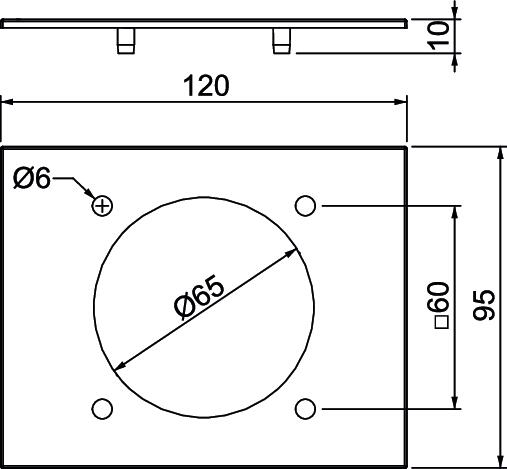

Dimension 120x95x10
Halogen-free yes
Height 10 mm
Length 120 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Protective film no
Version for Smooth
Width 95 mm
All types

All types

Types Item no.
BRK BL CEE rws 6133591
Downloads

Download

EU declaration of conformity BRK BL CEE rws / 6133591 , 0.10MB , pdf
Download
REACH Declaration of conformity BRK BL CEE rws / 6133591 , 0.12MB , pdf
Download
RoHS Declaration of conformity BRK BL CEE rws / 6133591 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
