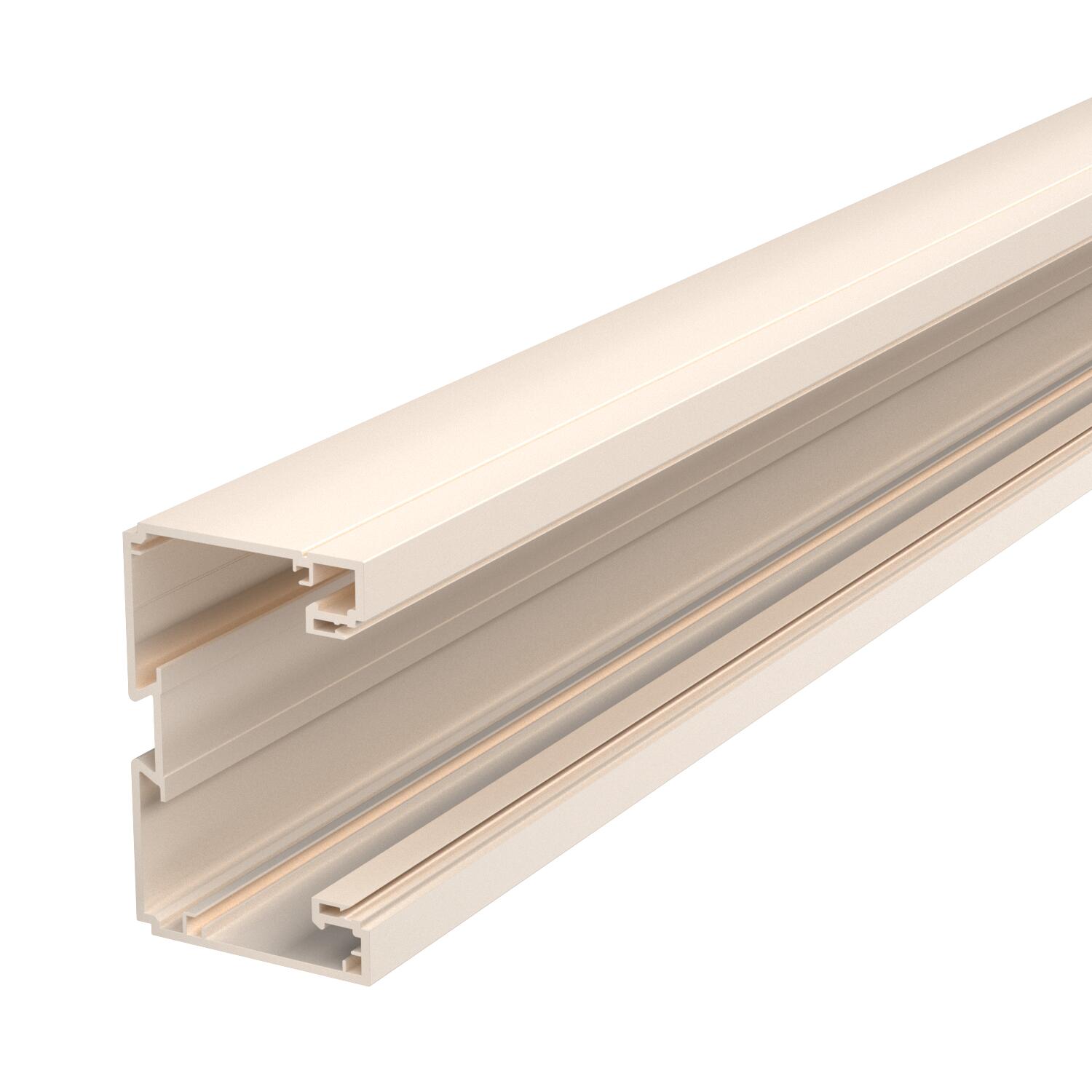

Device installation trunking Signa Base 70110 2000 | Cream; RAL 9001

Device installation trunking Signa Base 70110

Item no. 6132721 | EAN 4012196717316

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Trunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	2,0462 kg CO₂e / 1 Meter
Colour	Cream; RAL 9001
Cover mounting type	Internal
Cover supplied	no
Cover width	79 mm
Duct connector	yes
Halogen-free	no

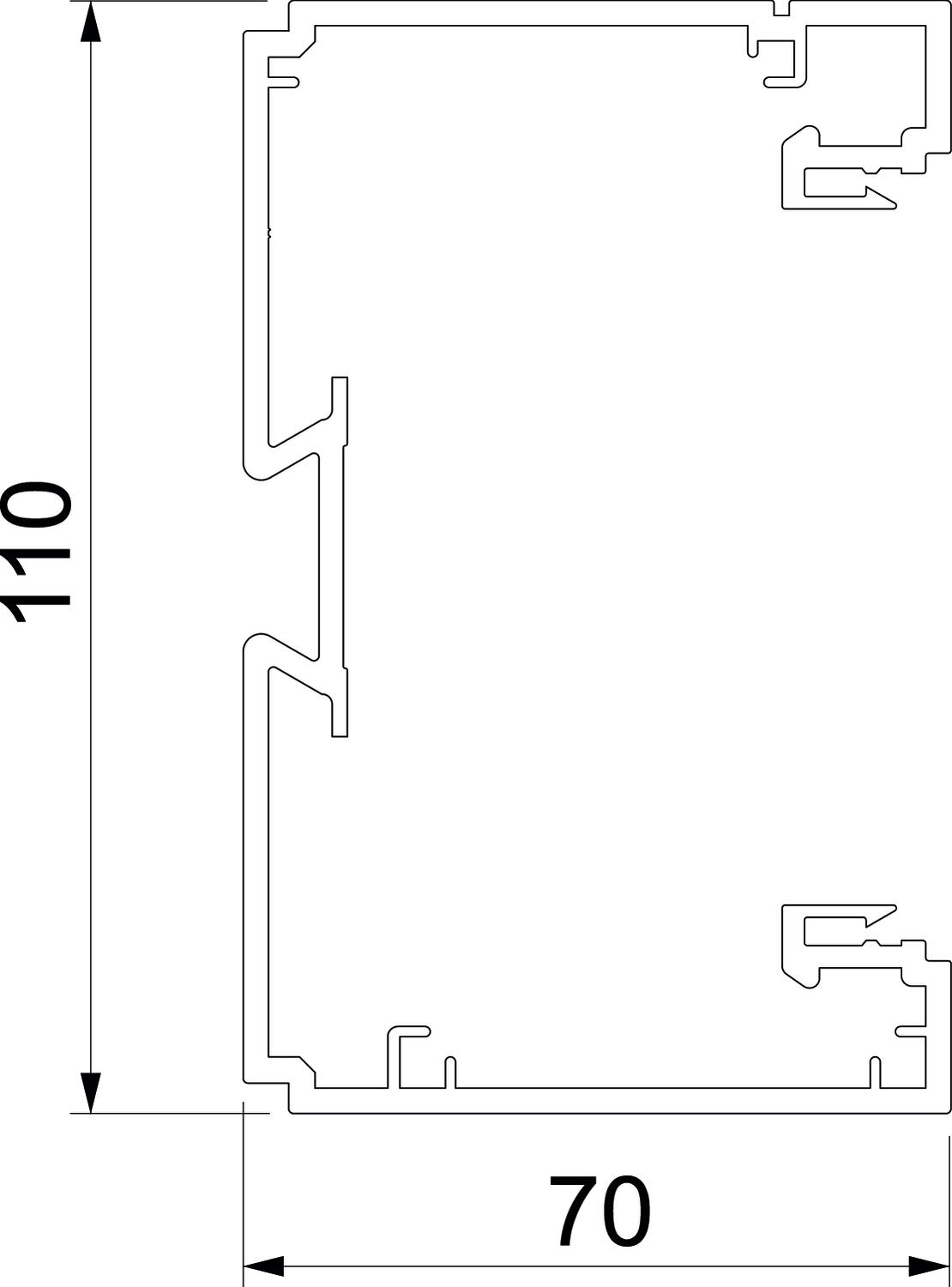

Height	70 mm
Length	2000 mm
Material	Polyvinylchloride
Mounting perforation in base	yes

Number of covers	1
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Protective film	yes
Rear panel version (inner side)	Continuous DIN rail
Rectangular shape	yes
Symmetrical	no
Usable cross-section	6036 mm²
Width	110 mm

All types

All types

Types	Length	Colour	Item no.
BRK 70110 cws	2000 mm	Cream; RAL 9001	6132721
BRK 70110 rws	2000 mm	Pure white; RAL 9010	6132722

Accessories

System accessories

Products	Types	Item no.
Accessory mounting box BRK GD, single	BRK GD gr	6133577
Accessory mounting box BRK GD2CEE, double	BRK GD 2CEE gr	6133579
Cover Signa Base OT 700802	BRK 700802 cws	6132735

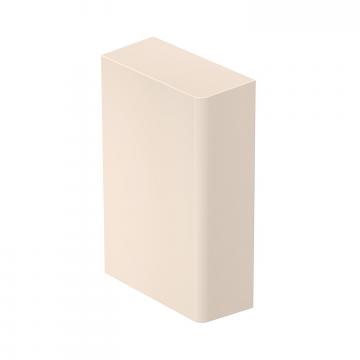

End piece Signa Base ES 70110	BRK ES70110 cws	6132775
Joint cover Signa Base SSA 70110	BRK SSA70110 cws	6132787
Partition BRK TW	BRK TW	6133610

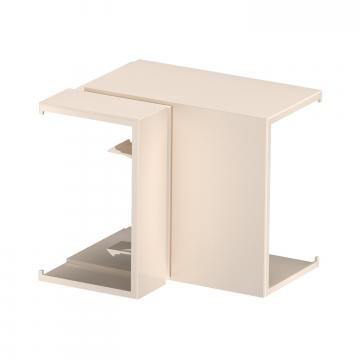

Internal corner Signa Base IE 70110	BRK IE70110 cws	6132750

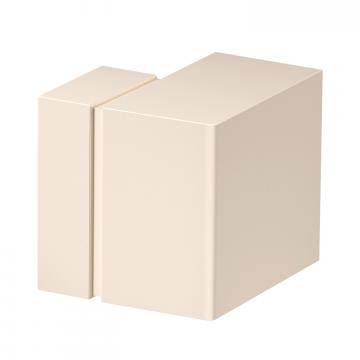

External corner Signa Base AE 70110	BRK AE70110 cws	6132740

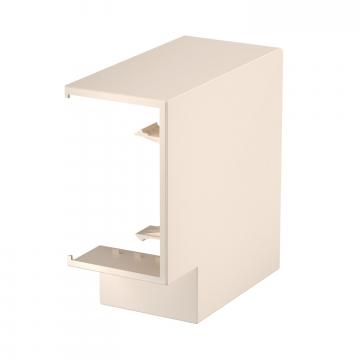

Flat angle Signa Base FW 70110	BRK FW70110 cws	6132762
Cable retaining clip Signa Base HK	SB HK	6132799
CEE flange BRK CEE FL	BRK CEE FL cws	6121122
Data socket BRK GD UAE	BRK GD UAE	6121072
Keystone support BRK-Key A45	BRK Key A45 cws	6121082
