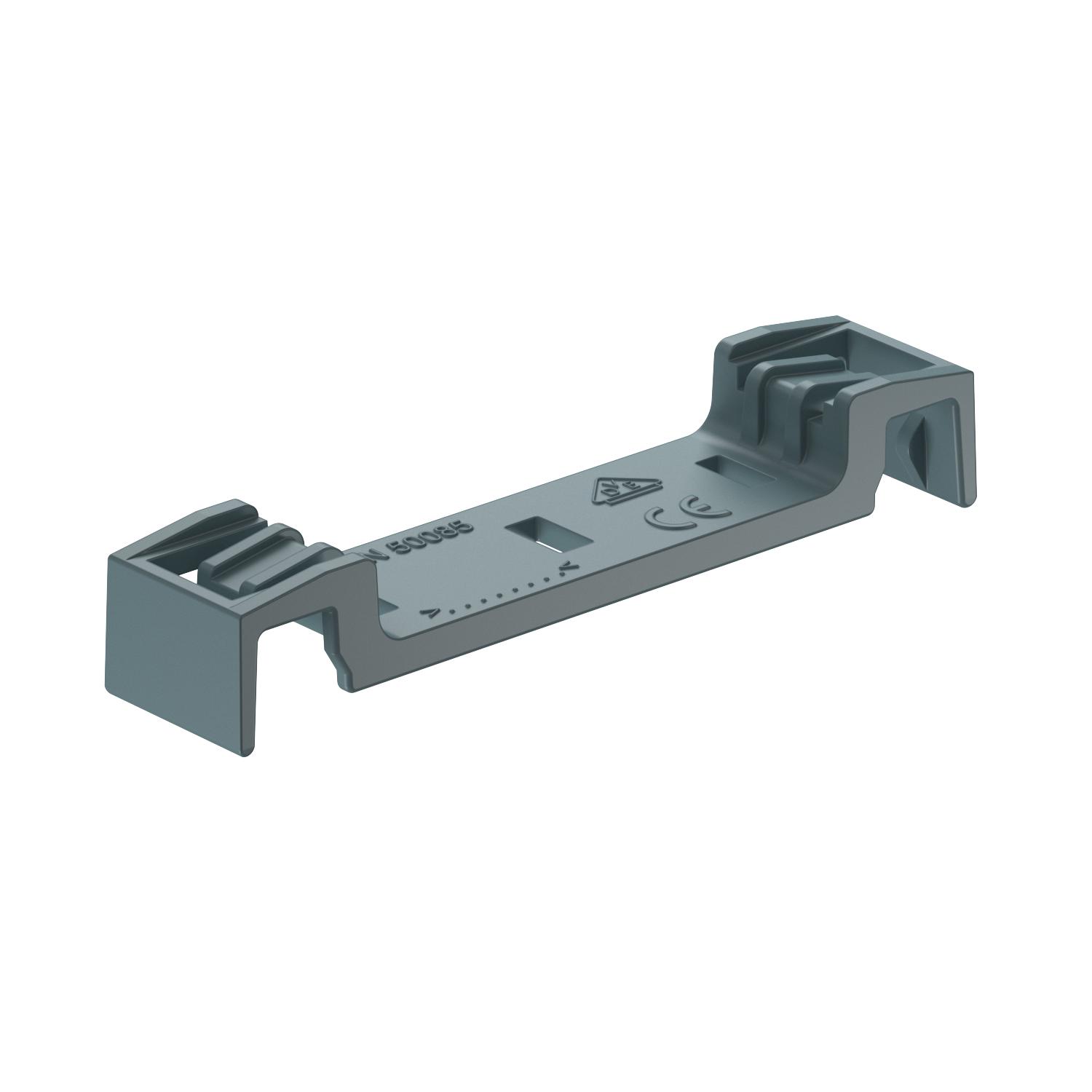

Cable retaining clip Signa Base HK
Item no. 6132799 | EAN 4012196722730
- Product description
-
Product descriptionCable retaining clip for the Signa Base device installation trunking.
-
- Technical data
-
Technical data
Ceiling mounting no Colour Blue grey; RAL 7031 Cover width 80 mm Height 15,6 mm Length 91 mm Material Polyamide Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK07. Width 19 mm With equipotential bonding no - All types
- Downloads
-
Data sheet SB HK / 6132799 , 0.17MB , pdfEU declaration of conformity SB HK / 6132799 , 0.10MB , pdfREACH Declaration of conformity SB HK / 6132799 , 0.12MB , pdfRoHS Declaration of conformity SB HK / 6132799 , 0.13MB , pdfMounting instructions Signa Base device installation trunking , 15.61MB , pdfNo invitation to tender text is available for this product.
