Cross-connector for round and flat conductors FT Rd 8-10/FL30 | Hot-dip galvanised
morepic-1 morepic-2 morepic-3 video-1

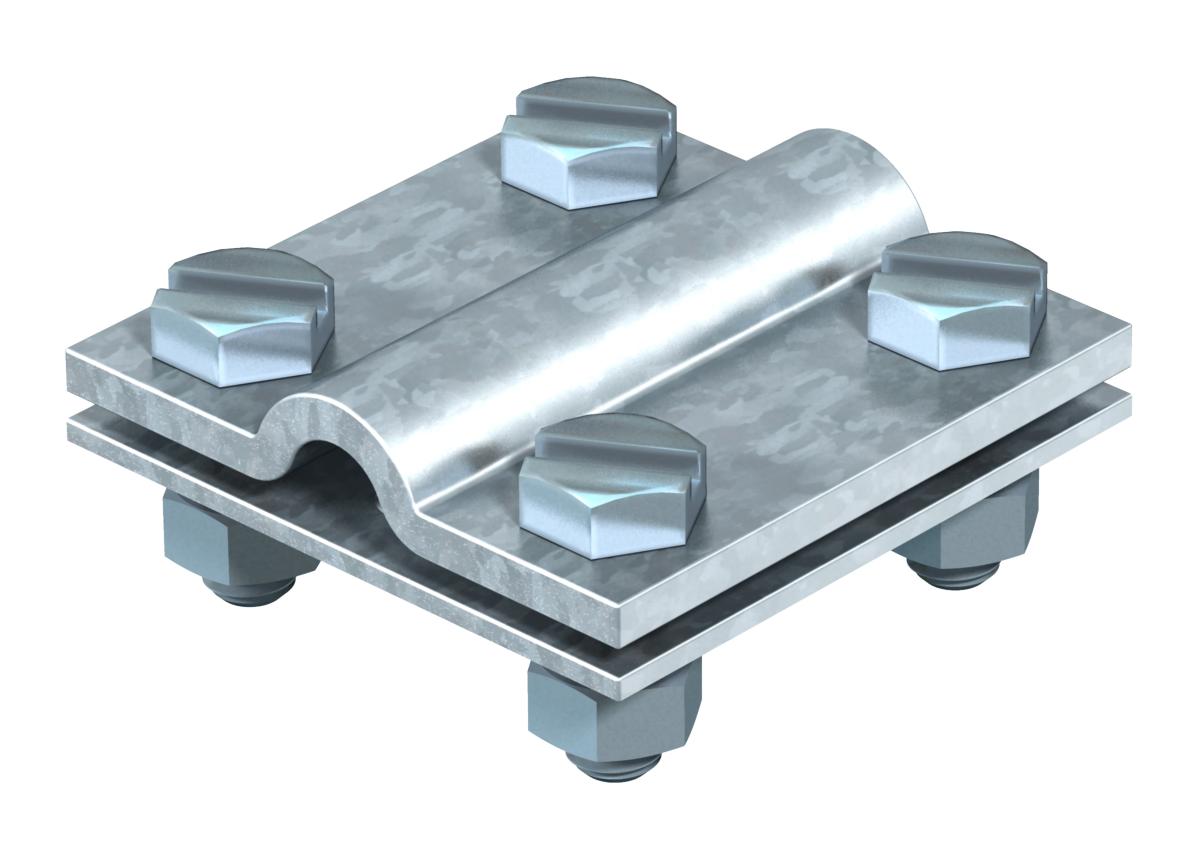

Cross-connector for round and flat conductors FT

Item no. 5312655 | EAN 4012195418399

Rd 8-10/FL30 mm
Hot-dip galvanised
Product description
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

• Fit: Rd 8-10 x FL 30

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
  • Lightning current-tested
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,5026 kg CO2e / 1 Piece
Dimension 8-10mm

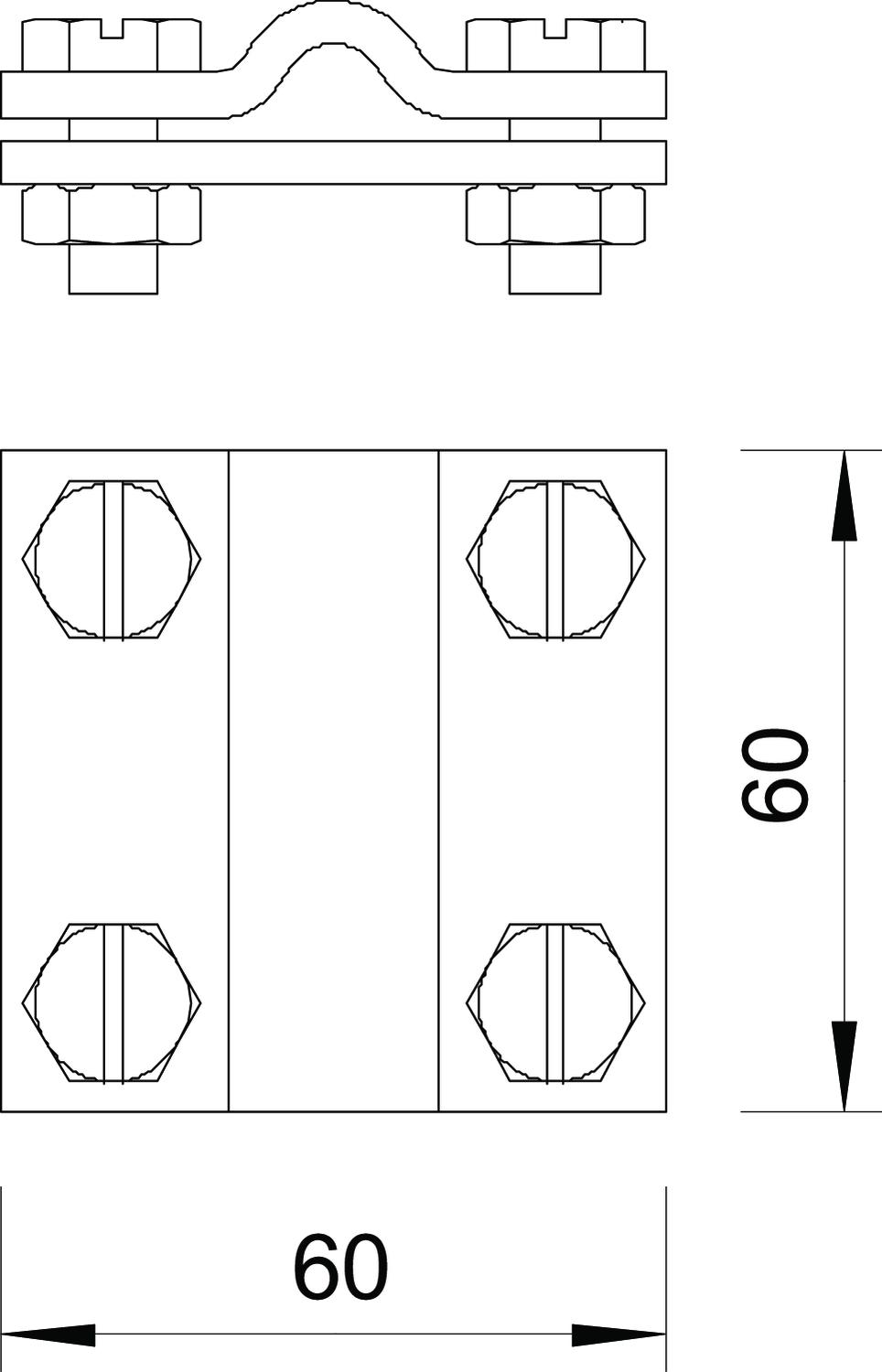

Dimension A 60 mm
Dimension B 60 mm
Fit Rd 8-10/FL30 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Steel

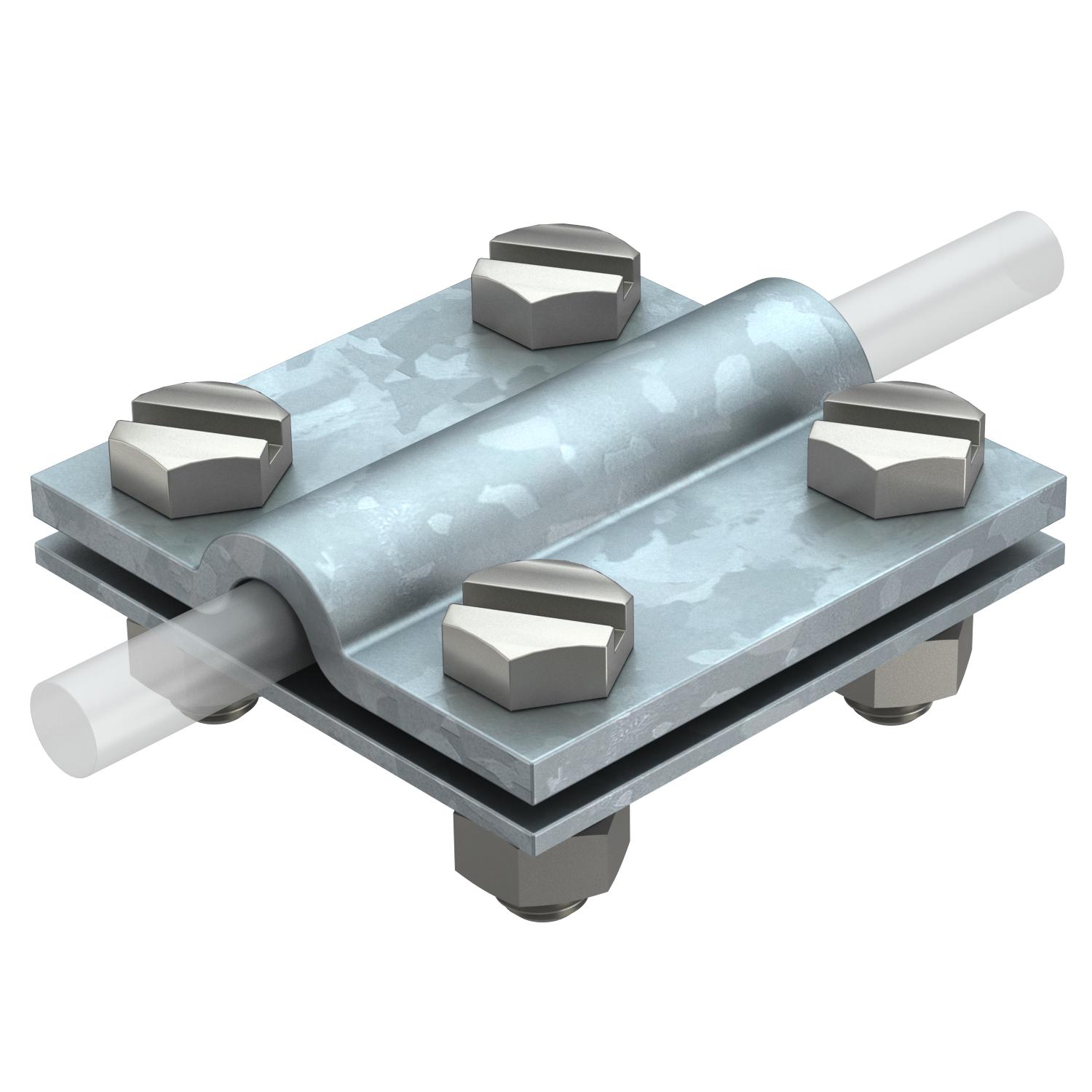

Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30
Surface Hot-dip galvanised
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Surface Item no.
252 S4 FT Rd 8-10/FL30 mm Hot-dip galvanised 5312302
252 8-10XFL30 FT Rd 8-10/FL30 mm Hot-dip galvanised 5312655
