Wiring trunking, type LKV N 75125

Wiring trunking, type LKV N 75125

Type LKV N 75125
Item no. 6178430
EAN 4012196013791
Show all variants
Item no. / Type
6178430 / LKV N 75125
Length
2000 mm
Width
125 mm
Height
75 mm
Fastening type
Base perforation
Colour
Stone grey; RAL 7030

Smallest selling unit: 8 m

m

Description

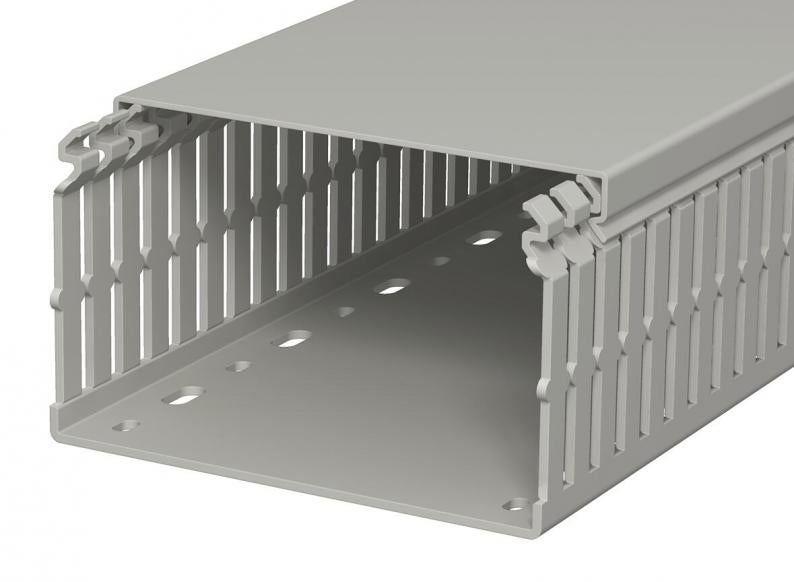

Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

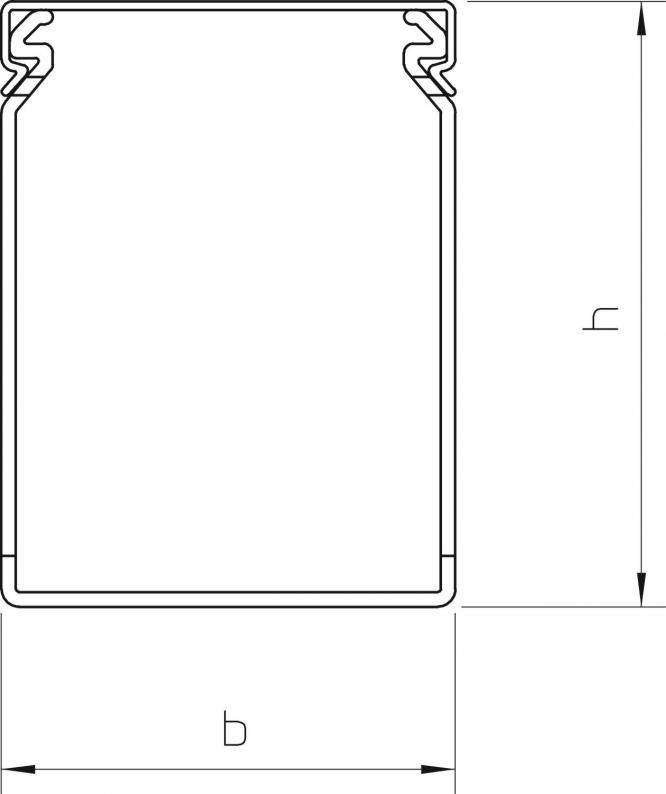

Dimensions

Length2000 mm
Width125 mm
Height75 mm

Technical data

Usable cross-section83,57 cm²
Diameter0 mm
Halogen-freeno
Self-extinguishingyes
Side wall versionSlotted
Flexibleno
With coveryes
Slot spacing12,5 mm
Slot width5 mm
Fastening typeBase perforation
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension75x125x2000
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Product seriesLKV

Environmental Data

2,8578 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate2,8578 kg CO2e / 1 Meter
CO₂ Footprint (GWP)2,8578 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Mounting accessories
Type
LK4 H

Smallest selling unit: 100 piece

piece

Type
LKV H

Smallest selling unit: 100 piece

piece

Item no. 6178514

Cover LKV D 125
Type
LKV D 125

Smallest selling unit: 16 m

m
