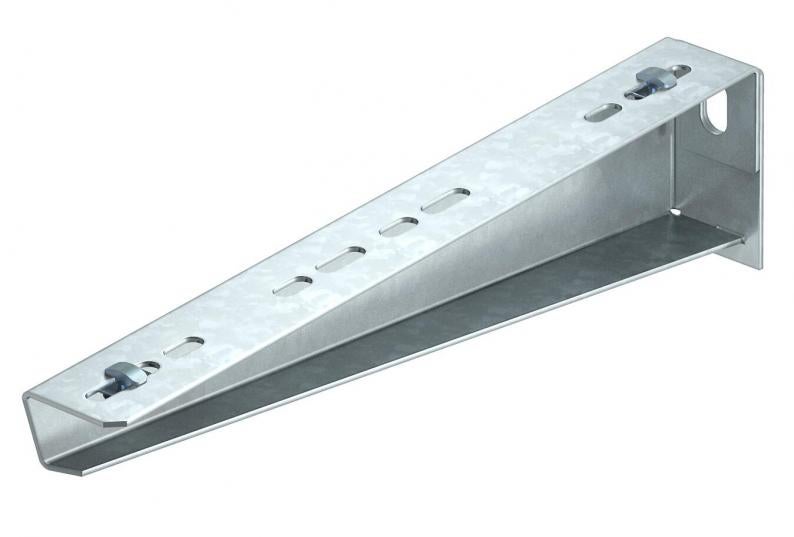

Wall and support bracket MWAM 12

Wall and support bracket MWAM 12

Type MWAM 12 11 FS
|
Item no. 6424550
|
EAN 4012195438526
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

Light-duty wall and support bracket including quick connector for use with cable trays of type RKSM.

Wall and support bracket MWAM.. including:

1. Two pre-mounted quick connectors for efficient cable tray fastening.

2. Truss-head bolt M10 x 25 for fastening on the U support.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wall and support brackets
  • U support
  • U support
  • U support
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length32,5 mm
Width110 mm
Height53 mm
Dimension A32,5 mm
Dimension B110 mm
Dimension H53 mm
Dimension W110 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
F in kN1,2 kN
DimensionB110mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc

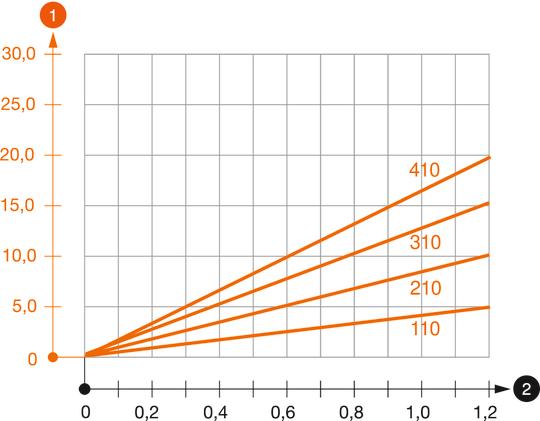

Load diagram, bracket type MWAM 12

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Environmental Data

0,5312 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,5312 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,5312 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Accessories

Mounting accessories

Item no. 6424548

Quick connector
Type
FCM F

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (4)
Product images (1)
3D data downloads (2)
Tender specifications (1)

Variants

Width
MWAM 12 11 FS
Item no.
6424550
Width
110
F in kN
1,2
Colour
zinc
MWAM 12 21 FS
Item no.
6424552
Width
210
F in kN
1,2
Colour
zinc
MWAM 12 31 FS
Item no.
6424554
Width
310
F in kN
1,2
Colour
zinc
MWAM 12 41 FS
Item no.
6424556
Width
410
F in kN
1,2
Colour
zinc
