Wall and support bracket MWAG 12 A2

Wall and support bracket MWAG 12 A2

Type MWAG 12 41 A2
Item no. 6424406
EAN 4012197253882
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

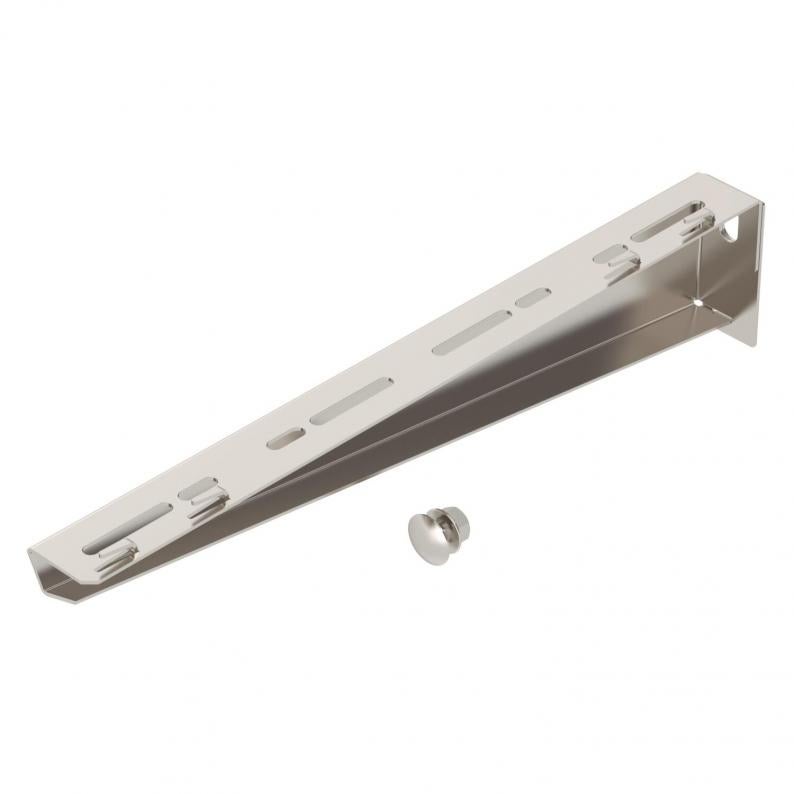

Light-duty wall and support bracket with edged design for screwless mesh cable tray fastening.

Including truss-head bolt M10 x 25 for fastening to

U supports.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wall and support brackets
  • U support
  • U support
  • U support
  • Easy mounting component
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

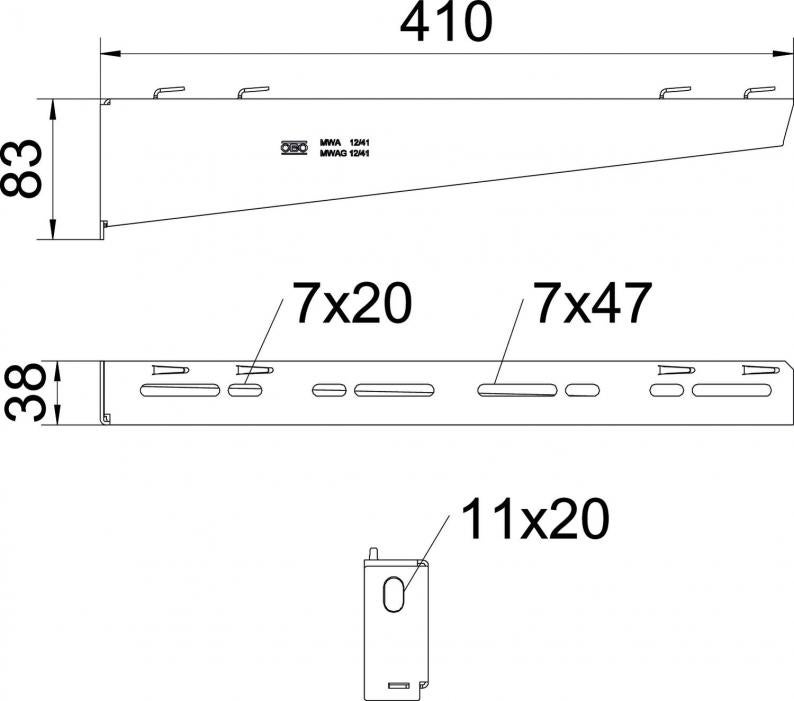

Dimensions

Width410 mm
Height83 mm
Dimension A38 mm
Dimension B410 mm
Dimension H83 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.400
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
ROHS-conformantyes
F in kN1,2 kN
DimensionB410mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Product seriesMWA Series

Environmental Data

4,4158 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate4,4158 kg CO2e / 1 Piece
CO₂ Footprint (GWP)4,4158 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
MWAG 12 11 A2
Item no.
6424400
Width
110
F in kN
1,2
Colour
stainless steel
MWAG 12 21 A2
Item no.
6424402
Width
210
F in kN
1,2
Colour
stainless steel
MWAG 12 31 A2
Item no.
6424404
Width
310
F in kN
1,2
Colour
stainless steel
MWAG 12 41 A2
Item no.
6424406
Width
410
F in kN
1,2
Colour
stainless steel
