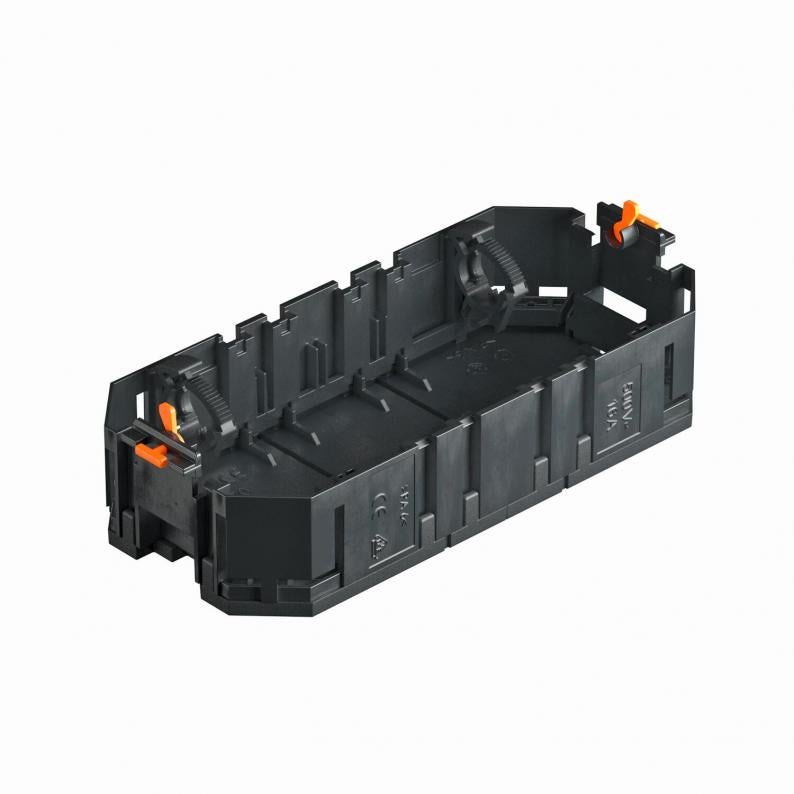

UT3 universal support, without cover plate, system length 165 mm
Type UT3
Item no. 7408721
EAN 4012196435272
Item no. / Type
7408721 / UT3
Length
165 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Universal support with two strain reliefs for electrical installations in device installation units of nominal sizes 2, R4, 4, 6 and R7 in indoor areas.

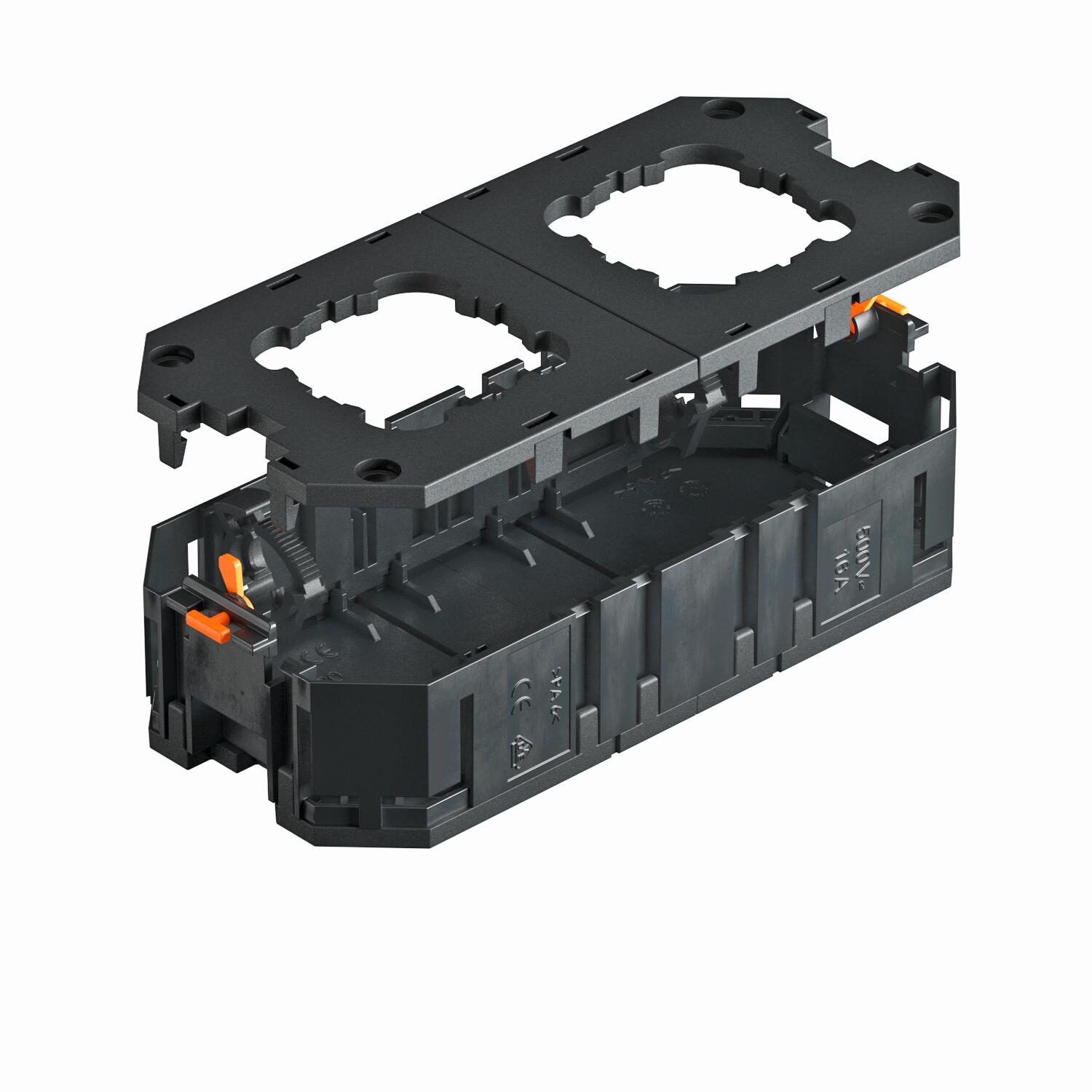

Cover plates and accessories should be ordered separately.
Cover plates and accessories should be ordered separately.
Technical data

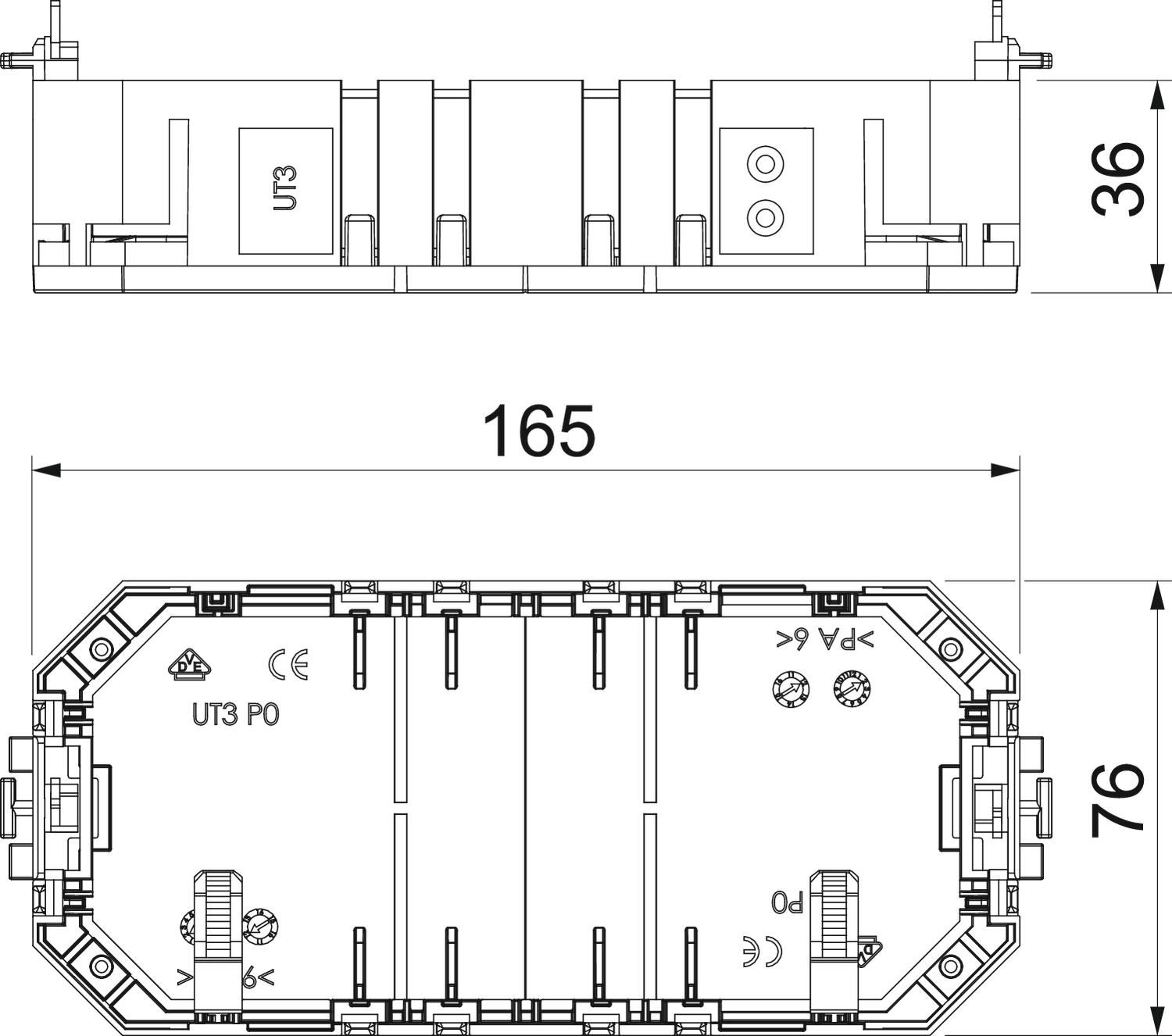

Dimensions
| Length | 165 mm |
|---|---|
| Width | 76 mm |
| Height | 36 mm |
Technical data
| No. of entries | 4 |
|---|---|
| Number of installable devices | 3 |
| Installation technology | Grid M45 |
| Number of strain reliefs | 2 |
| Version for | Socket shape |
| ROHS-conformant | yes |
| Dimension | 165x76x36 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| Product series | UT Universal support |
Environmental Data
0,3922 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3922 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,3922 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
