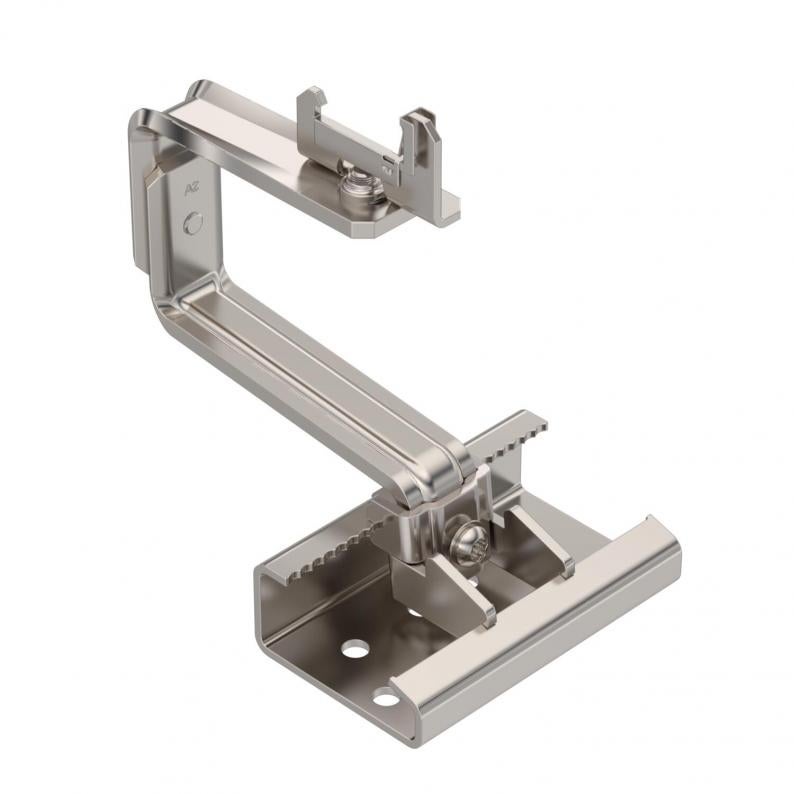

Universal roof hook for PV module mounting, tiled roof

Universal roof hook for PV module mounting, tiled roof

Type DHU A2
Item no. 5901410
EAN 4012197368685
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

Description

Roof hook to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for tiled roofs. Lockable fastening on support profile. Mounting on rafters with TKS wafer-head screws. Roof hook can be infinitely adjusted horizontally and vertically using glands, correct spanner Torx 40. Height adjustment in the range of the roof slat between 40–54 mm, side adjustment option up to 76 mm, height adjustment of the support profile up to 18 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

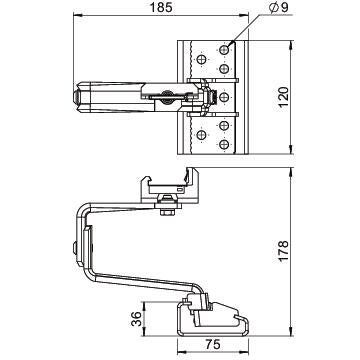

Dimensions

Width120 mm

Technical data

Material thickness6 mm
With mounting plateyes
Adjustableyes
Angle of inclination, min.90 °
Angle of inclination, max.0 °
ROHS-conformantyes
Dimension140x197x144
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Suitable for fastening photovoltaic roof/facade fasteningPitched roof fastening
Suitable for roof materialRoof tile
Wide fastening plate75 mm
Fastening plate, length120 mm
Height-fastening plate36 mm
Penetration of roof necessaryyes
AlignmentHorizontal/vertical
AnchoringBolts
Product seriesMagic PV Pitch

Environmental Data

6,9457 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate6,9457 kg CO2e / 1 Piece
CO₂ Footprint (GWP)6,9457 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

System accessories
Mounting accessories
Type
TP 45 2350 ALU

Smallest selling unit: 4 piece

piece

Type
TP 45 4700 ALU

Smallest selling unit: 4 piece

piece

Type
TP 45 4700 ALU S

Smallest selling unit: 4 piece

piece
