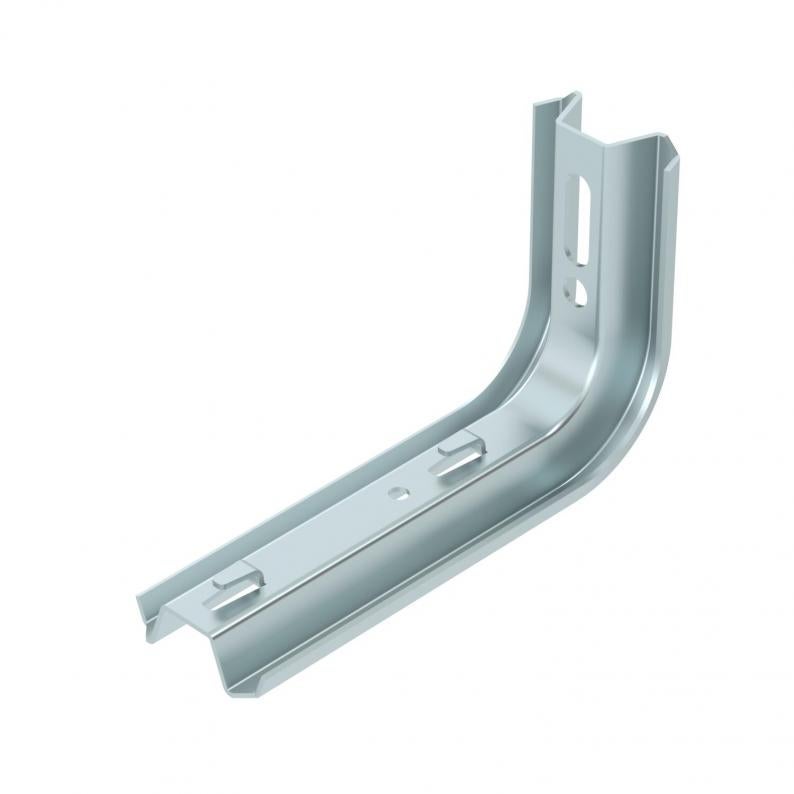

TP support / wall and support bracket FS

TP support / wall and support bracket FS

Type TPSAG 195 FS
Item no. 6366023
EAN 4012196627615
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

TP bracket with clamping lugs for screwless mesh cable tray fastening.

If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • TP profile and suspended support and bracket
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Easy mounting component
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length195 mm
Width60 mm
Height120 mm
Dimension L195 mm
Dimension B60 mm
Dimension H120 mm
Dimension W100 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.150
for width max.150 mm
Version forWall and support bracket
ROHS-conformantyes
F in kN1 kN
DimensionB195mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Product seriesTP Series
Load diagram, bracket, type TPSAG

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Support width in m

Environmental Data

0,9246 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,9246 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,9246 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416551

Spacer FS
Type
DS 4 FS

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

F in kN
TPSAG 145 FS
Item no.
6366015
Width
60
F in kN
1,5
Colour
zinc
TPSAG 195 FS
Item no.
6366023
Width
60
F in kN
1
Colour
zinc
TPSAG 245 FS
Item no.
6366031
Width
60
F in kN
0,9
Colour
zinc
TPSAG 345 FS
Item no.
6366066
Width
60
F in kN
0,55
Colour
zinc
