TP support / wall and support bracket FS

TP support / wall and support bracket FS

Type TPSA 145 FS
|
Item no. 6364101
|
EAN 4012196198979
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

TP support/bracket for fastening to horizontal concrete ceilings and walls.

If the profile is fastened directly to the ceiling or the profile is screwed together as head reinforcement, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • TP profile and suspended support and bracket
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

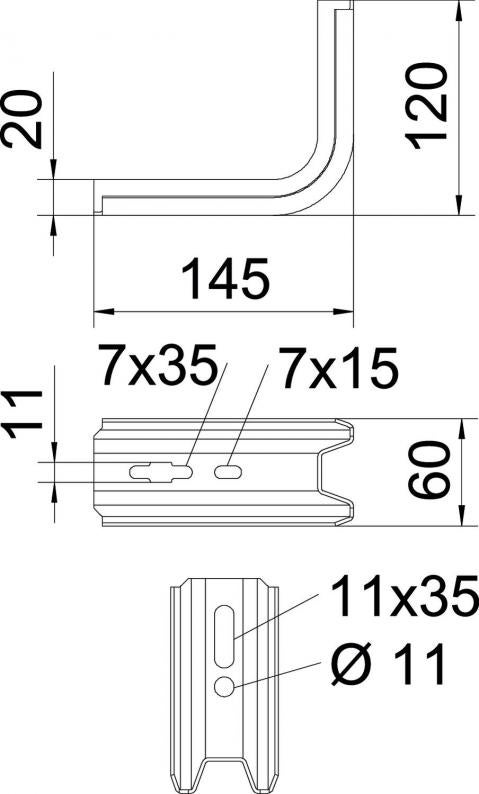

Dimensions

Length145 mm
Width60 mm
Height120 mm
Dimension L145 mm
Dimension B60 mm
Dimension H120 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.100
for width max.100 mm
Version forWall and support bracket
ROHS-conformantyes
F in kN1,5 kN
DimensionB145mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Product seriesTP Series
Load diagram, bracket, type TPSA

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Environmental Data

0,7642 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,7642 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,7642 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416551

Spacer FS
Type
DS 4 FS

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

F in kN
TPSA 145 FS
Item no.
6364101
Width
60
F in kN
1,5
Colour
zinc
TPSA 245 FS
Item no.
6364209
Width
60
F in kN
0,9
Colour
zinc
TPSA 345 FS
Item no.
6364306
Width
60
F in kN
0,55
Colour
zinc
