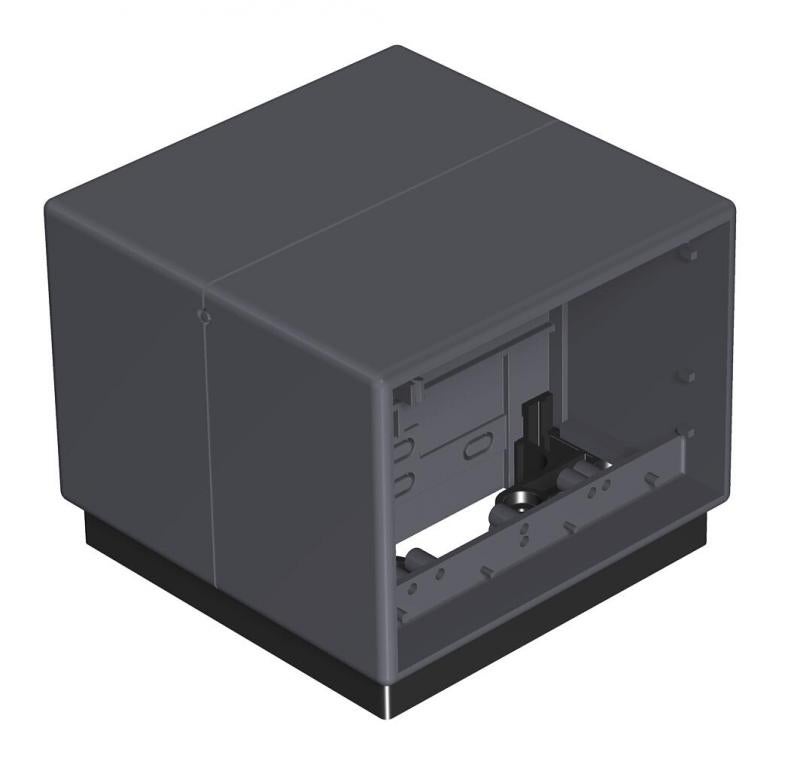

Telitank T4B

Telitank T4B

Type T4B 00C 7011
Item no. 7408288
EAN 4012195114956
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

For combined installation of four individual accessories with support bracket (four accessories of one current type or two accessories each for two current types). The different current types are insulated against each other by a partition. Screw fixing groove for accessories: 60 mm vertical.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

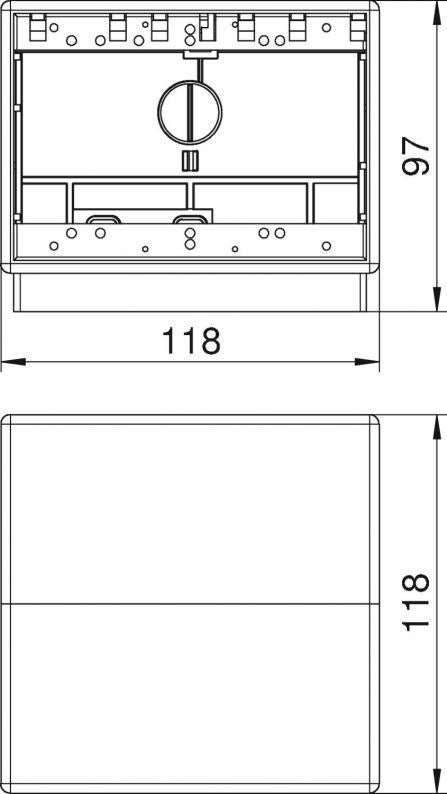

Dimensions

Length118 mm
Width118 mm
Height97 mm

Technical data

Number of installable devices4
Suitable for standard switch materialyes
Suitable for wet careyes
Number of installable devices, front side2
Number of installable devices, rear side2
ROHS-conformantyes
Dimension118x118x97
MaterialPolyamide
ColourIron grey; RAL 7011
Product seriesTelitank

Environmental Data

1,2012 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,2012 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,2012 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

System accessories
Type
T4B P01S 9011

Smallest selling unit: 1 piece

piece

Type
T4B P1S 9011

Smallest selling unit: 1 piece

piece

Type
T4B P6 9011

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
T4B 00C 7011
Item no.
7408288
Number of installable devices
4
Colour
Iron grey; RAL 7011
T4B 00C 9011
Item no.
7408292
Number of installable devices
4
Colour
Graphite black; RAL 9011
