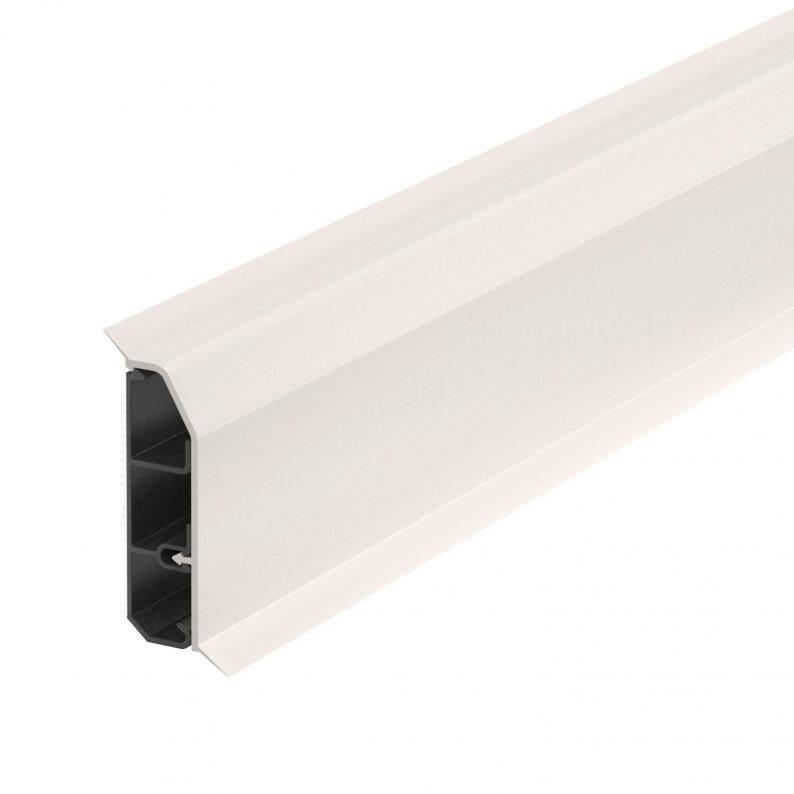

Skirting trunking SLL 2070

Skirting trunking SLL 2070

Type SLL 2070 cws
|
Item no. 6132214
|
EAN 4012196720019
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

SL-L skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.

With snap-on cover and base with base perforation for direct wall mounting. Change the direction with the fittings and close the trunking ends with end pieces. Service outlet for installing power and data technology. With elastic connection lips for concealing uneven wall surfaces.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

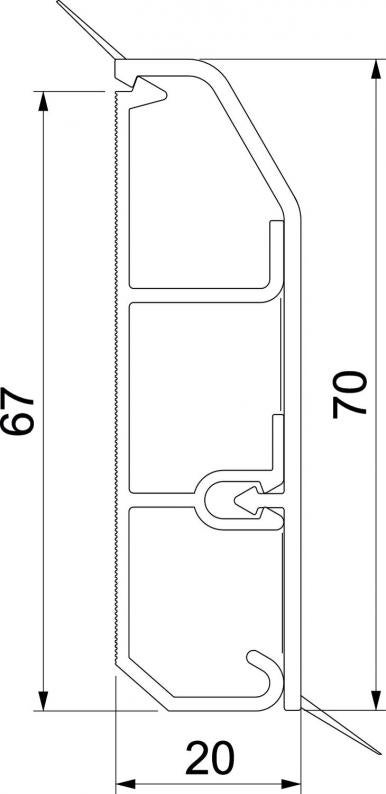

Dimensions

Length2000 mm
Width70 mm
Height20 mm

Technical data

Mounting perforation in baseyes
Usable cross-section820 mm²
Halogen-freeno
Number of fixed partitions2
Protective filmno
DecorationWithout
Protection ratingIP40
With carpet stripno
Cover sealing lipWall/floor
Protection rating IK codeIK06
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourCream; RAL 9001
Product seriesSL Trunking

Environmental Data

1,1203 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,1203 kg CO2e / 1 Meter
CO₂ Footprint (GWP)1,1203 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Type
SL2GT5070 cws

Smallest selling unit: 1 piece

piece

Type
SL ETler5070 cws

Smallest selling unit: 1 piece

piece

Type
SL GTO 50-70 rws

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (1)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
SLL 2070 cws
Item no.
6132214
Length
2000
Colour
Cream; RAL 9001
SLL 2070 rws
Item no.
6132215
Length
2000
Colour
Pure white; RAL 9010
