PYROLINE® Con D PLC fire protection duct EI30 - EI60

PYROLINE® Con D PLC fire protection duct EI30 - EI60

Type PLCD D061220
Item no. 7215804
EAN 4012196836406
Show all variants
Item no. / Type
Length
Dimension B
Dimension H
Dimension b
Dimension h

Smallest selling unit: 1 m

m

Description

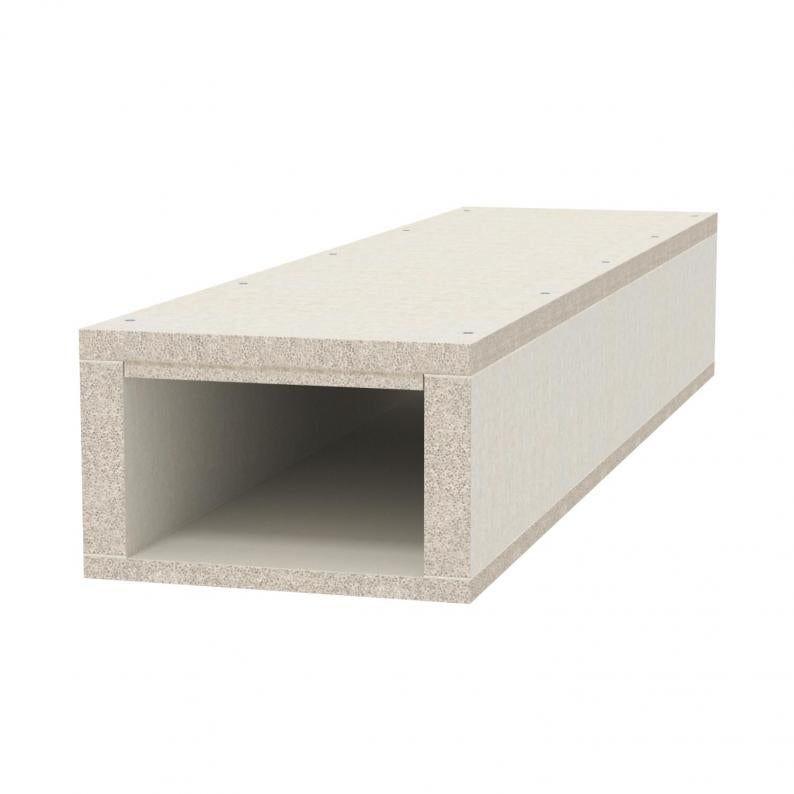

Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI30 - EI60 classification as installation duct according to EN 13501-2 on the basis of tests in accordance with EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

Dimensions

Length1000 mm
Dimension B260 mm
Dimension H165 mm
Dimension b200 mm
Dimension h120 mm

Technical data

With perforationno
JacketingWithout
Material of the insulationGlass-fibre lightweight concrete
Number of flammable sides3
Cover fasteningScrew
ROHS-conformantyes
Classification EI − installation duct60
Dimension1000x200x120
MaterialFibreglass lightweight concrete
ColourGrey
Product seriesPYROLINE® con PLC

Accessories

System accessories
Type
PLCD E061220

Smallest selling unit: 1 piece

piece

Type
PLCD W061220

Smallest selling unit: 1 piece

piece

Type
KAD-8040

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Dimension B
Dimension H
Dimension b
Dimension h
PLCD D060810
Item no.
7215800
Length
1000
Dimension B
160
Dimension H
125
Dimension b
100
Dimension h
80
PLCD D061220
Item no.
7215804
Length
1000
Dimension B
260
Dimension H
165
Dimension b
200
Dimension h
120
