Porous concrete anchor with M6 external thread
Type PBD M6x10
|Item no. 3497600
|EAN 4012196652297
Item no. / Type
3497600 / PBD M6x10
Length
86 mm
Thread
M6
Smallest selling unit: 25 piece
25piece
piece
Description
Steel spreading anchor tested for fire protection properties and approved for use in porous concrete.
Version with external thread. Suitable for fire loads of up to 120 minutes, please refer to the general construction approval for the load values (applies to porous concrete of resistance classes of min. 3.3).
A setting tool is required for mounting.
Technical data

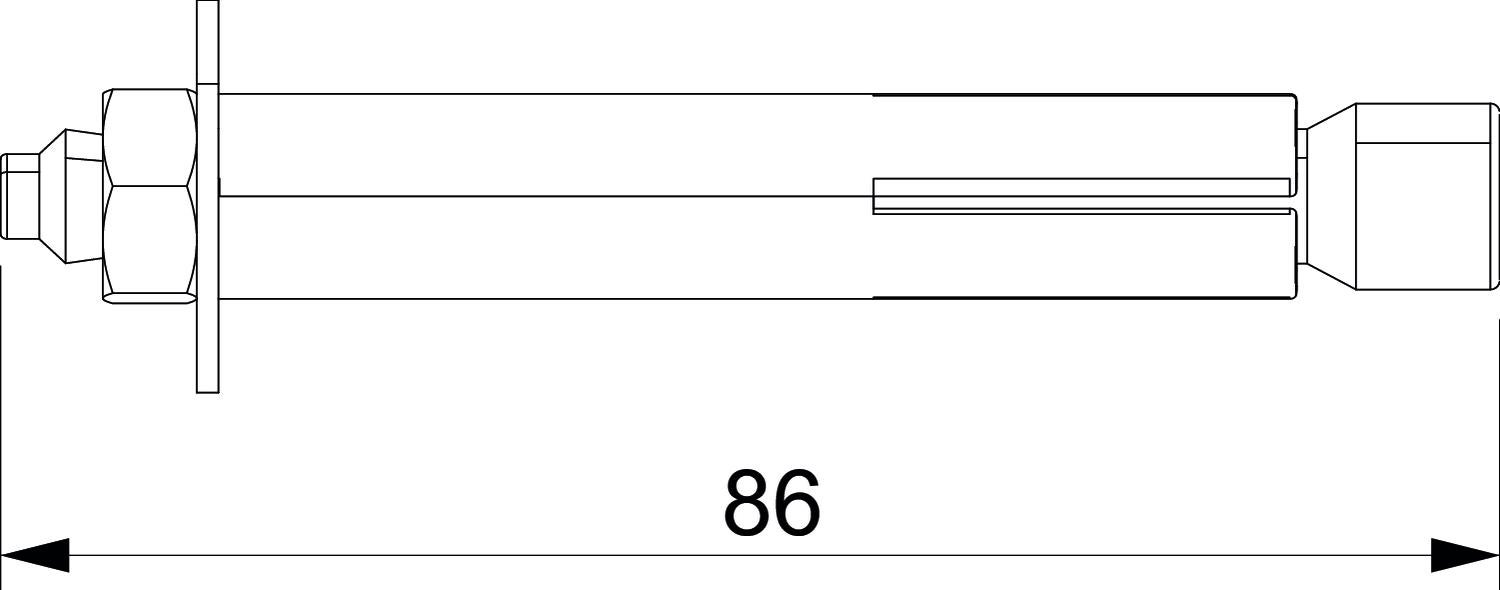

Dimensions
| Length | 86 mm |
|---|---|
| Dimension L | 86 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M6 |
| Clamping strength | 10 mm |
| Version for | For knocking in |
| ROHS-conformant | yes |
| Thread type | Metric |
| Dimension | 86x10 |
| Surface | Electrogalvanised |
| Material | Steel |
| Colour | zinc |
