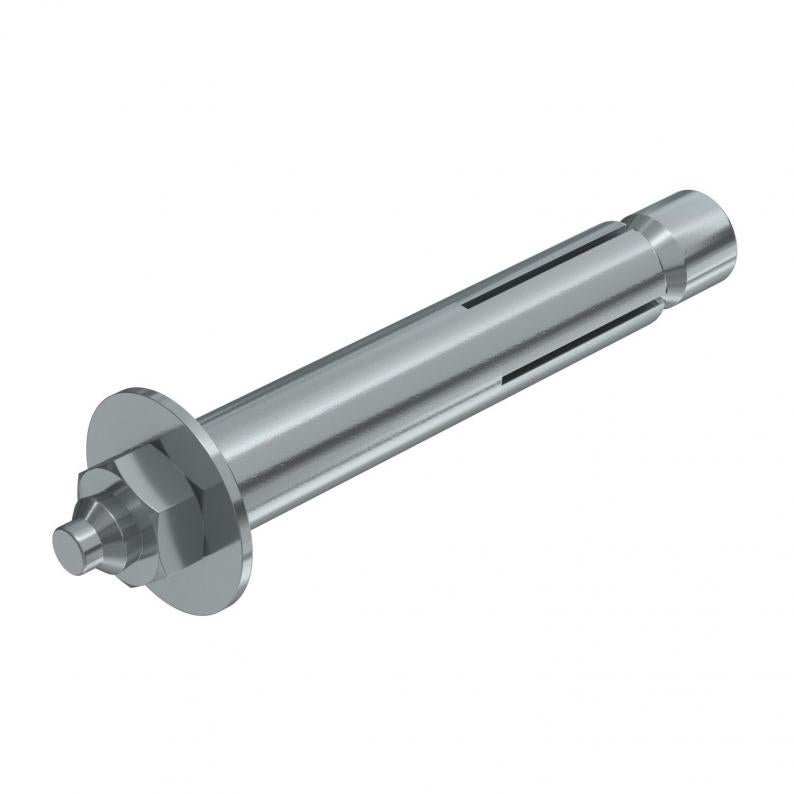

Porous concrete anchor with M10 external thread
Type PBD M10x10
|Item no. 3497616
|EAN 4012196652426
Item no. / Type
3497616 / PBD M10x10
Length
90 mm
Thread
M10
Smallest selling unit: 25 piece
25piece
piece
Description
Steel spreading anchor tested for fire protection properties and approved for use in porous concrete.
Version with external thread. Suitable for fire loads of up to 120 minutes, please refer to the general construction approval for the load values (applies to porous concrete of resistance classes of min. 3.3).
A setting tool is required for mounting.
Technical data

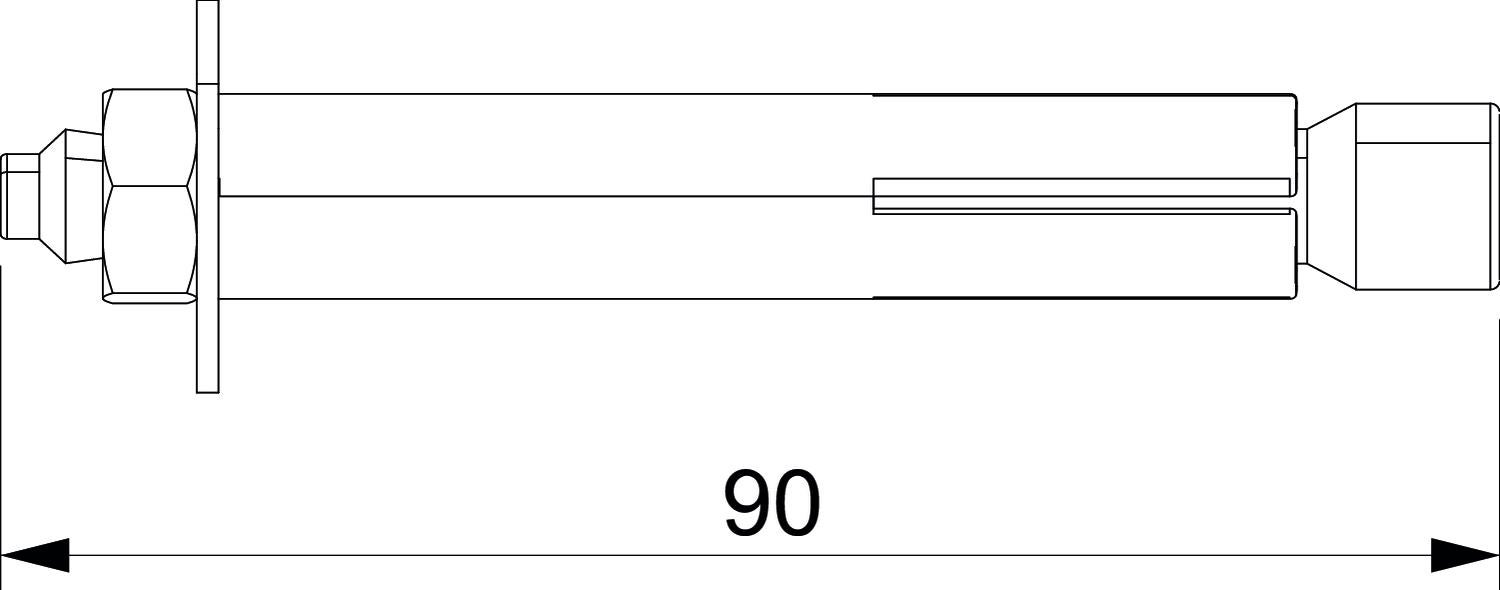

Dimensions
| Length | 90 mm |
|---|---|
| Dimension L | 90 mm |
Technical data
| Thread metric | 10 |
|---|---|
| Thread | M10 |
| Clamping strength | 10 mm |
| Version for | For knocking in |
| ROHS-conformant | yes |
| Thread type | Metric |
| Dimension | 90x14 |
| Surface | Electrogalvanised |
| Material | Steel |
| Colour | zinc |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 3497684
Setting tool for rotary hammerType
SDS-EWP 10x10
Smallest selling unit: 1 piece
1piece
piece
