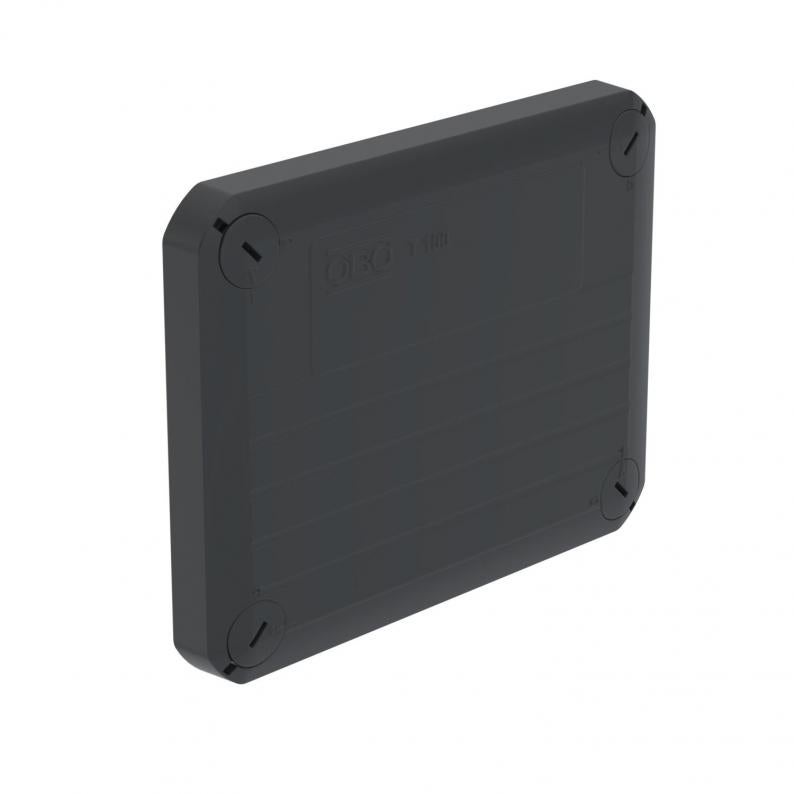

Pluggable cover, unequipped
Type D06 SW
Item no. 2006284
EAN 4012197463526
Item no. / Type
Smallest selling unit: 40 piece
40piece
piece
Description
Pluggable cover for the closing of junction boxes, equipped with break-out openings for multiple-pole systems or DATA systems based on Keystone. With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
Technical data

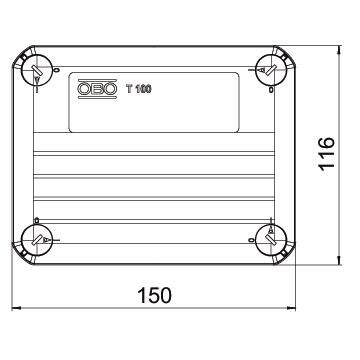

Dimensions
| Length | 150 mm |
|---|---|
| Width | 116 mm |
| Height | 22 mm |
Technical data
| Protection rating | IP66 |
|---|---|
| Version, concealed and cavity wall cover | Blanking lid |
| With connection cable | no |
| Shape | Rectangular |
| Fastening type | Screw fastening |
| ROHS-conformant | yes |
| Dimension | 150x116x22 |
| Material | Polypropylene |
| Colour | Graphite black; RAL 9011 |
| Product series | BlackLine, T series |
Environmental Data
| Packaging without plastic | yes |
|---|
