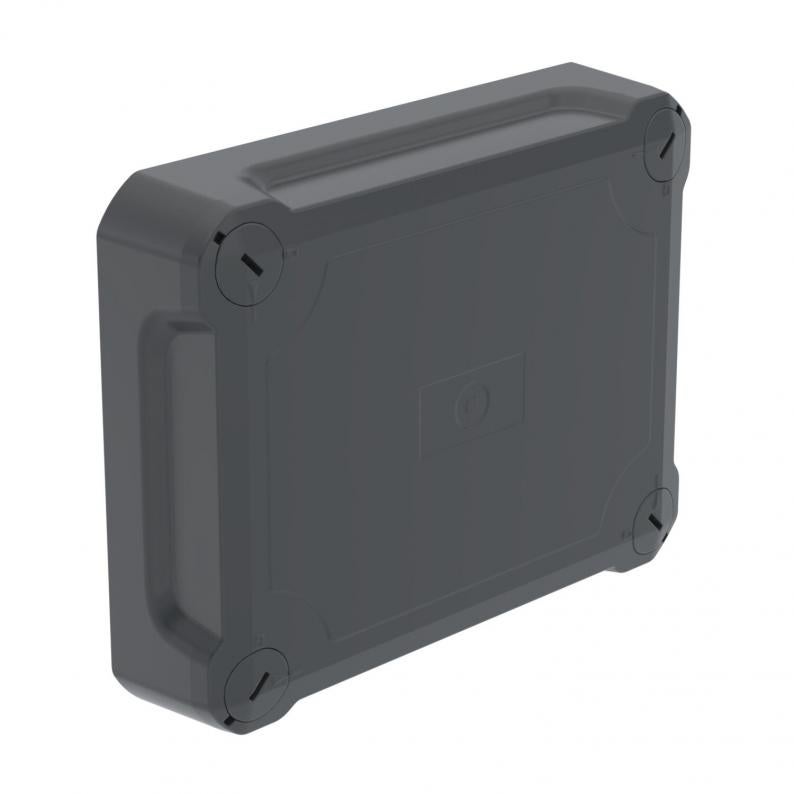

Pluggable cover, unequipped

Pluggable cover, unequipped

Type D05 SW
Item no. 2006280
EAN 4012197463748
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Pluggable cover for the closing of junction boxes, equipped with break-out openings for multiple-pole systems or DATA systems based on Keystone. With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nominal voltage 500 V
  • Protection rating IP 66
  • Packaging made entirely from recycled cardboard

Technical data

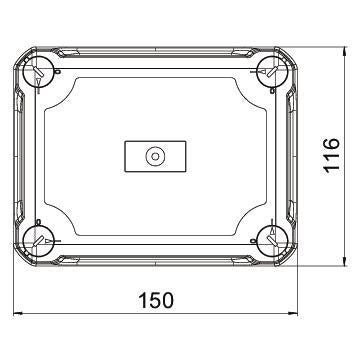

Dimensions

Length150 mm
Width116 mm
Height39 mm

Technical data

Protection ratingIP66
Version, concealed and cavity wall coverBlanking lid
With connection cableno
ShapeRectangular
Fastening typeScrew fastening
ROHS-conformantyes
Dimension150x116x39
MaterialPolycarbonate
ColourGraphite black; RAL 9011
Product seriesBlackLine, T series

Environmental Data

Packaging made completely from recycled cardboardyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

D05
Item no.
2006136
D06
Item no.
2006140
D05 SW
Item no.
2006280
D06 SW
Item no.
2006284
