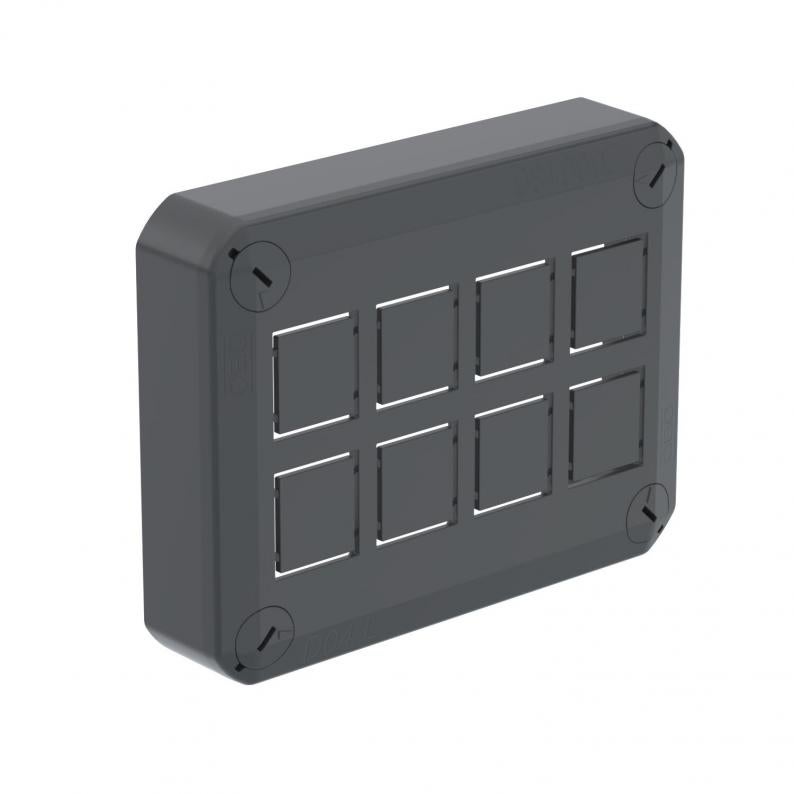

Pluggable cover, unequipped

Pluggable cover, unequipped

Type D04 L SW
Item no. 2006274
EAN 4012197464387
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Pluggable cover for the closing of junction boxes, equipped with break-out openings for multiple-pole systems or DATA systems based on Keystone. With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Packaging made entirely from recycled cardboard

Technical data

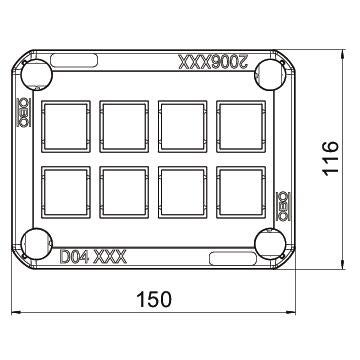

Dimensions

Length150 mm
Width116 mm
Height39 mm

Technical data

Protection ratingIP30
Version, concealed and cavity wall coverMounting lid
ShapeRectangular
Fastening typeScrew fastening
ROHS-conformantyes
Dimension150x116x39
MaterialPolypropylene
ColourGraphite black; RAL 9011
Product seriesBlackLine, T series

Environmental Data

Packaging made completely from recycled cardboardyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

D01 L
Item no.
2006040
D02 L
Item no.
2006080
D04 L
Item no.
2006130
D01 L SW
Item no.
2006230
D02 L SW
Item no.
2006254
D04 L SW
Item no.
2006274
