Pluggable cover, equipped, Modul 45

Pluggable cover, equipped, Modul 45

Type D03 2MSD WS SW
Item no. 2006266
EAN 4012197464349
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

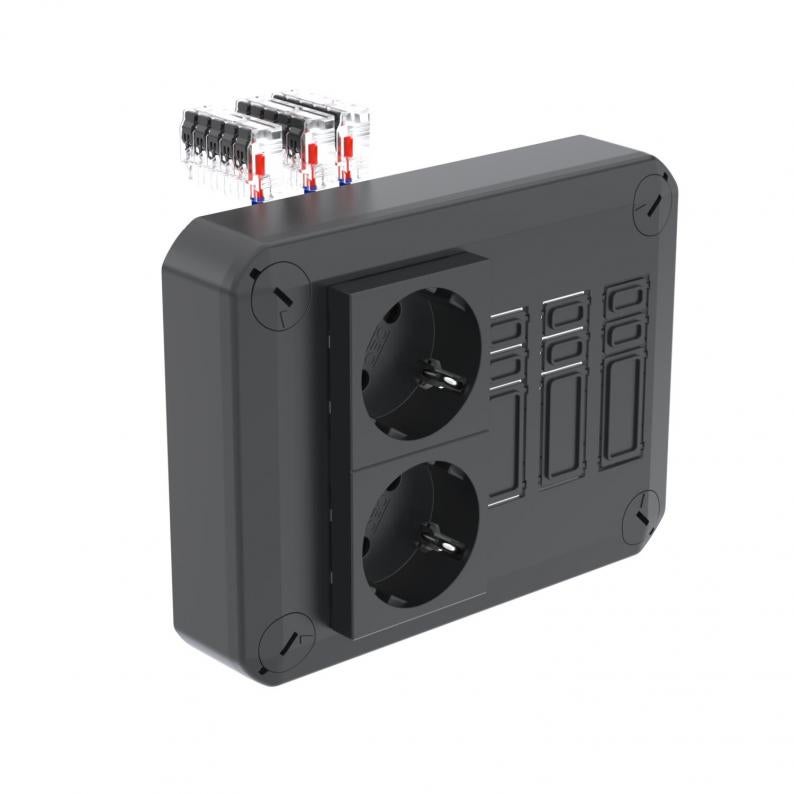

Pluggable cover for the closing of junction boxes, equipped with 2 Module 45 sockets, prewired with lever plug-in connector With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Protection rating IP 30
  • Packaging made entirely from recycled cardboard

Technical data

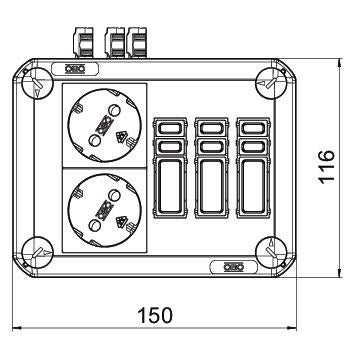

Dimensions

Length150 mm
Width116 mm
Height60 mm

Technical data

Protection ratingIP30
Version, concealed and cavity wall coverLid with sockets
ShapeRectangular
Fastening typeScrew fastening
ROHS-conformantyes
Dimension150x116x60
MaterialPolypropylene
ColourGraphite black; RAL 9011
Product seriesBlackLine, T series

Environmental Data

Packaging made completely from recycled cardboardyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

D03 2MSD WS
Item no.
2006116
D03 2MSD WS SW
Item no.
2006266
