Mounting and fastening plate T350

Mounting and fastening plate T350

Type MBP T350
Item no. 2007888
EAN 4012196034291
Show all variants
Item no. / Type
Width
Height

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

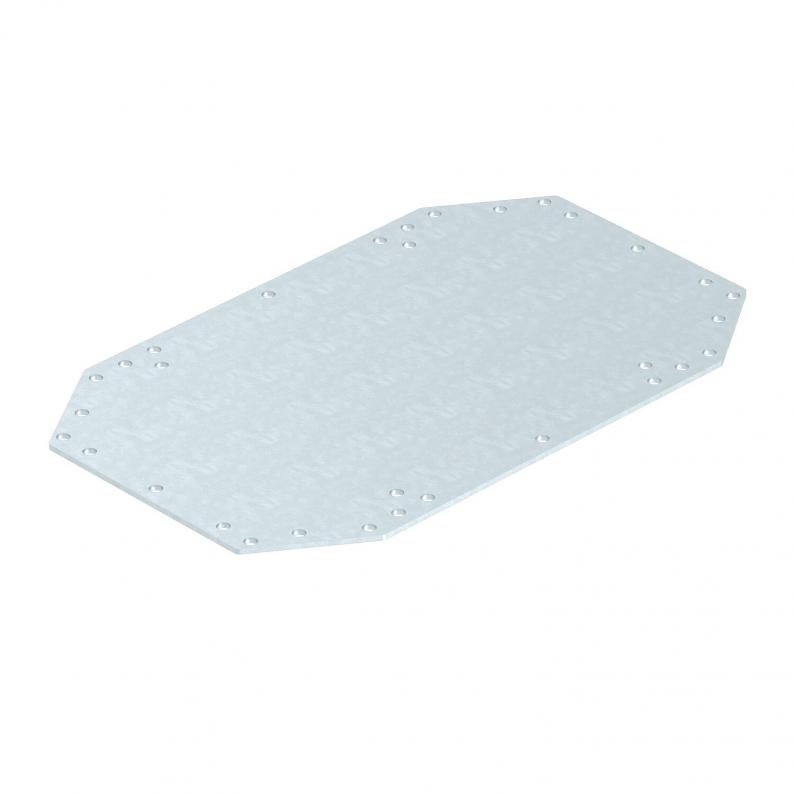

This mounting and fastening plate gives the options for variable fixing of external components in the junction box. It consists of strip-galvanised sheet steel of a material thickness of 2 mm.
The appropriate fastening holes are drilled into the steel plate for the component that needs to be fixed. Then, the products can be attached onto the sheet with cable ties, screws or similar fastening materials.
Using the screws included in the scope of the delivery, the mounting fastening plate can now be fixed in the appropriate T series (T 350) junction box.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

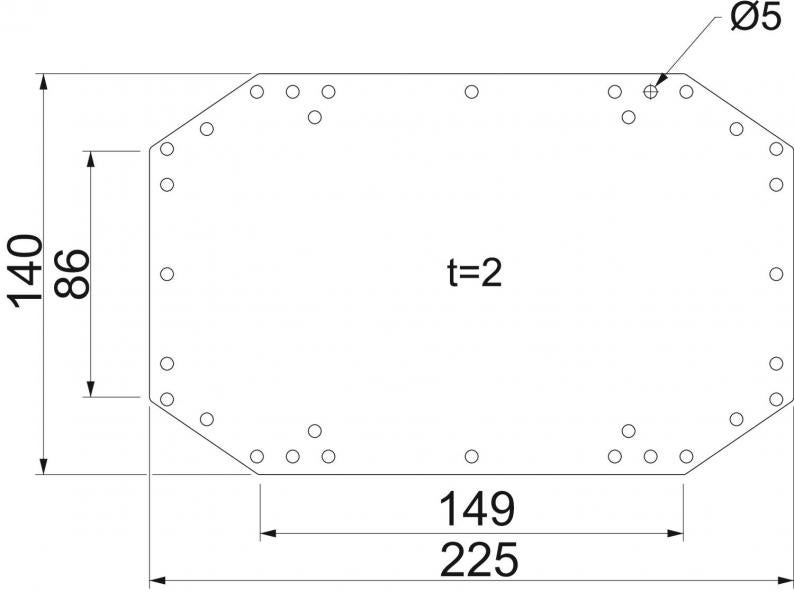

Dimensions

Width225 mm
Height140 mm
Dimension L225 mm
Dimension B140 mm
Dimension B186 mm
Dimension L1149 mm

Technical data

Material thickness2 mm
With perforationyes
ROHS-conformantyes
Dimension225x140x2
SurfaceStrip galvanised
MaterialSteel
Product seriesT series

Environmental Data

1,5609 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate1,5609 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,5609 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Width
Height
MBP T160
Item no.
2007884
Width
140
Height
100
MBP T250
Item no.
2007886
Width
205
Height
155
MBP T350
Item no.
2007888
Width
225
Height
140
