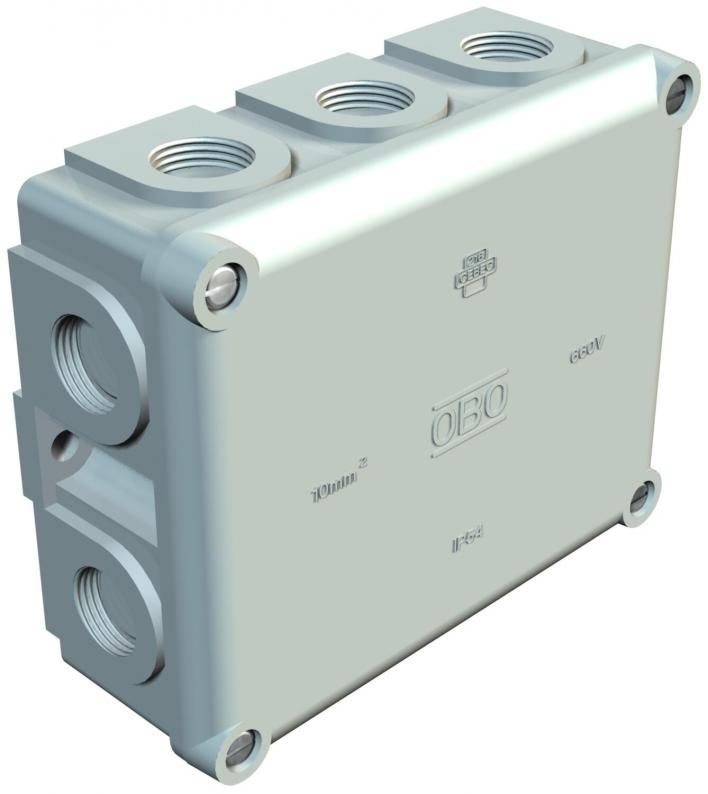

Junction box, B 11 M, with thread

Junction box, B 11 M, with thread

Type B 11 M
Item no. 2002345
EAN 4012195105435
Show all variants
Item no. / Type
Clear internal dimensions
No. of entries

Smallest selling unit: 1 piece

piece

Description

Protection rating IP54, nominal voltage 660 V, nominal cross-section 10 ÷  mm², two fastening holes for screws up to 6 mm Ø on the outside of the box, four cover screws, 10 break-out entries with thread M20 x 1.5, primarily for cable glands with short connecting thread.
Clear internal dimensions: 125x100x44 mm.
B 11 M empty: without earthing terminal
  • Indication of metric products
  • CEBEC, Belgium
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • M20 entry
  • Nominal cross-section 10 mm²
  • 10 cable entries
  • Nominal voltage 660 V
  • CO₂ footprint (PCF)

Technical data

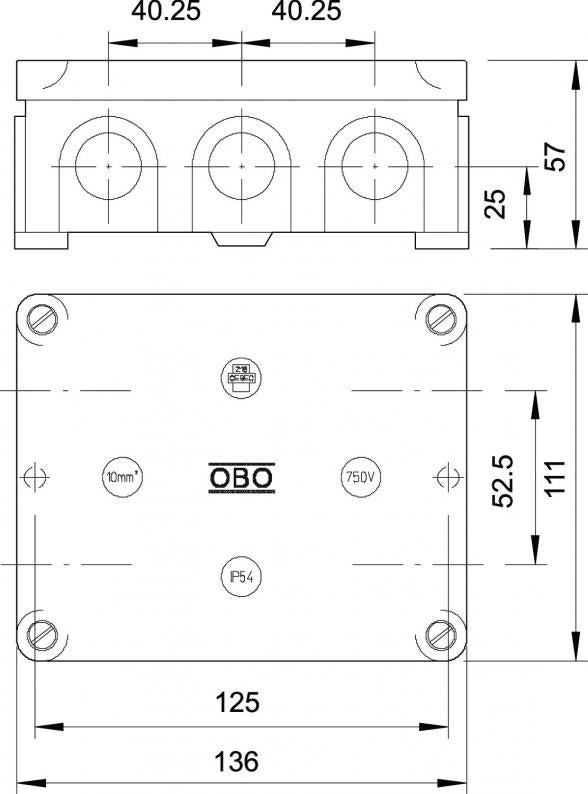

Dimensions

Length111 mm
Width136 mm
Height57 mm
Clear internal dimensions125x100x44 mm

Technical data

Type of entryGland
Impact-resistantno
Halogen-freeyes
No. of entries10
Entry from rearno
Transparent lidno
Protection ratingIP54
Nominal voltage660 V
Expandableno
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi660 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationThread and pre-marking
With screeningno
Weatherproofno
for pipe diameter20 mm
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.10 mm²
ShapeRectangular
CoverNot transparent
Cover fasteningScrewed
ROHS-conformantyes
Flame-resistantAcc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Dimension136x111x57
MaterialDuroplast, Aminoplast Typ 131.5
ColourLight grey; RAL 7035
Product seriesB Series

Environmental Data

0,6625 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,6625 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,6625 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Clear internal dimensions
No. of entries
B 9 B M
Item no.
2001632
Clear internal dimensions
73x73x35
No. of entries
7
Protection rating
IP54
Colour
Light grey; RAL 7035
B 10 M
Item no.
2002167
Clear internal dimensions
80x80x39
No. of entries
7
Protection rating
IP54
Colour
Light grey; RAL 7035
B 11 M
Item no.
2002345
Clear internal dimensions
125x100x44
No. of entries
10
Protection rating
IP54
Colour
Light grey; RAL 7035
B 12 M
Item no.
2002523
Clear internal dimensions
178x126x57
No. of entries
10
Protection rating
IP54
Colour
Light grey; RAL 7035
