Internal corner SL IE2070

Internal corner SL IE2070

Type SL IE2070 cws
Item no. 6132254
EAN 4012196726486
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

Description

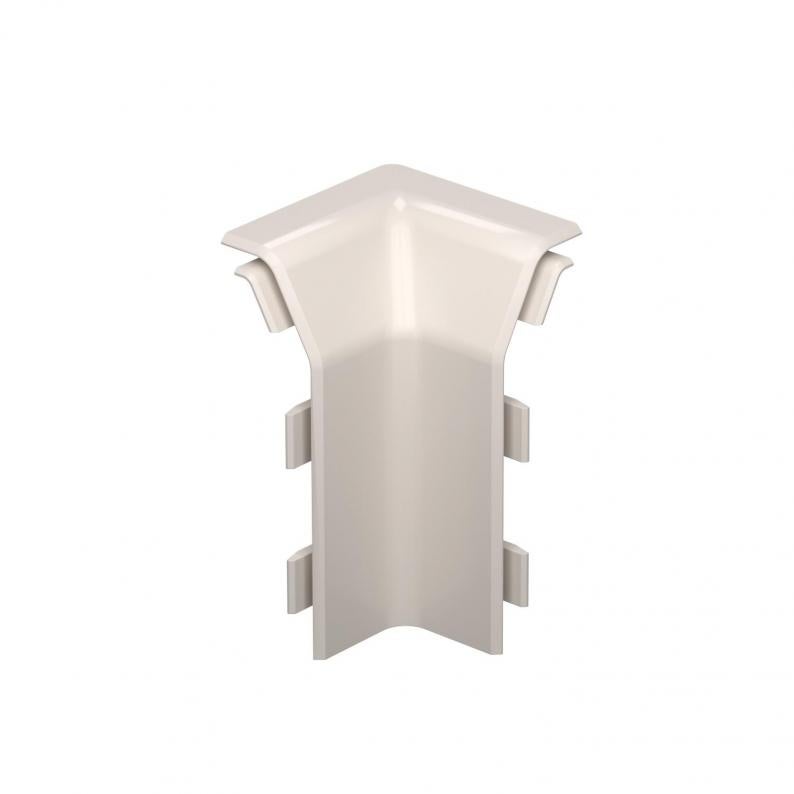

Internal corner as a fitting for changing the direction of the skirting trunking.

Internal corner for snapping on to the base to conceal cuts.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

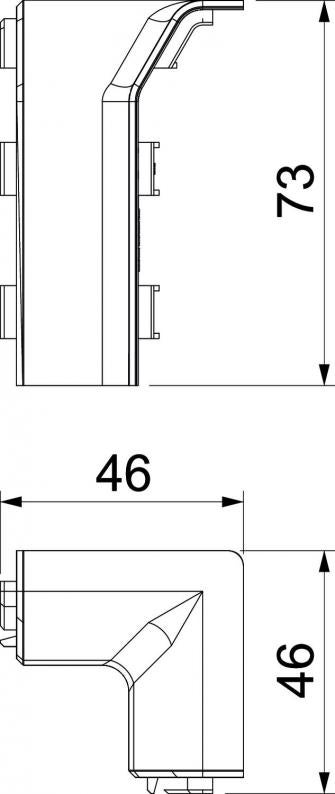

Dimensions

Length46 mm
Width46 mm
Height73 mm

Technical data

Halogen-freeno
Angle range, min.90 mm
DecorationWithout
Protection ratingIP40
With carpet stripno
Cover sealing lipWithout
Protection rating IK codeIK06
Version forHood fitting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourCream; RAL 9001
Product seriesSL Trunking

Environmental Data

0,033 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,033 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,033 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (1)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

SL IE2070 rws
Item no.
6132253
SL IE2070 cws
Item no.
6132254
SL IE2070 lgr
Item no.
6132255
