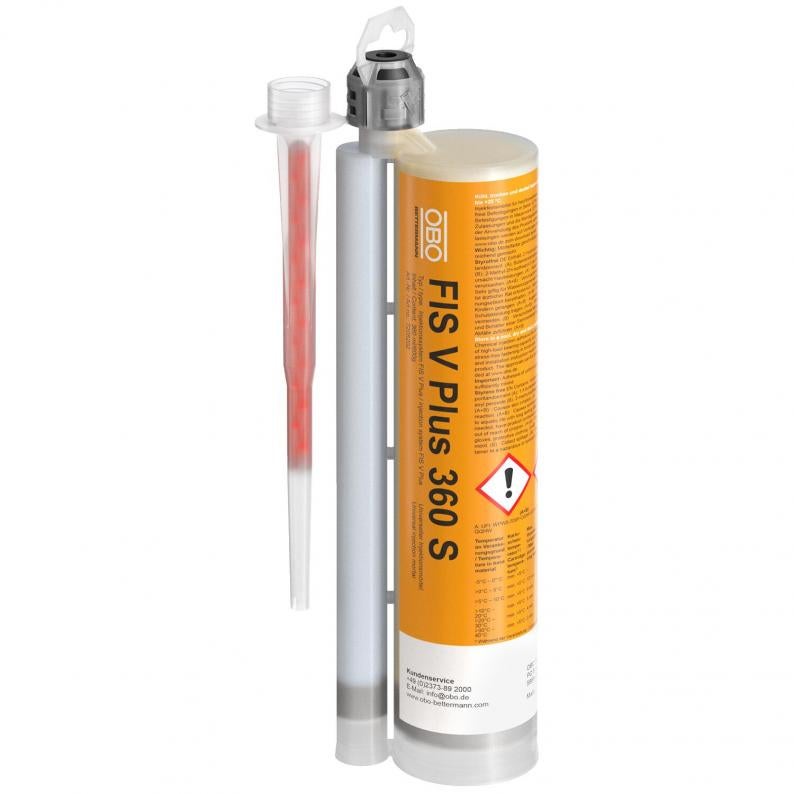

Injection mortar in cartridge 360 ml

Type FIS V Plus 360 S
|
Item no. 7205202
|
EAN 4012197506735
Item no. / Type
7205202 / FIS V Plus 360 S

Smallest selling unit: 1 piece

piece

Description

Styrene-free, vinyl ester composite mortar for spread-free anchoring of high loads with threaded anchor rods. Side-by-side (shuttle) cartridge, including one mixing tube FIS MR P, to be worked with the pressing gun, type FIS DM S Pro.

European Technical Assessment for cracked and uncracked concrete, as well as for masonry. Fire protection characteristic values with transile and transverse loads under fire exposure up to 120 minutes.

Installation temperature during processing ‒10 °C to +40 °C.
The injection mortar hasva European Technical Assessment (ETA) for cracked and uncracked concrete, as well as for masonry of full or hollow brick. The mortar is earthquake-proof according to performance category C1 and approved in terms of fire protection for concrete and masonry with the fire -resistance class up to 120 minutes.
The injection mortar is applied with the pressing gun, type VM-P 345 Profi, or with a standard silicone press.

The substrate temperature during processing must be –10 °C to +40 °C (concrete) and the ambient temperature after complete hardening –40 °C to +120 °C (in concrete).

The mortar will keep for at least 18 months if stored in a dark, cool and dry place.


Technical data

Technical data

Delivery formCartridge
Contents360 ml
Transparentno
Hardening method2-component
Adhesive applicationConstruction/mounting
With brushno
Dimension247,1 x 69,8
MaterialSpecial mortar
ColourGrey / brown

Accessories

System accessories

Item no. 7205220

Anchor rod
Type
FIS A M6x110

Smallest selling unit: 10 piece

piece

Item no. 7205222

Anchor rod
Type
FIS A M8x110

Smallest selling unit: 10 piece

piece

Item no. 7205223

Anchor rod
Type
FIS A M10x110

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (3)
Certificates (3)
Instructions and Aid (1)
Product images (1)
Tender specifications (1)

Variants

FIS V Plus 360 S
Item no.
7205202
