Fastening element for junction boxes to cable trays

Fastening element for junction boxes to cable trays

Type SB BE SW
Item no. 2006292
EAN 4012197464424
Show all variants
Item no. / Type
Width
Height

Smallest selling unit: 10 piece

piece

Description

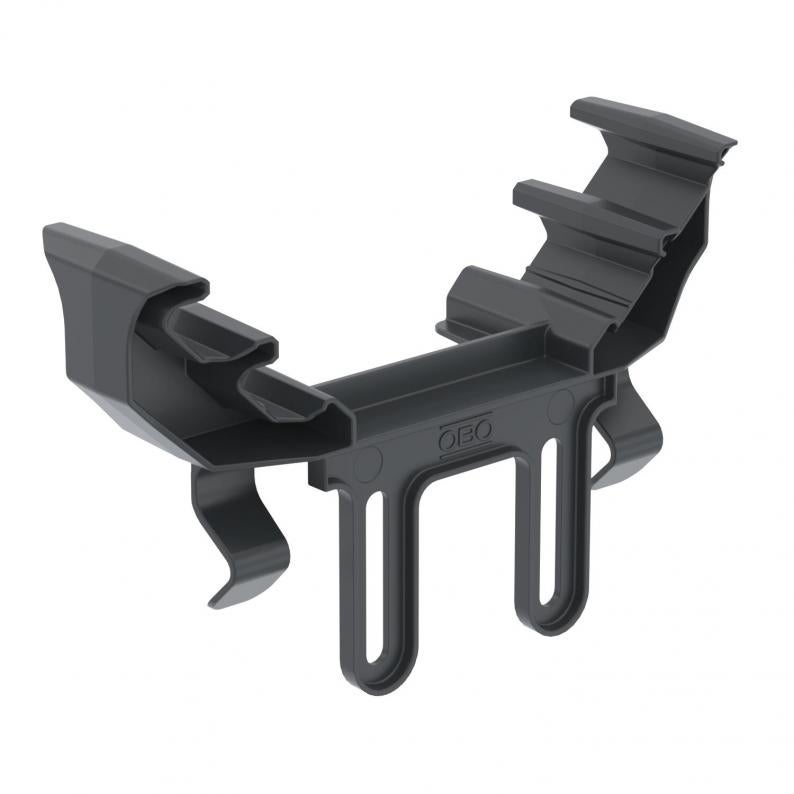

Fastening element for junction boxes (T60 and T100), for mounting on cable trays without tools. Junction boxes, can be mounted on both sides horizontally or vertically

  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Width104 mm
Height139 mm

Technical data

Rustproof steel, pickledno
Fastening typeClamp fastening
Version forHorizontal
ROHS-conformantyes
Dimension165x163x49
MaterialPolypropylene
ColourGraphite black; RAL 9011
Product seriesBlackLine, T series

Environmental Data

Packaging made completely from recycled cardboardyes
Packaging without plasticyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Width
Height
SB BE
Item no.
2006150
Width
163
Height
49
SB BE SW
Item no.
2006292
Width
104
Height
139
