Fastening element for cable junction box on cable trays

Fastening element for cable junction box on cable trays

Type BE TS KR
|
Item no. 2007835
|
EAN 4012195840640
Show all variants
Item no. / Type
2007835 / BE TS KR
Width
104 mm
Height
139 mm

Smallest selling unit: 10 piece

piece

Description

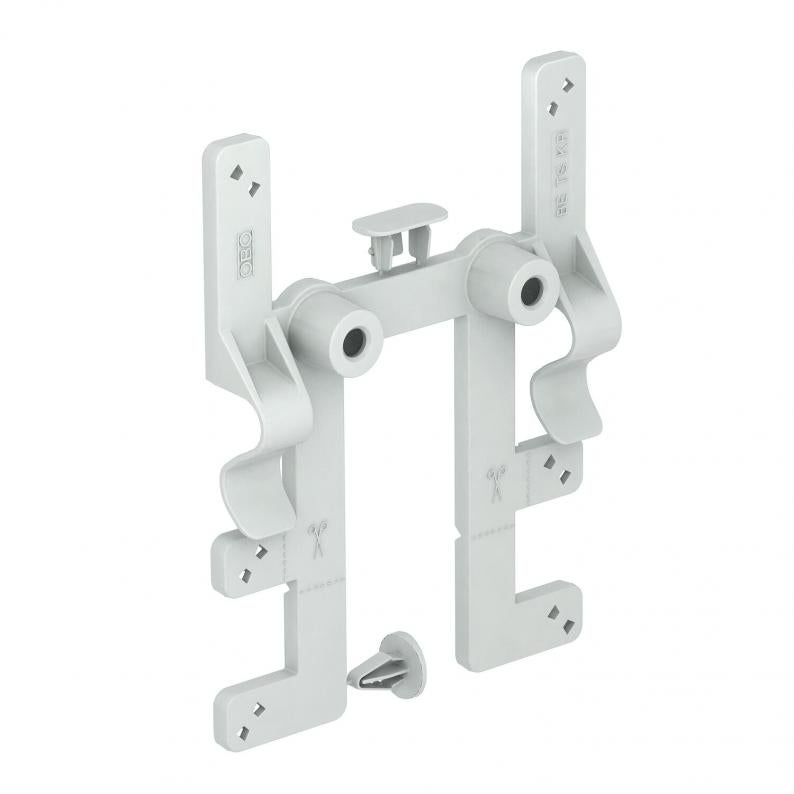

The fastening element BE TS KR can be used to attach OBO junction boxes, type T60 and T100, to all standard cable trays in a few actions, quickly and without tools.
This keeps the junction box securely in position. However, it can be quickly dismantled as necessary. This is all done without using tools.


  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

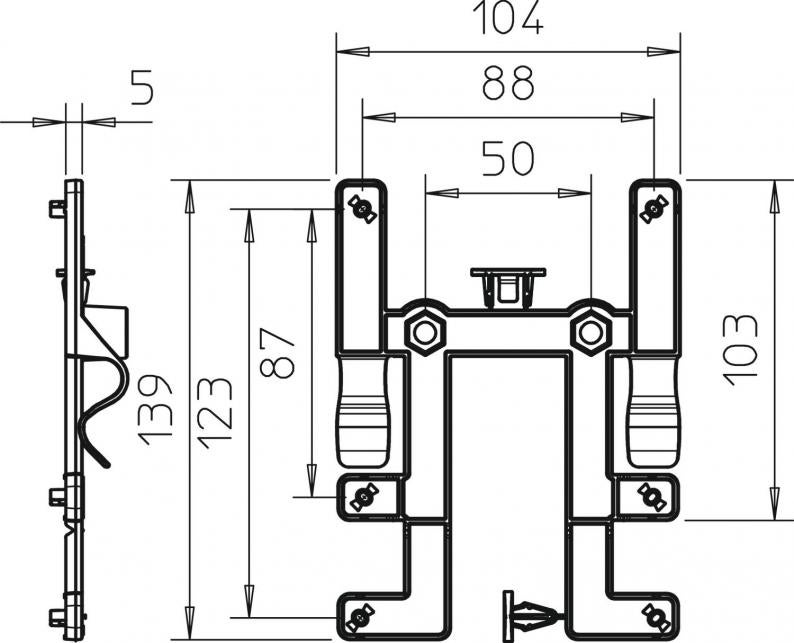

Dimensions

Width104 mm
Height139 mm

Technical data

Rustproof steel, pickledno
Fastening typeClamp fastening
Version forHorizontal
ROHS-conformantyes
MaterialPolycarbonate
ColourLight grey
Product seriesT series

Environmental Data

0,1474 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1474 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1474 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (7)
Declarations (3)
Product images (3)
Tender specifications (1)

Variants

BE TS KR
Item no.
2007835
Width
104
Height
139
