External corner SL AE2070

External corner SL AE2070

Type SL AE2070 lgr
Item no. 6132272
EAN 4012196720859
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

Description

External corner as a fitting for changing the direction of the skirting trunking.

External corner for snapping on to the base to conceal cuts.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

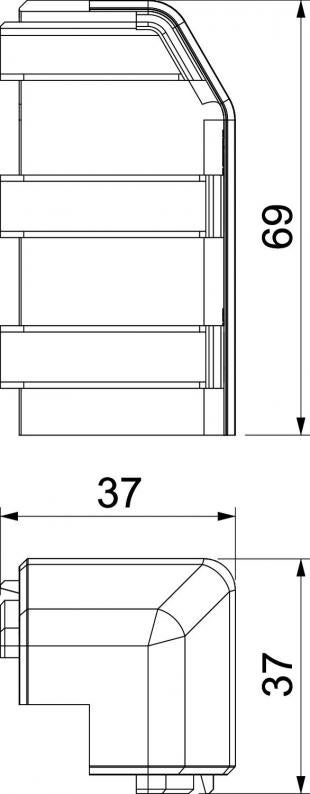

Dimensions

Length37 mm
Height69 mm

Technical data

Halogen-freeno
Angle range, min.90 mm
DecorationWithout
Protection ratingIP40
With carpet stripno
Cover sealing lipWithout
Protection rating IK codeIK06
Version forHood fitting
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourLight grey; RAL 7035
Product seriesSL Trunking

Environmental Data

0,0494 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0494 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0494 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

SL AE2070 rws
Item no.
6132270
SL AE2070 cws
Item no.
6132271
SL AE2070 lgr
Item no.
6132272
