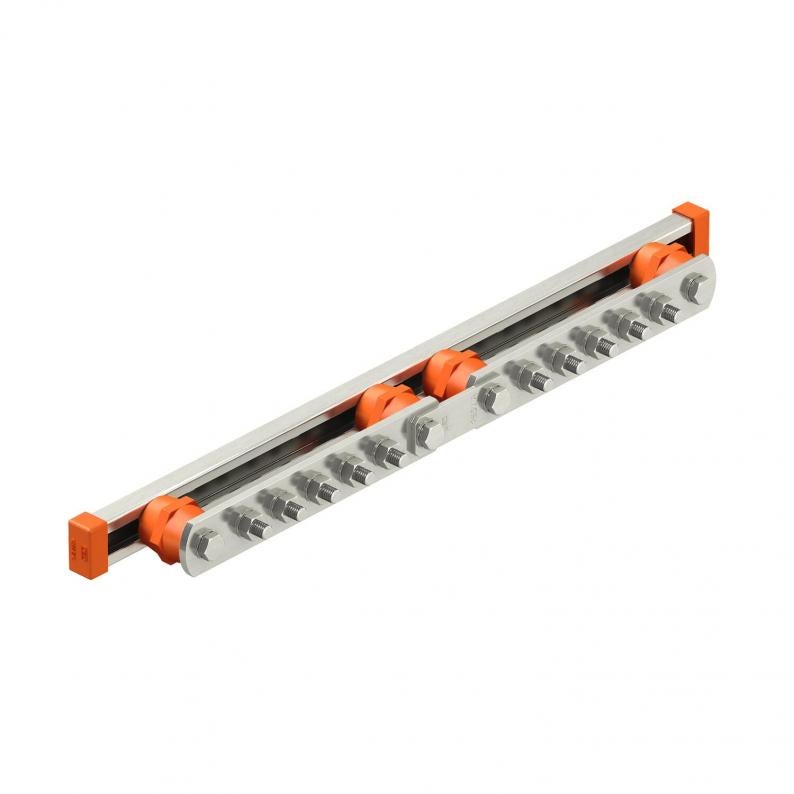

Equipotential busbar for flexible wall mounting with separation point
Type 1802 DC 5+5 VA
Item no. 5015876
EAN 4012196681938
Item no. / Type
Length
Width
Height
Number of connections
Smallest selling unit: 1 piece
1piece
piece
Description
Main equipotential busbar for equipotential bonding to VDE 0100 Part 410/-540 and
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• With separation point (Disconnect - DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Rust-proof stainless steel versions (V2A) are suitable for outdoor use
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• With separation point (Disconnect - DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Rust-proof stainless steel versions (V2A) are suitable for outdoor use
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening
Technical data

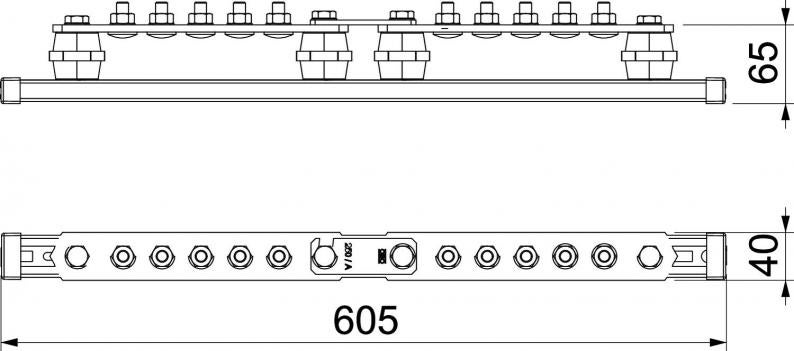

Dimensions
| Length | 605 mm |
|---|---|
| Width | 40 mm |
| Height | 85 mm |
Technical data
| Number of connections | 10 |
|---|---|
| Insulator | yes |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 0 |
| Quantity of flat conductor connections up to 30 mm | 0 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 0 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Rustproof steel (V2A) |
| Material of the terminal | Rustproof steel (V2A) |
| Version for | Only terminal |
| Lightning current carrying capacity | H/100 kA |
| ROHS-conformant | yes |
| Type | Modular structure |
| Dimension | 5+5 x M10 |
| Material | Stainless steel 1.4301 |
Environmental Data
9,7349 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 9,7349 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 9,7349 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
