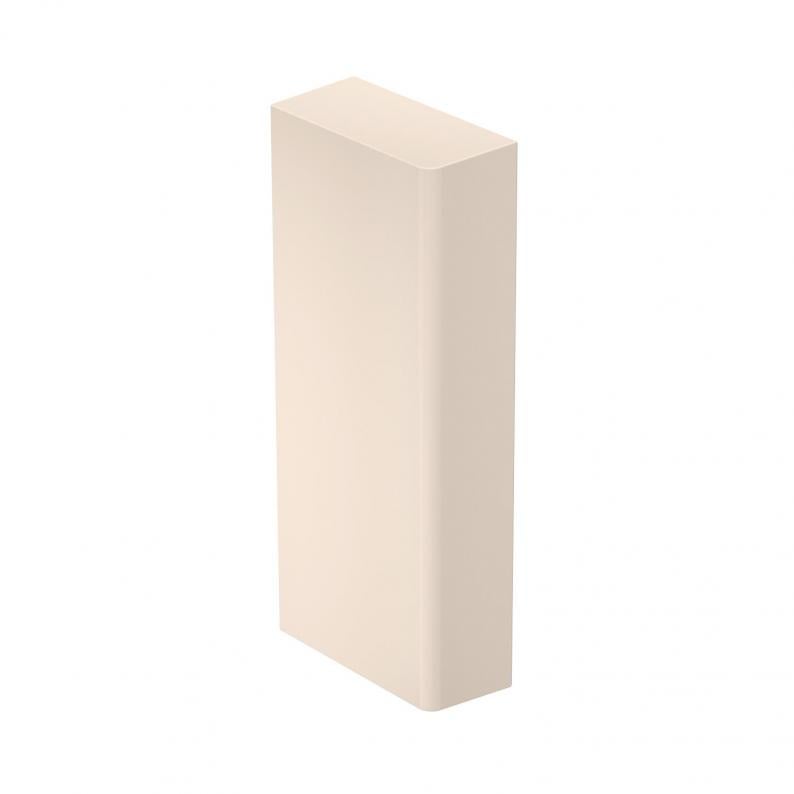

End piece Signa Base ES 70170

End piece Signa Base ES 70170

Type BRK ES70170 cws
Item no. 6132780
EAN 4012196721887
Show all variants
Item no. / Type
Colour

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

End piece as a fitting for the Signa Base device installation trunking.

For a clean end to the trunking system.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

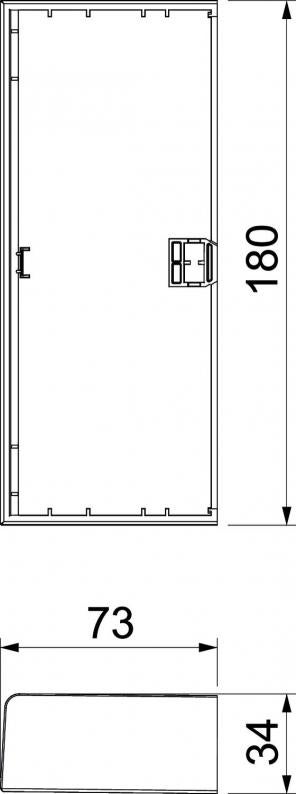

Dimensions

Length34 mm
Width180 mm
Height73 mm

Technical data

Halogen-freeyes
Protective filmno
Cut laminationyes
Protection ratingIP40
Protection rating IK codeIK07.
for duct width170 mm
for trunking height70 mm
Version forSymmetrical
Fastening typeLockable
Suitable forLeft/right
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourCream; RAL 9001
Antibacterial treatmentno
Product seriesSigna Base

Environmental Data

0,4112 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate0,4112 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,4112 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
BRK ES70170 cws
Item no.
6132780
Colour
Cream; RAL 9001
BRK ES70170 rws
Item no.
6132781
Colour
Pure white; RAL 9010
BRK ES70170 lgr
Item no.
6132782
Colour
Light grey; RAL 7035
