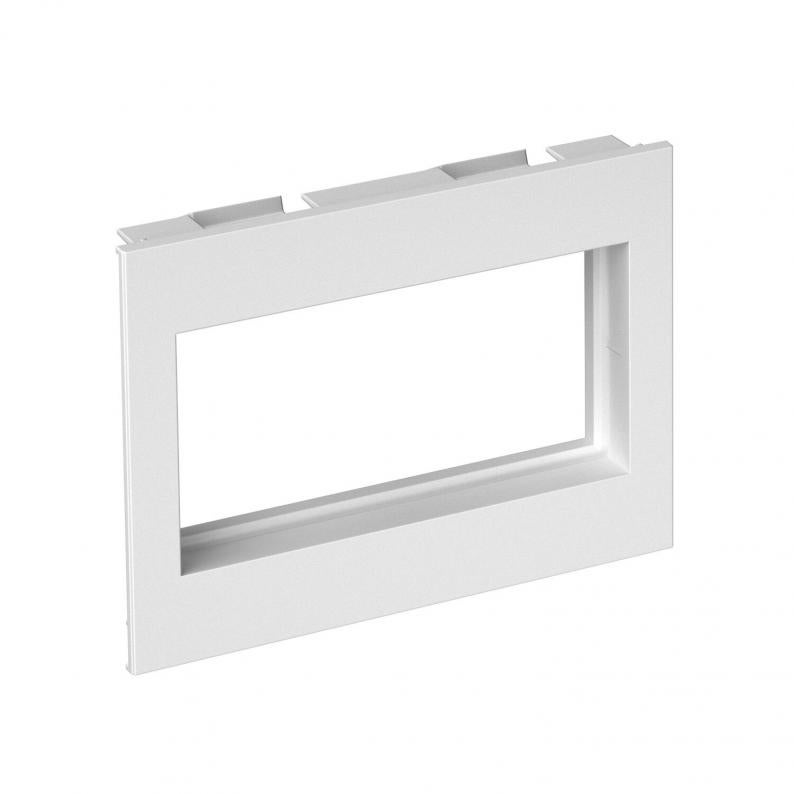

Double frame BRK
Type BRK CF2 M45 agr
Item no. 6121107
EAN 4012196749768
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description
Frame for Modul 45 locking connection (to accept the support plate for Keystone modules).
Technical data
Dimensions
| Width | 110 mm |
|---|---|
| Height | 79 mm |
Technical data
| Hinged cover | no |
|---|---|
| Text field/inscription field | no |
| Halogen-free | yes |
| Number of units | 2 |
| Protection rating | IP20 |
| Suitable for flush-mounted installations | no |
| Suitable for underfloor duct socket | no |
| Suitable for device installation ducts | yes |
| Suitable for built-in installations | no |
| Flush-mounted version | no |
| Depth | 28 mm |
| Concealed | no |
| Surface version | Matt |
| Mounting direction | Horizontal and vertical |
| Einbaubreite | 90 mm |
| Installation height | 45 mm |
| Transparent | no |
| Number of units, horizontal | 2 |
| Anzahl der Einheiten vertikal | 2 |
| Fastening type | Clamp fastening |
| ROHS-conformant | yes |
| Dimension | 130x80x22 |
| Material | Polypropylene |
| Colour | Anthracite grey; RAL 7016 |
| Antibacterial treatment | no |
| With mounting frame | no |
| Diameter opening | 0 |
| Product series | SIGNA IN |
Environmental Data
0,1749 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1749 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1749 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
