Cover Signa Base OT 700802

Cover Signa Base OT 700802

Type BRK 700802 cws
Item no. 6132735
EAN 4012196717866
Show all variants
Item no. / Type
Length
Colour

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 2 m

m

Description

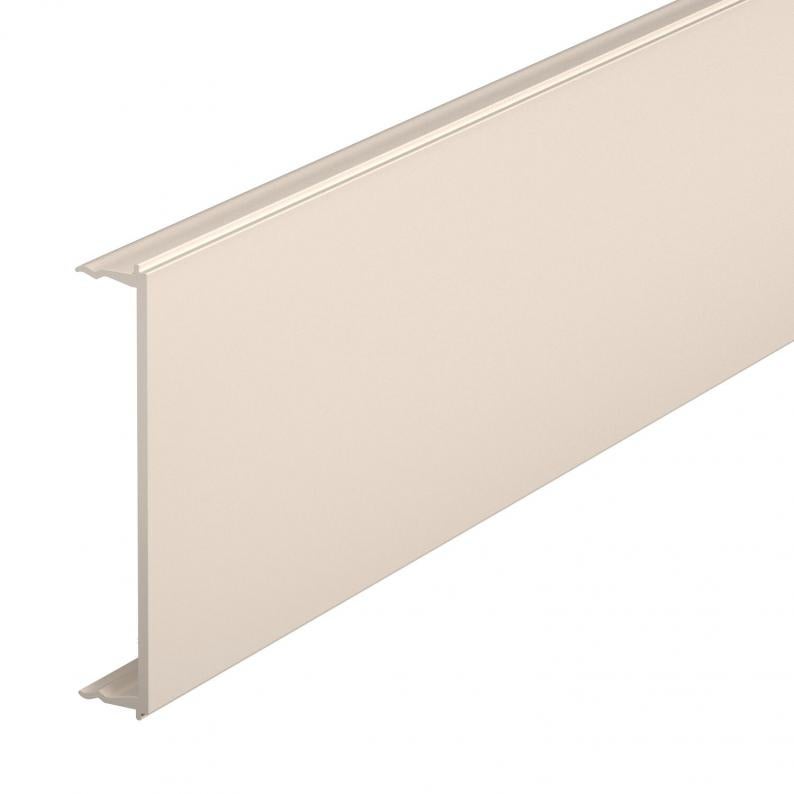

Cover for closing the Signa Base device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

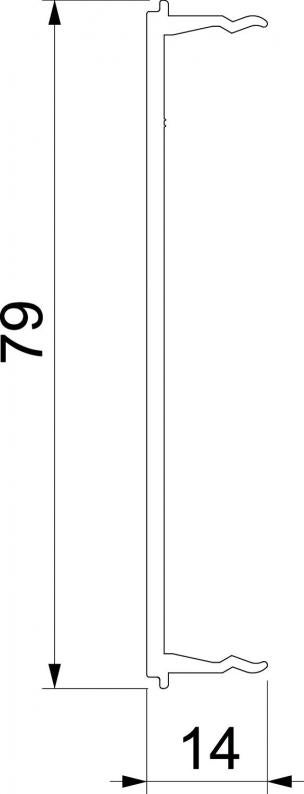

Dimensions

Length2000 mm
Width79,4 mm
Height14 mm

Technical data

Halogen-freeno
Protective filmyes
Protection ratingIP40
Cover mounting typeInternal
Protection rating IK codeIK07.
Version forMiscellaneous
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourCream; RAL 9001
Antibacterial treatmentno
Product seriesSigna Base

Environmental Data

0,5231 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,5231 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,5231 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
BRK 700802 cws
Item no.
6132735
Length
2000
Colour
Cream; RAL 9001
BRK 700802 rws
Item no.
6132736
Length
2000
Colour
Pure white; RAL 9010
BRK 700802 lgr
Item no.
6132737
Length
2000
Colour
Light grey; RAL 7035
