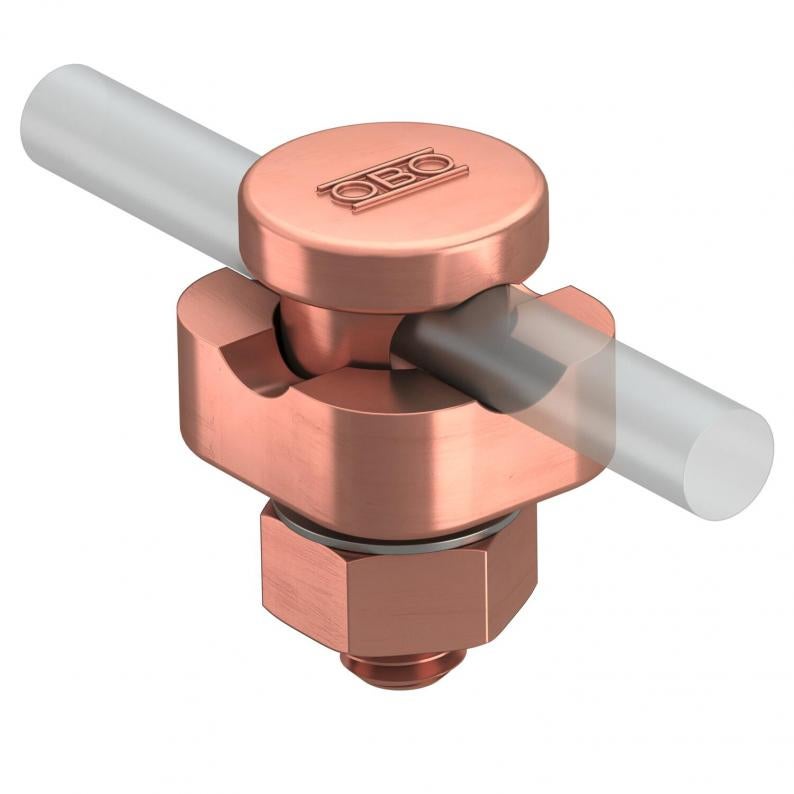

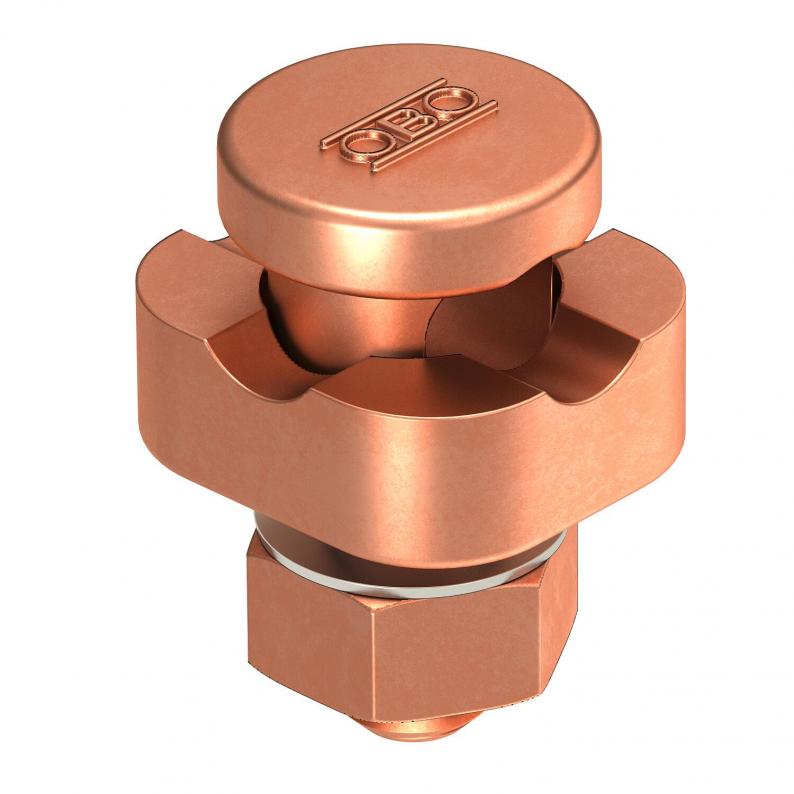

Connector Rd 8−10 mm, single, copper

Type 5001 ZN-CU
Item no. 5304113
EAN 4012195415930
Item no. / Type
5304113 / 5001 ZN-CU
Fit
Rd 8-10 mm

Smallest selling unit: 10 piece

piece

Description

• With Fix-Kontakt clamping screw, nut and serrated washer
• With 10.2 mm drill hole
• With pre-mounted thrust piece made of die-cast zinc
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length28 mm
Width25 mm
Height38 mm

Technical data

Intermediate plateno
Type of fastening screwClamping screw
Type of connectorConnectors
Suitable for connectionMiscellaneous
Lightning current carrying capacityH/100 kA
ROHS-conformantyes
FitRd 8-10 mm
Dimension8-10mm
SurfaceCopper-plated
MaterialDie-cast zinc

Environmental Data

0,0144 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0144 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0144 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
