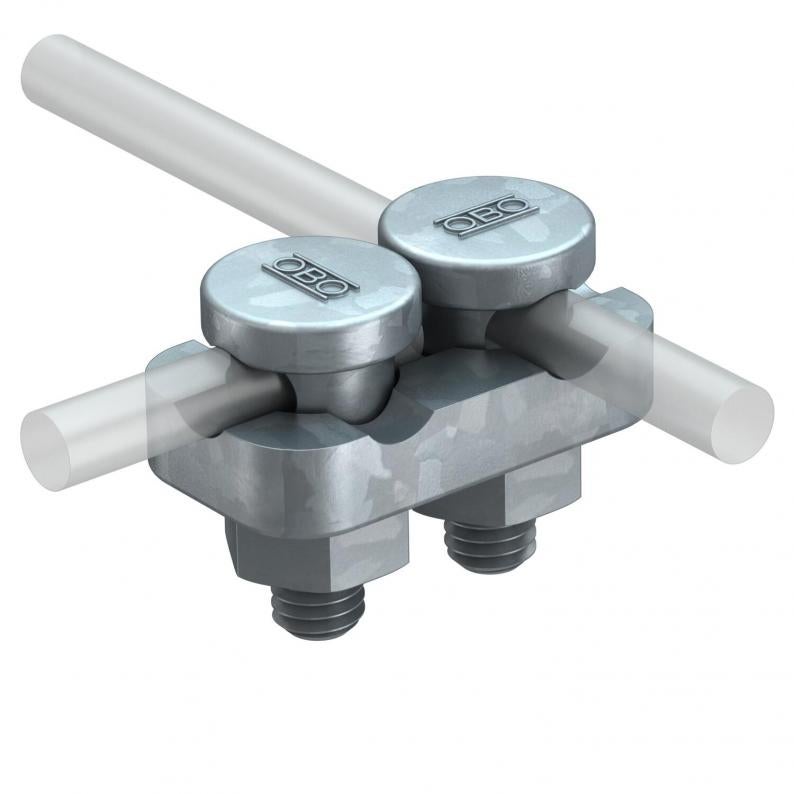

Connector Rd 8−10 mm, double

Type 5002 DIN-FT
Item no. 5304202
EAN 4012195416050
Item no. / Type
5304202 / 5002 DIN-FT
Fit
Rd 8-10 mm

Smallest selling unit: 20 piece

piece

Description

• With 2 fix contact clamping screws, nut and serrated washer
• Including pre-mounted connecting pressure piece, die-cast zinc or copper-plated die-cast zinc
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length25 mm
Width50 mm
Height38 mm

Technical data

Intermediate plateno
Type of fastening screwClamping screw
Type of connectorConnectors
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
Lightning current carrying capacityH/100 kA
ROHS-conformantyes
FitRd 8-10 mm
Dimension8-10mm
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

0,535 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,535 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,535 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

5002 DIN-FT
Item no.
5304202
Fit
Rd 8-10
