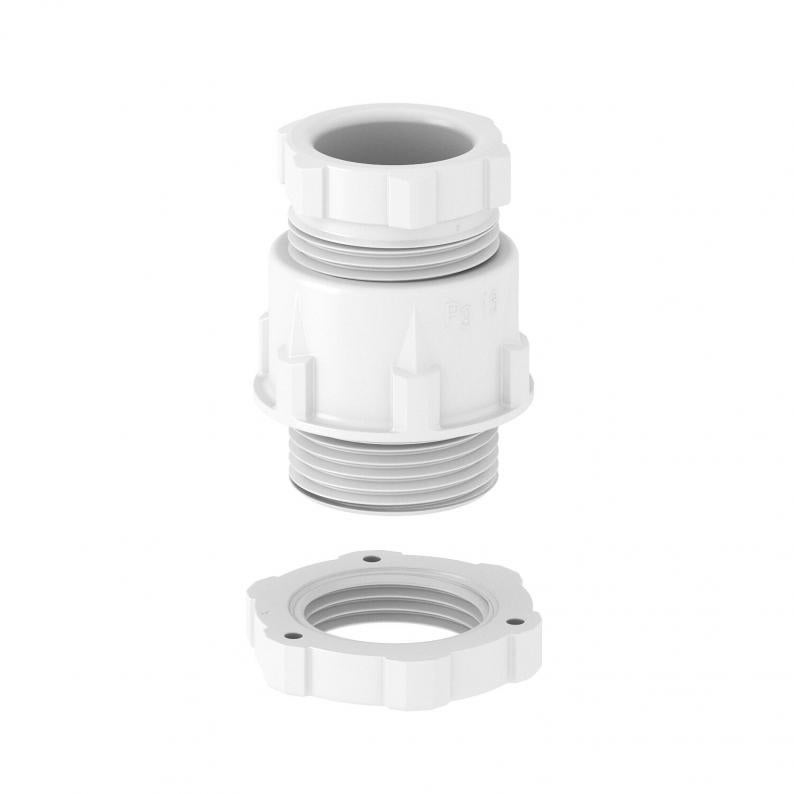

Cone cable gland, PG thread, light grey

Cone cable gland, PG thread, light grey

Type 106+PG42 MG LGR
Item no. 2038444
EAN 4012196688890
Show all variants
Item no. / Type
Thread

Smallest selling unit: 5 piece

piece

Description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430

Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Dimension D265 mm
Dimension D344,5 mm
Dimension L min.8 mm
Dimension L max.48 mm
Dimension L113 mm
Dimension L227 mm
Dimension L39 mm
Dimension L418,5 mm
Dimension D440,5 mm
Dimension E373 mm

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionno
Protection ratingIP65
ThreadPg42
For Ex zoneWithout
Thread typePG
Bend protectionno
With locknutno
Sealing insert, multipleno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Nominal thread size42
Sealing area D, min.30 mm
Sealing area D, max.38 mm
Dimension E1 (mm)65 mm
Dimension E244,8 mm
Version forStraight
ROHS-conformantyes
WAF 160 mm
WAF 255 mm
WAF 365 mm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.65 °C
DimensionPG42
MaterialPolystyrene
ColourLight grey; RAL 7035
Product seriesV-TEC

Environmental Data

0,3894 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,3894 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,3894 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
Tender specifications (1)

Variants

Thread
106+PG09 MG LGR
Item no.
2038430
Thread
Pg 9
106+PG11 MG LGR
Item no.
2038432
Thread
Pg 11
106+PG13 MG LGR
Item no.
2038434
Thread
Pg 13,5
106+PG16 MG LGR
Item no.
2038436
Thread
Pg 16
106+PG21 MG LGR
Item no.
2038438
Thread
Pg 21
106+PG29 MG LGR
Item no.
2038440
Thread
Pg 29
106+PG36 MG LGR
Item no.
2038442
Thread
Pg 36
106+PG42 MG LGR
Item no.
2038444
Thread
Pg42
106+PG48 MG LGR
Item no.
2038446
Thread
Pg 48
