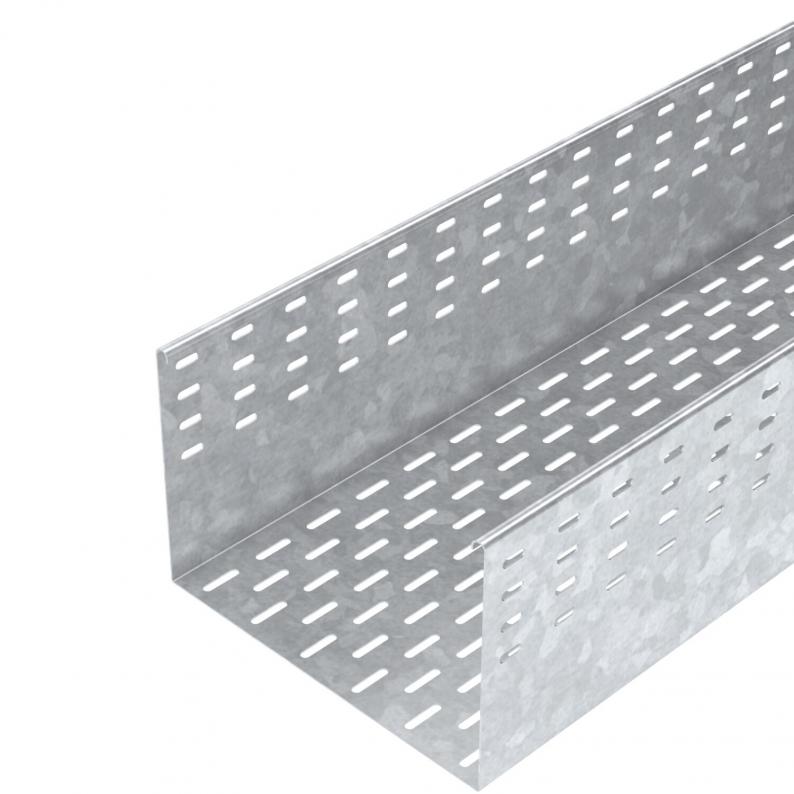

Cable tray MFR 200 FT

Cable tray MFR 200 FT

Type MFR 230 FT
Item no. 6083060
EAN 4012196947713
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

m

Description

MFR = mobile radio tray

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width300 mm
Height200 mm
Dimension B300 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section600 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section60000 mm²
With coverno
Dimension200 x 300
ROHS-conformantyes
Dimension200x300x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
Product seriesMFR Series

Environmental Data

18,5671 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate18,5671 kg CO2e / 1 Meter
CO₂ Footprint (GWP)18,5671 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Type
LWVM 200 FT

Smallest selling unit: 2 piece

piece

Type
DMFR 300 FT

Smallest selling unit: 3 m

m

Item no. 7070318

Joint plate DD
Type
SSLB 300 DD

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)

Variants

Width
MFR 220 FT
Item no.
6083056
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
MFR 230 FT
Item no.
6083060
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
MFR 240 FT
Item no.
6083064
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
