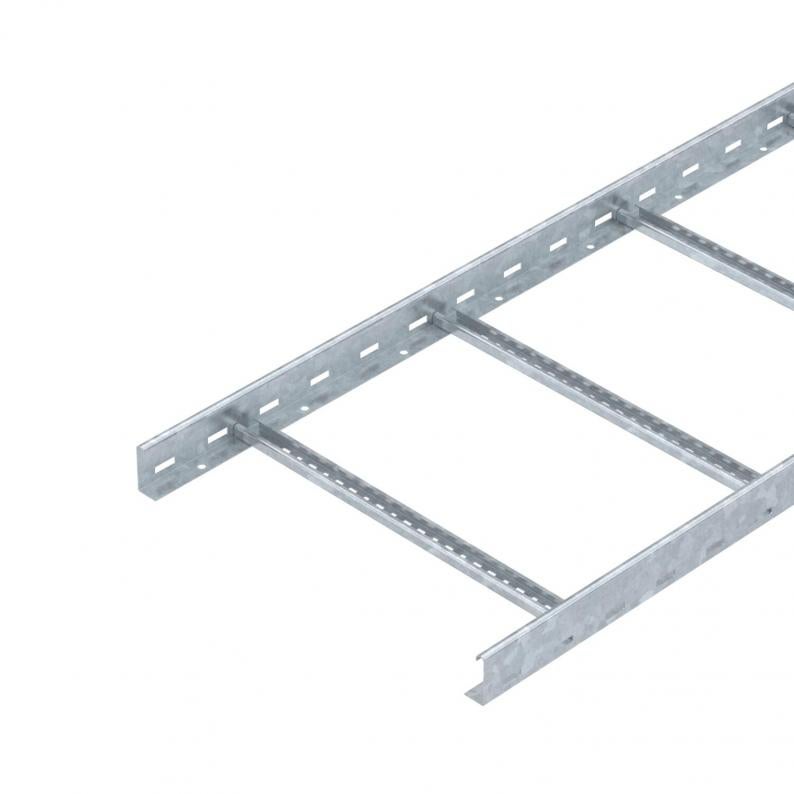

Cable ladder LG 60, 6 m VS FT SOMY

Cable ladder LG 60, 6 m VS FT SOMY

Type LG 650 VS 6 FTSO
Item no. 7188640
EAN 4012195020875
Show all variants
Item no. / Type
Length
Width
Rail thickness

Smallest selling unit: 6 m

m

Description

Cable ladder with 60 mm side height with riveted C profile rungs which are open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

The cable ladder is shipped folded up. Matching clamp clip, type 2056 H foot, type BS-H... The surface coating is a coating created in a single-dip method with extra-high zinc thicknesses.

  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
  • Slot width 16–17 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length6000 mm
Width500 mm
Height60 mm
Dimension B500 mm
Rung slot dimension16,50

Technical data

Maintain electrical functionsno
Side perforationyes
Wide-span versionno
Usable cross-section248 cm²
Rustproof steel, pickledno
Usable cross-section24800 mm²
Rung distance300 mm
Version of the rungsProfile perforated
Side rail versionFlat profile
Fastening of rungBlind riveted
ROHS-conformantyes
Rail thickness1,5 mm
Dimension60x500x6000
SurfaceHot-dip galvanised 85 µm
MaterialSteel
Colourzinc
Product seriesLG Series

Loads

Support spacing 1.5 m3,1 kN/m
Support spacing 2.0 m2,25 kN/m
Support spacing 2.5 m1,5 kN/m
Support spacing 3.0 m1,1 kN/m
Support spacing 3.5 m0,75 kN/m
Support spacing 4.0 m0,45 kN/m
Support spacing 4.5 m0,3 kN/m
Support spacing 5.0 m0,15 kN/m

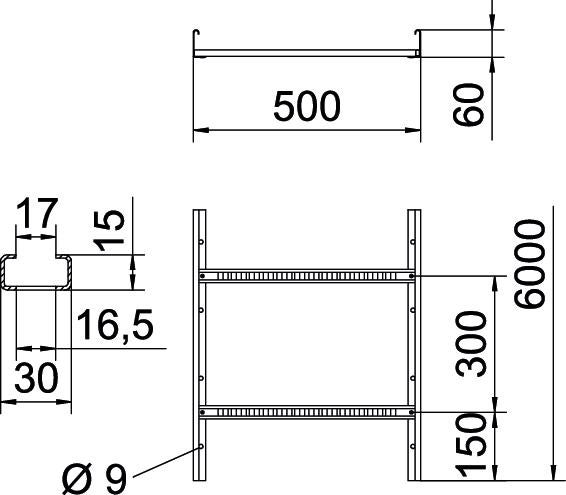

Load diagram, cable ladder, type LG 60 VS

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Environmental Data

8,0245 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate8,0245 kg CO2e / 1 Meter
CO₂ Footprint (GWP)8,0245 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

System accessories
Type
DRL 500 FT SO

Smallest selling unit: 3 m

m

Type
LVG 60 FT SO

Smallest selling unit: 20 piece

piece

Type
LGVG 60 FT SO

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)
