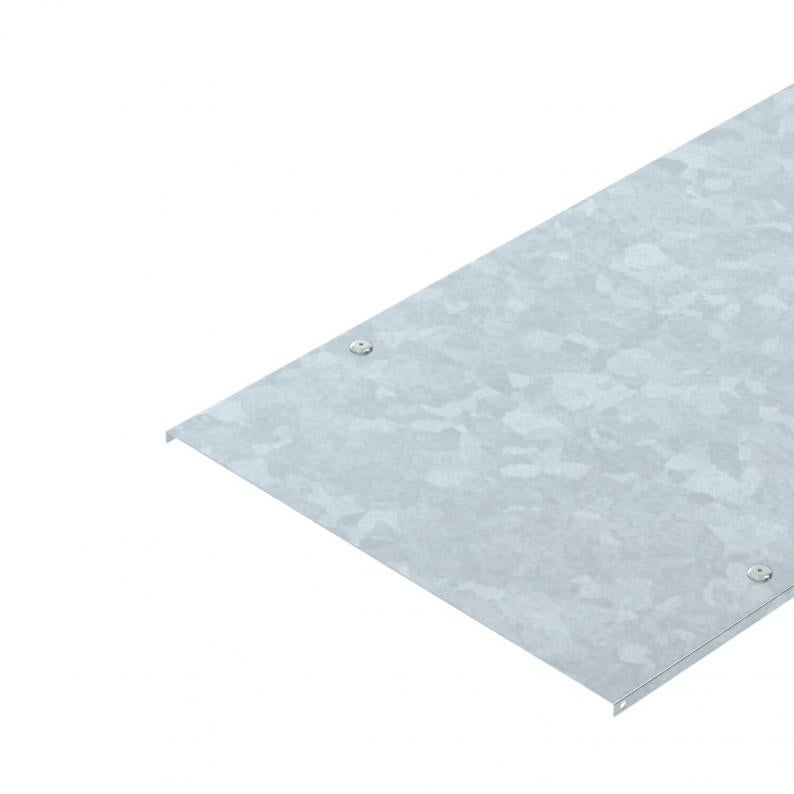

Cover with turn buckle FT SOMY

Cover with turn buckle FT SOMY

Type DRL 500 FT SO
Item no. 7196045
EAN 4012195652427
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

m

Description

Cover for cable trays and cable ladders with three pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width500 mm
Height13 mm
Dimension B500 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1 mm
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayyes
Fastening typeSash lock
ROHS-conformantyes
Dimension500x3000
SurfaceHot-dip galvanised 85 µm
MaterialSteel
Colourzinc

Environmental Data

14,4474 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate14,4474 kg CO2e / 1 Meter
CO₂ Footprint (GWP)14,4474 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Declarations (4)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Width
DRL 200 FT SO
Item no.
7196035
Length
3000
Width
200
Plate thickness
1
DRL 300 FT SO
Item no.
7196037
Length
3000
Width
300
Plate thickness
1
DRL 400 FT SO
Item no.
7196039
Length
3000
Width
400
Plate thickness
1
DRL 500 FT SO
Item no.
7196045
Length
3000
Width
500
Plate thickness
1
DRL 600 FT SO
Item no.
7196061
Length
3000
Width
600
Plate thickness
1
DRL 150 FT SO
Item no.
7196034
Length
3000
Plate thickness
1
