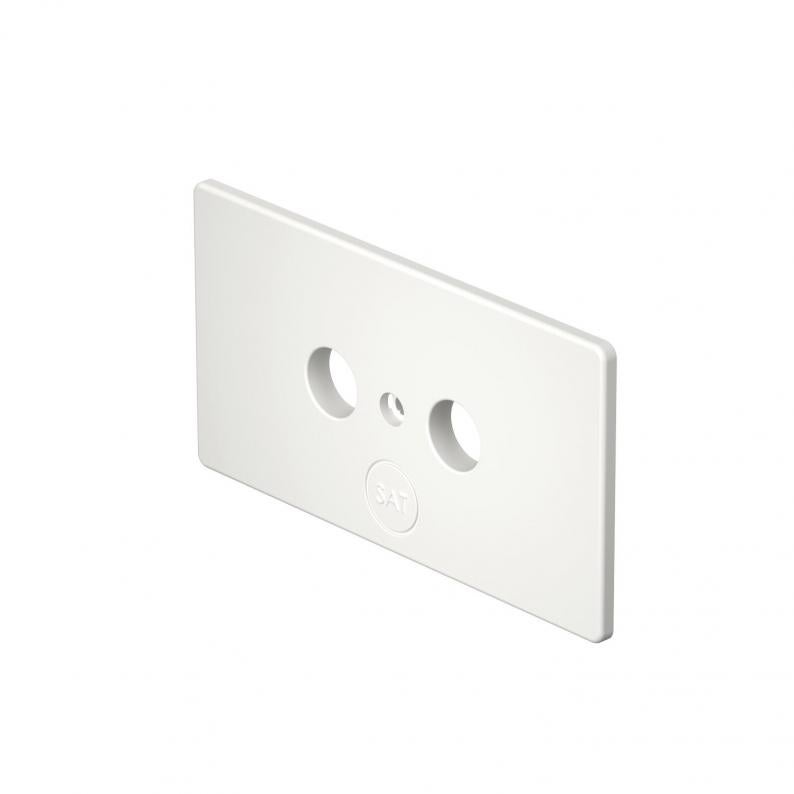

Antenna socket panel SL BL ANT

Antenna socket panel SL BL ANT

Type SL BL ANT rws
Item no. 6132258
EAN 4012196720781
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Antenna cover for the installation of antenna sockets in the device support of the skirting trunking. Cover for antenna socket.

For side closing of the device support.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

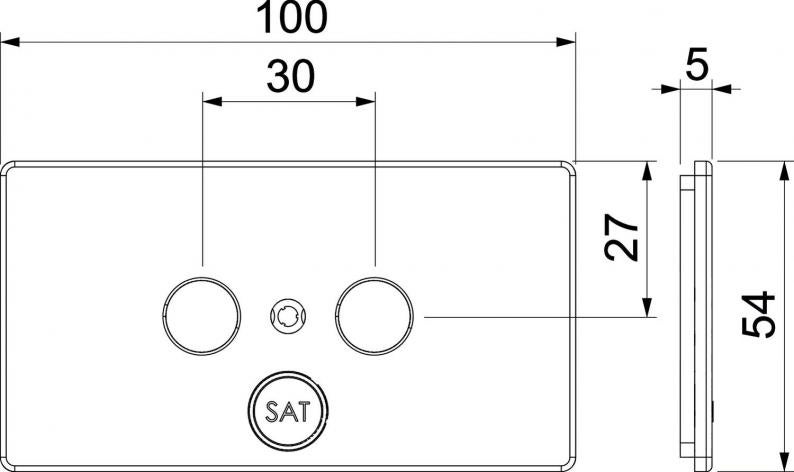

Dimensions

Length100 mm
Width54 mm
Height5 mm

Technical data

Halogen-freeno
Protection ratingIP40
Protection rating IK codeIK06
ROHS-conformantExempt
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Product seriesSL Trunking

Environmental Data

0,1251 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1251 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1251 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
SL BL ANT cws
Item no.
6132195
Colour
Cream; RAL 9001
SL BL ANT rws
Item no.
6132258
Colour
Pure white; RAL 9010
