Add-on tee 35 FS

Add-on tee 35 FS

Type RAA 330 FS
Item no. 6042105
EAN 4012197337131
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

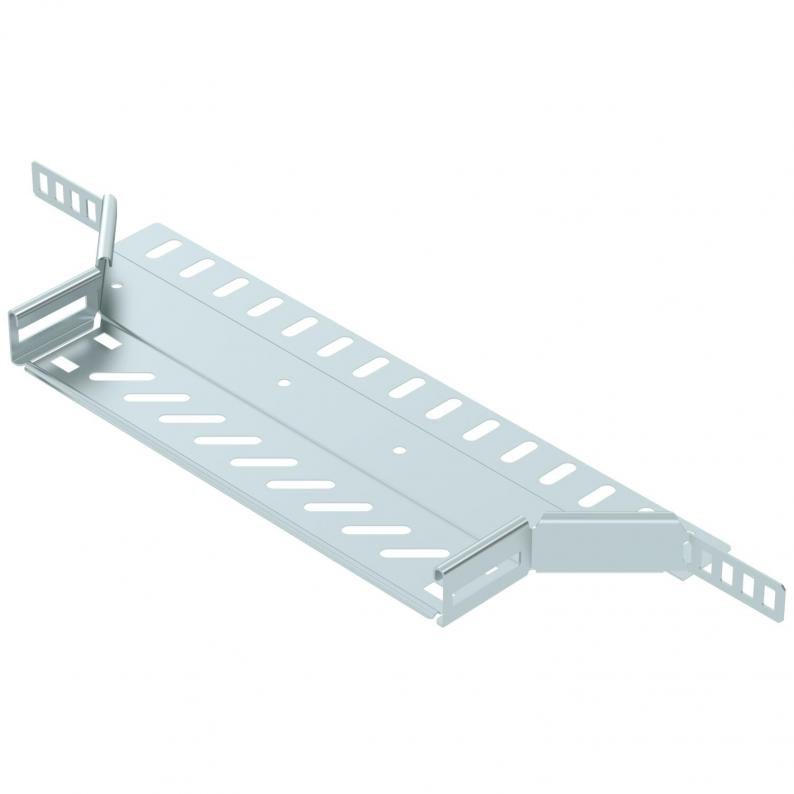

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width300 mm
Height35 mm
Dimension B300 mm
Dimension R50 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Departing width300 mm
ROHS-conformantyes
Rail thickness1,25 mm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.120 °C
Dimension35x300
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
Recommended quantity of bolts10 St.
Product seriesMKS Series, RKSM Series

Environmental Data

1,3067 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,3067 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,3067 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

System accessories

Item no. 6042407

Cover for add-on tee FS
Type
RAAD 300 FS

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RAA 310 FS
Item no.
6042101
Width
100
Colour
zinc
RAA 320 FS
Item no.
6042103
Width
200
Colour
zinc
RAA 330 FS
Item no.
6042105
Width
300
Colour
zinc
